Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions and Notices.
  1. Install the recirculation actuator.
  2. Install the recirculation actuator retaining screws. Tighten:  Tighten the screws to 1.4 N.m (12 lb in).
  3. Connect the electrical connector to the recirculation actuator.

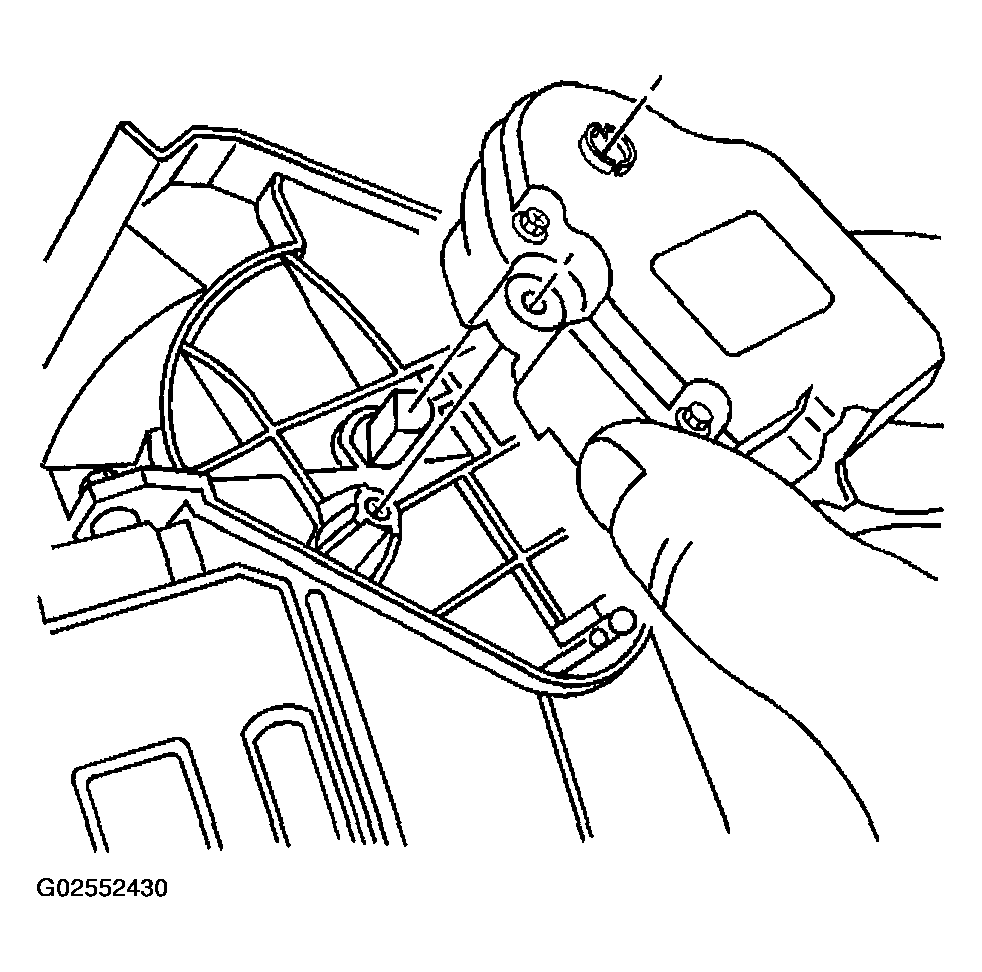

    4. Fig 1: Installing Recirculation Actuator
    G02552430Courtesy of GENERAL MOTORS CORP.
  4. Position the DIM module bracket to its original position.
  5. Install the rear 2 DIM module bracket retaining screws. Tighten:  Tighten the fasteners to 1.4 N.m (12 lb in).
  6. Install the DIM module into the bracket.
  7. Install the IP retainer. Refer to INSTRUMENT PANEL (I/P) RETAINER REPLACEMENT in Instrument Panel, Gages and Console.
  8. Recalibrate the actuators. Refer to RE-CALIBRATING ACTUATORS  .

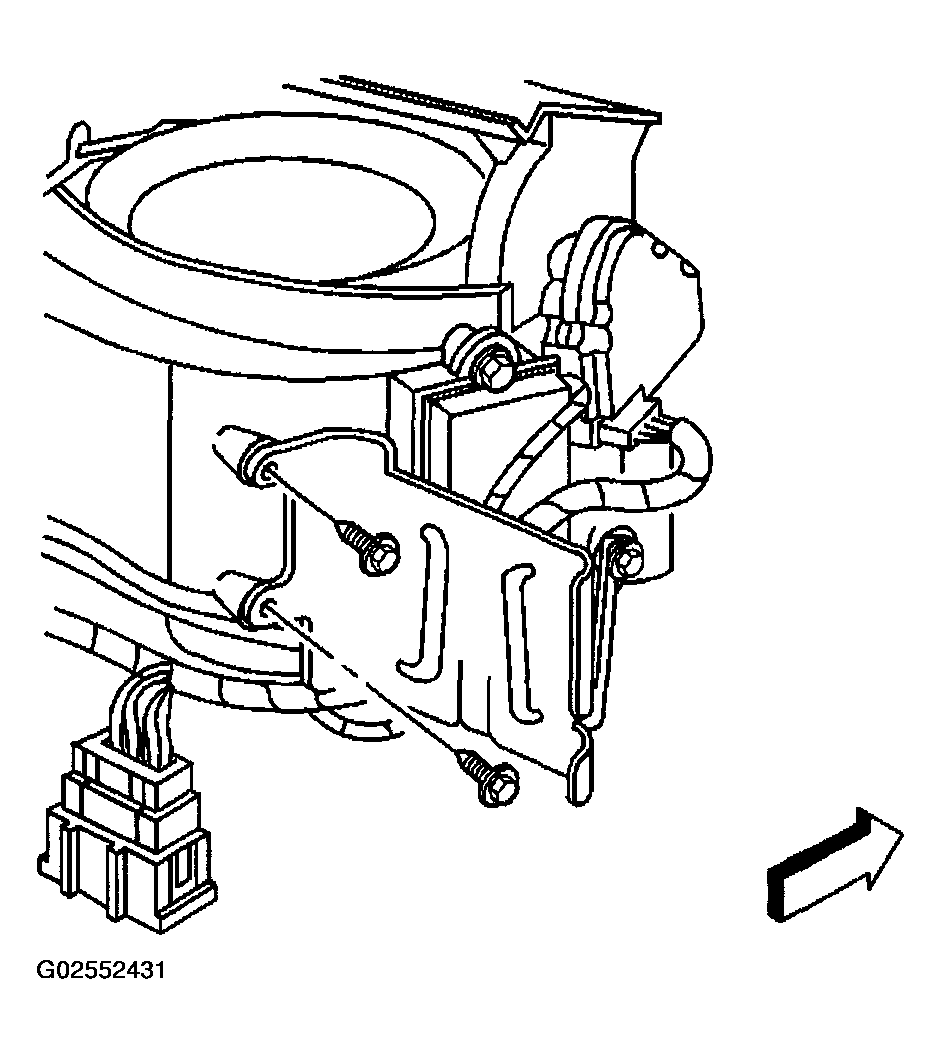

    9. Fig 2: Locating Rear Two DIM Module Bracket Screws
    G02552431Courtesy of GENERAL MOTORS CORP.
