Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Install the sunload sensor assembly.
Connect the electrical connector to the sunload sensor assembly (2).
Install the defroster grille (1). Refer to DEFROSTER GRILLE REPLACEMENT in Instrument Panel, Gages and Console.

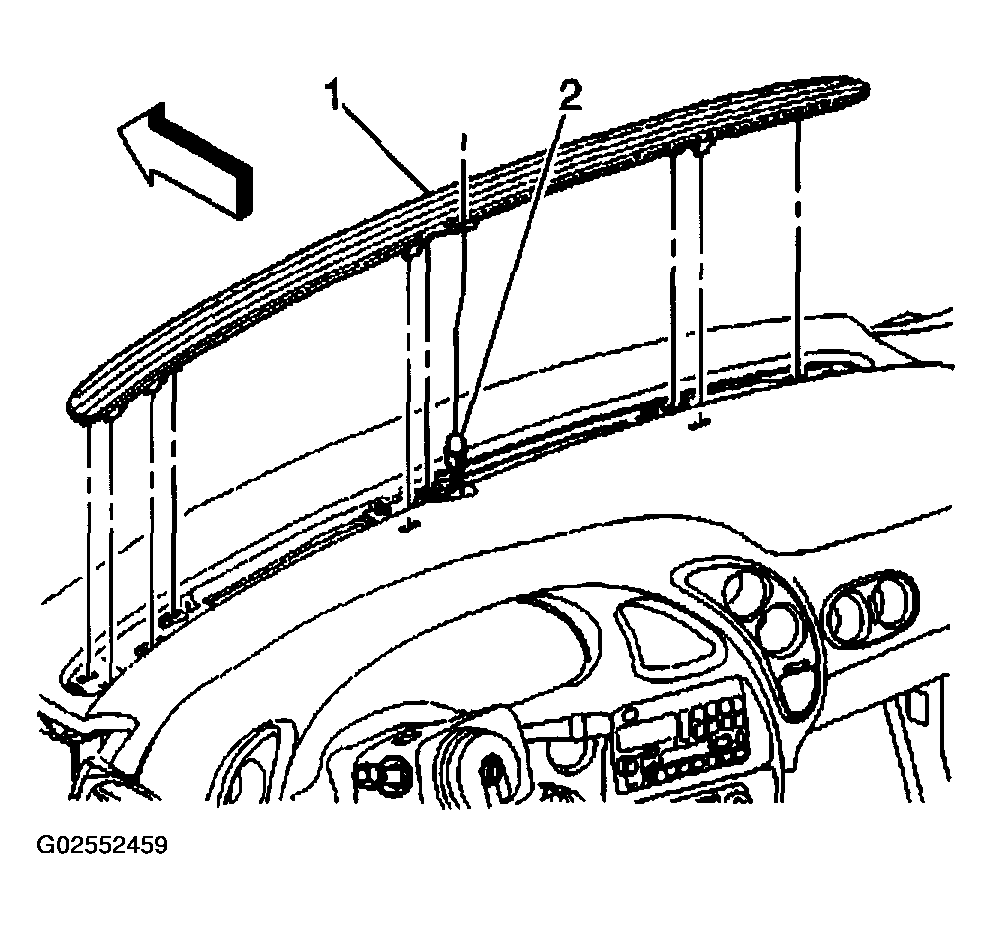

Fig 1: Installing Sunload Sensor Assembly

Courtesy of GENERAL MOTORS CORP.
