Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Remove the defroster grille. Refer to DEFROSTER GRILLE REPLACEMENT in Instrument Panel, Gages and Console.
Disconnect the electrical connector from the sunload sensor assembly (2).
Remove the sunload sensor assembly.

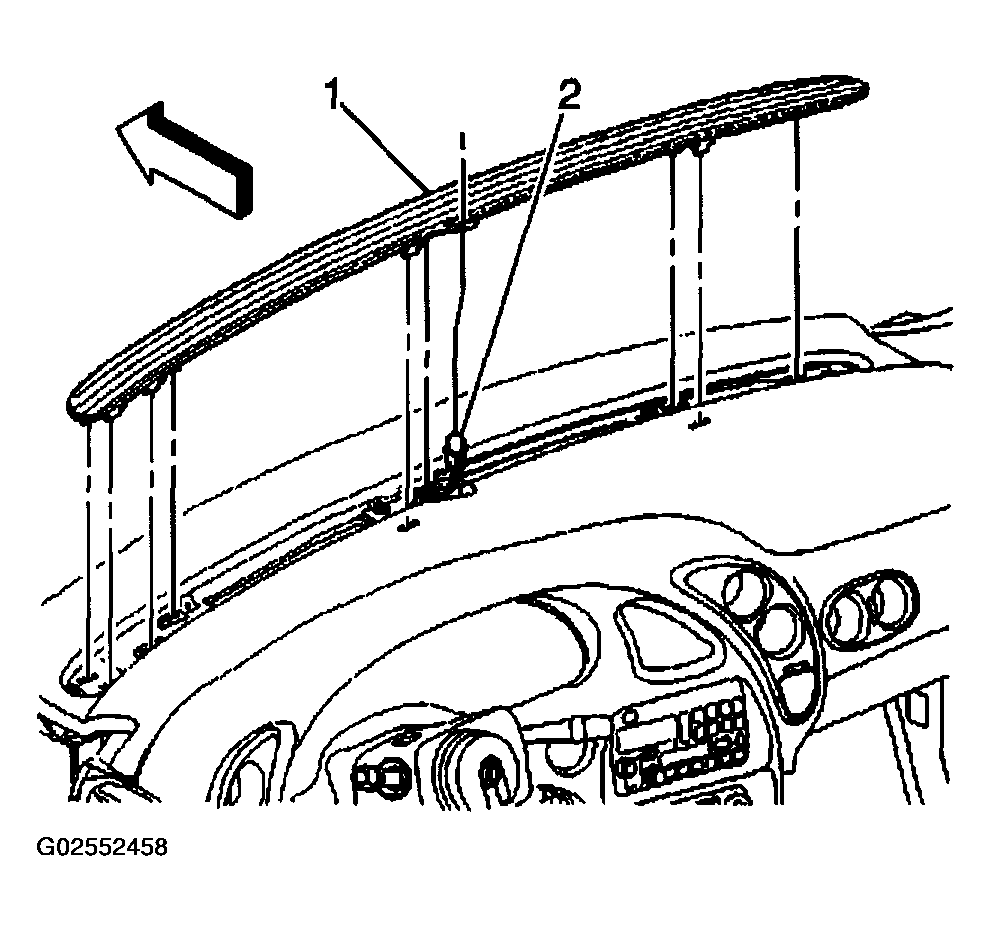

Fig 1: Removing Sunload Sensor Assembly

Courtesy of GENERAL MOTORS CORP.
