Section 355 (Keyless Entry System)
›
Diagnostic Information and Procedures
›
Scan Tool Output Controls
Scan Tool Output Controls
WARNING:
This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

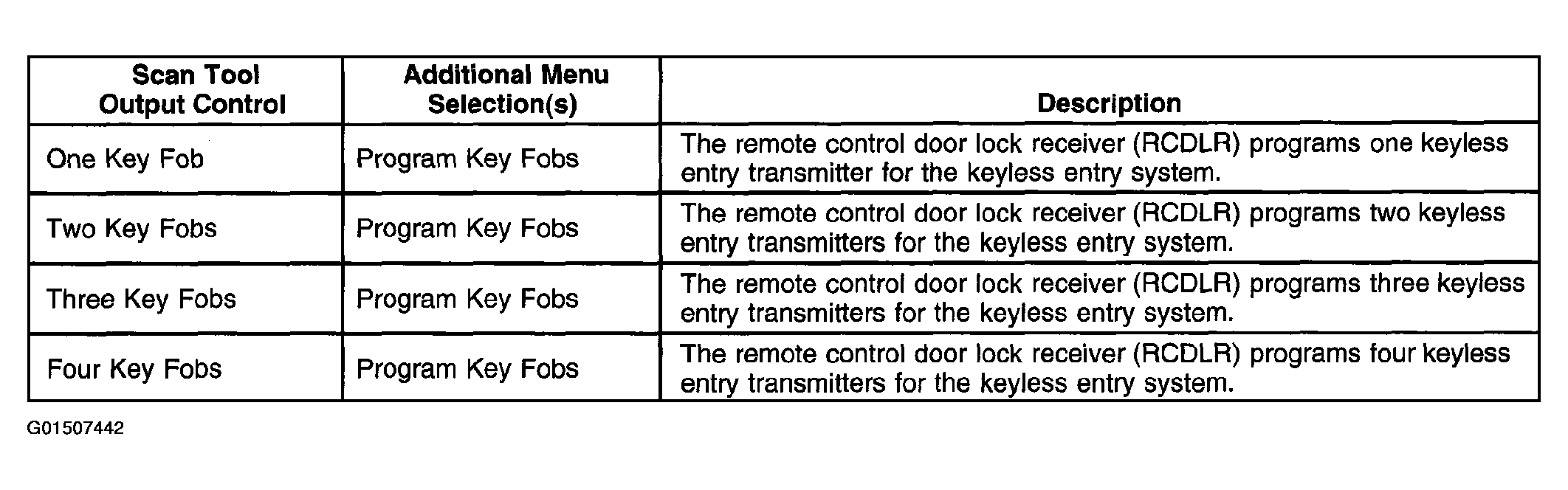

Fig 1: Scan Tool Output Controls
Courtesy of GENERAL MOTORS CORP.
