Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the defroster grille (1) by carefully prying upward to release the retainers.
  2. Disconnect the electrical connector from the ambient light sensor (2).
  3. Remove the ambient light sensor (2) from the defroster grille (1) by turning counterclockwise 1/4 turn.

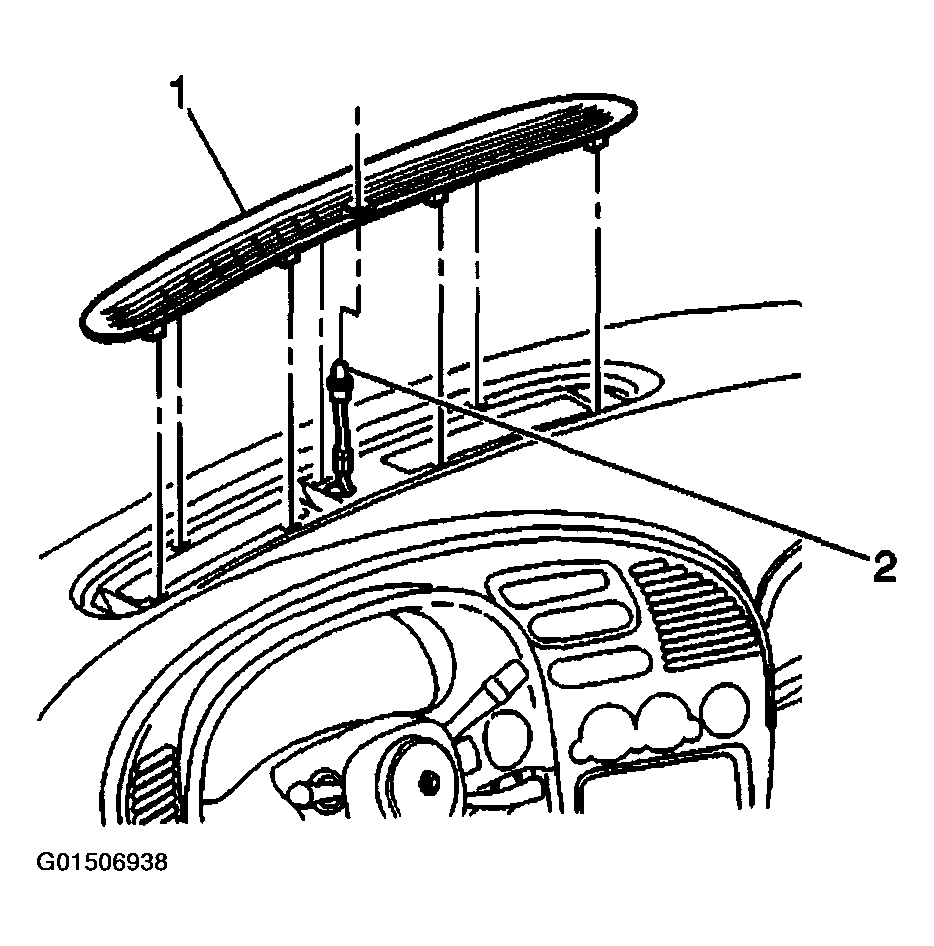

    Fig 1: Removing Defroster Grille & Ambient Light Sensor
    G01506938Courtesy of GENERAL MOTORS CORP.
