Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector to the fog lamp assembly.
Install the fog lamp to the front bumper fascia.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the front fog lamp mounting fasteners.
Tighten

Tighten the front fog lamp mounting fasteners to 6 N.m (53 lb in).
Install the air deflector. Refer to AIR DEFLECTOR REPLACEMENT - FRONT in Body Front End.
Lower the vehicle.

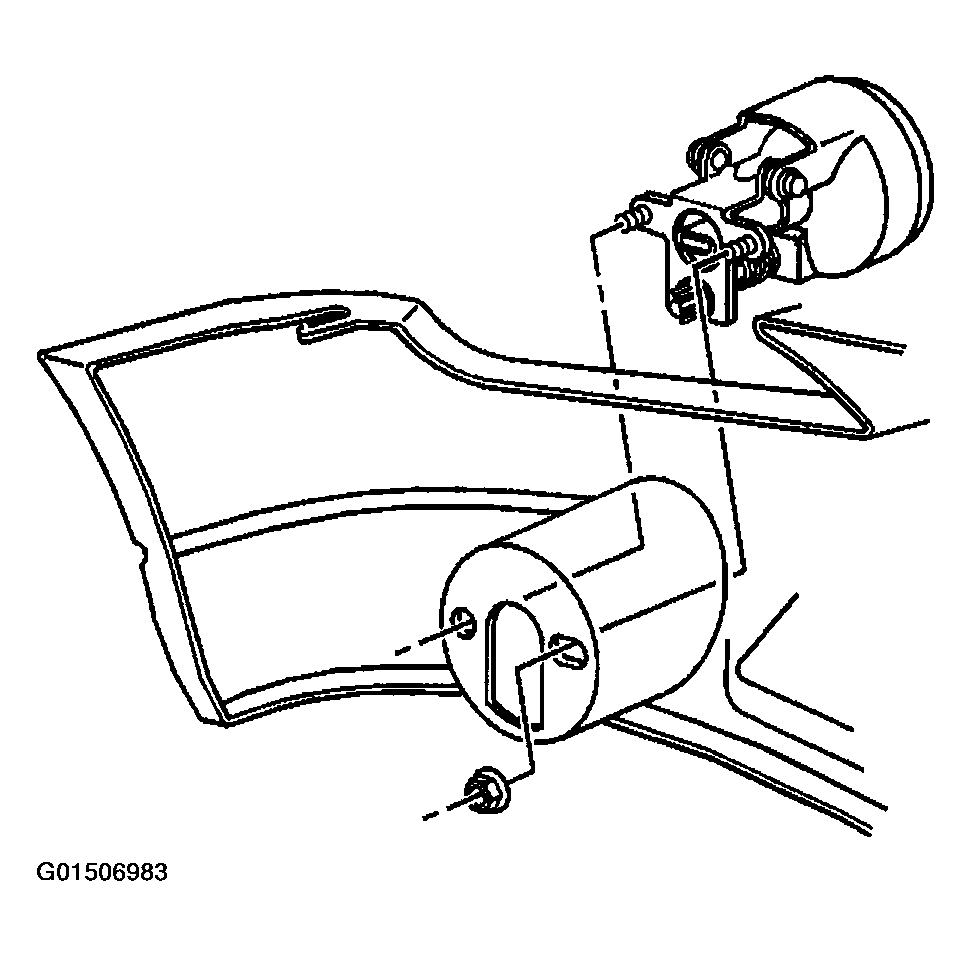

Fig 1: Installing Fog Lamp Assembly
Courtesy of GENERAL MOTORS CORP.
