Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector (1) the turn signal/hazard warning flasher (2).
  2. Install the turn signal/hazard warning flasher (2) to the IP carrier.
  3. Install the left IP closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT in Instrument Panel, Gages and Console.

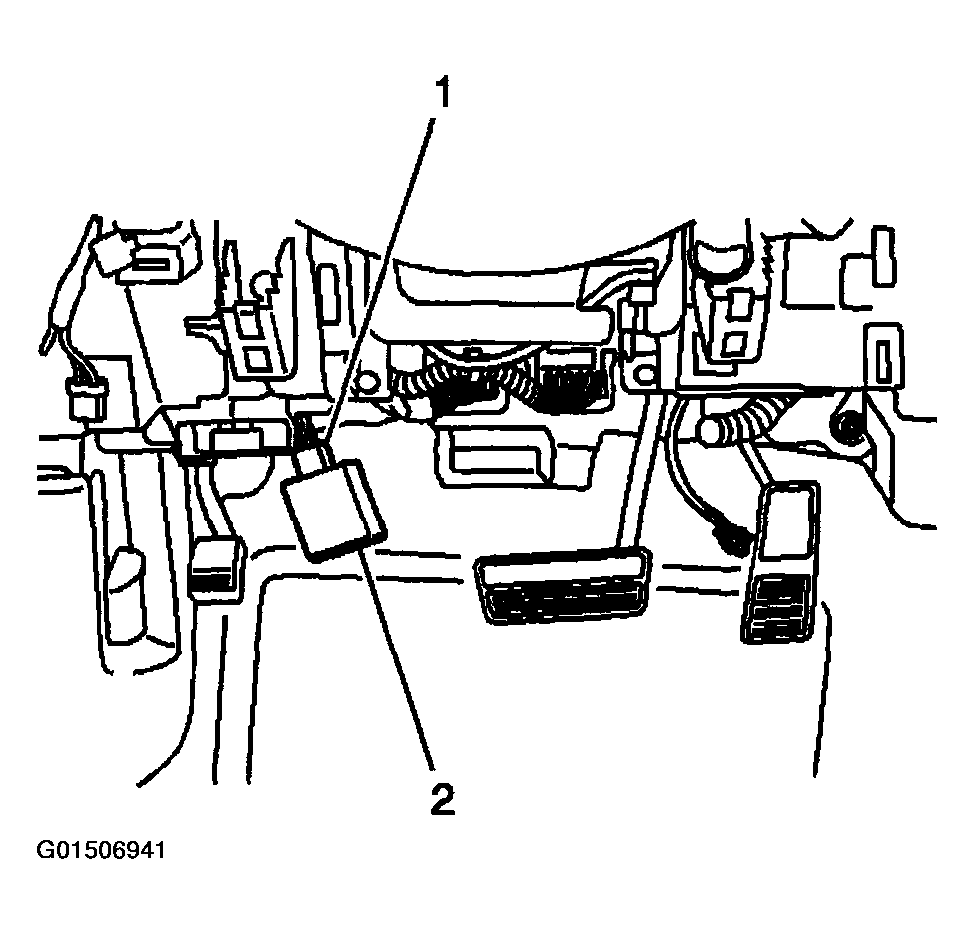

    Fig 1: Installing Turn Signal/Hazard Warning Flasher
    G01506941Courtesy of GENERAL MOTORS CORP.
