Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp assembly from the vehicle. Refer to HEADLAMP REPLACEMENT  .
  2. Remove the headlamp bulb (3 or 4) from the headlamp assembly (1) by turning 1/4 turn counter clockwise.
  3. Disconnect the electrical connector from the bulb.

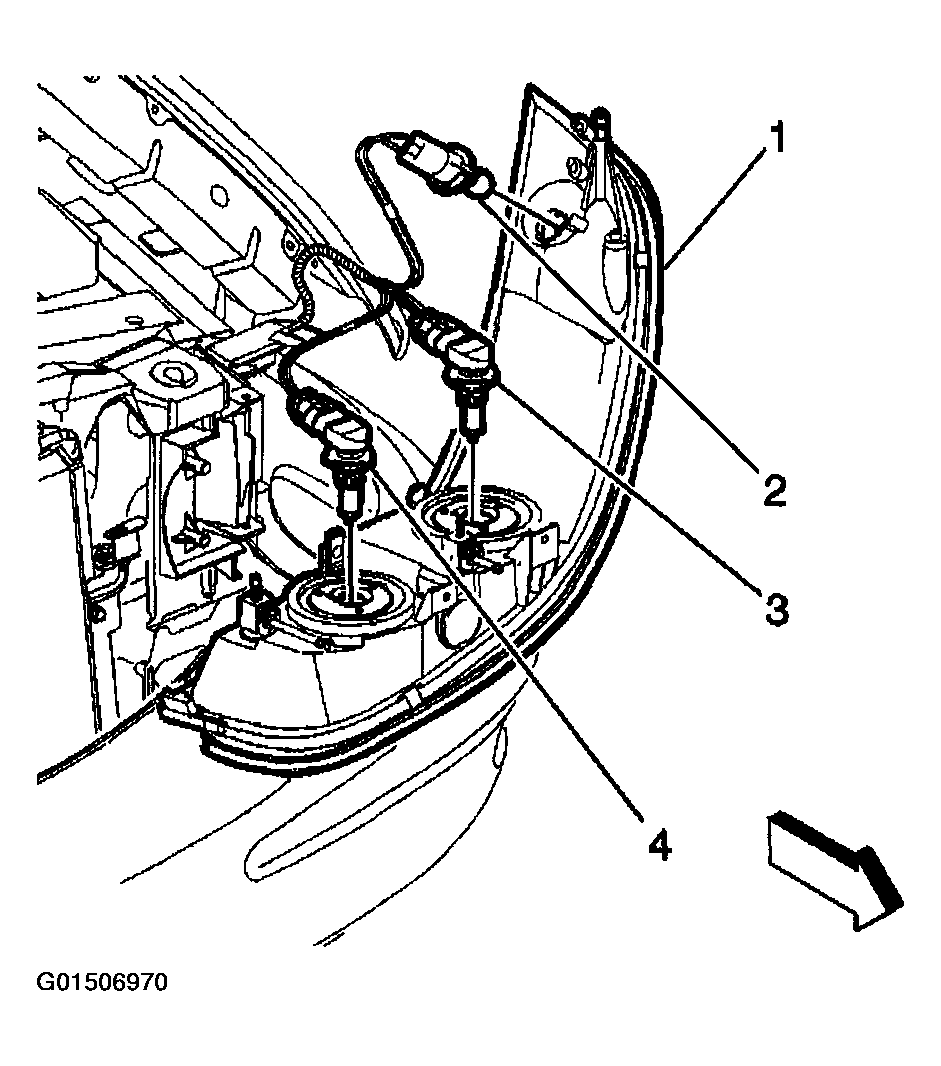

    Fig 1: Removing Headlamp Bulbs
    G01506970Courtesy of GENERAL MOTORS CORP.
