Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Remove headlamp fasteners (1, 2) securing the headlamp to the vehicle.

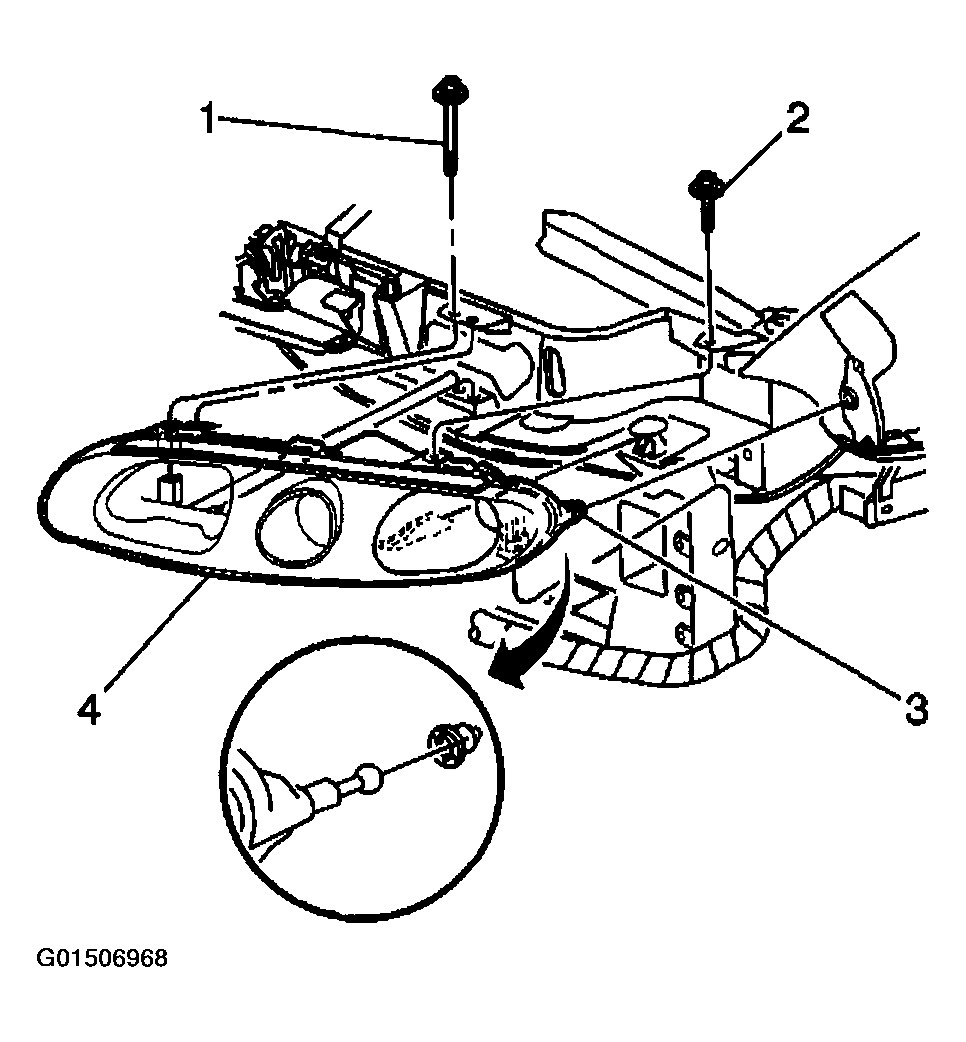

Fig 1: Removing Headlamp Fasteners
Courtesy of GENERAL MOTORS CORP.
Using a pry bar, carefully pry in the center area of the headlamp.

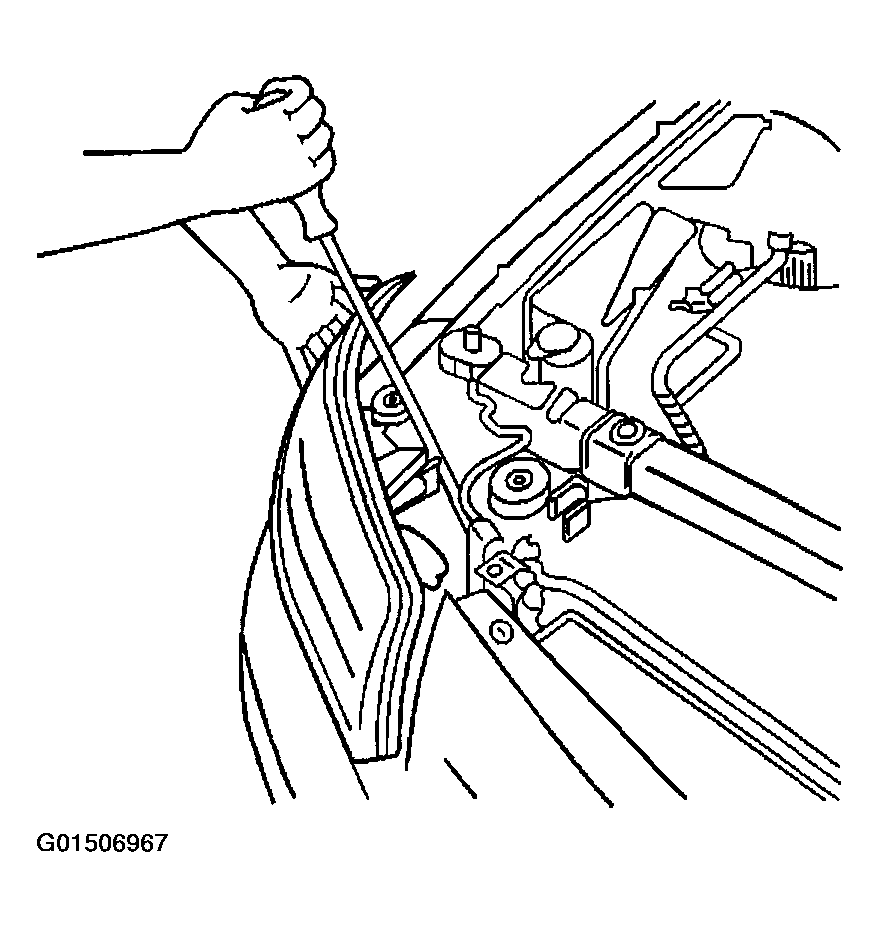

Fig 2: Prying Headlamp Assembly
Courtesy of GENERAL MOTORS CORP.
Pry the headlamp assembly straight forward in order to unsnap the headlamp ball stud (3) from its ball stud socket.
Slide the headlamp (4) straight forward and disconnect the headlamp connector from the forward lamp wiring harness.
Remove the headlamp from the vehicle.

Fig 3: Removing Headlamp From Vehicle
Courtesy of GENERAL MOTORS CORP.
