Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb into the IP storage compartment lamp.

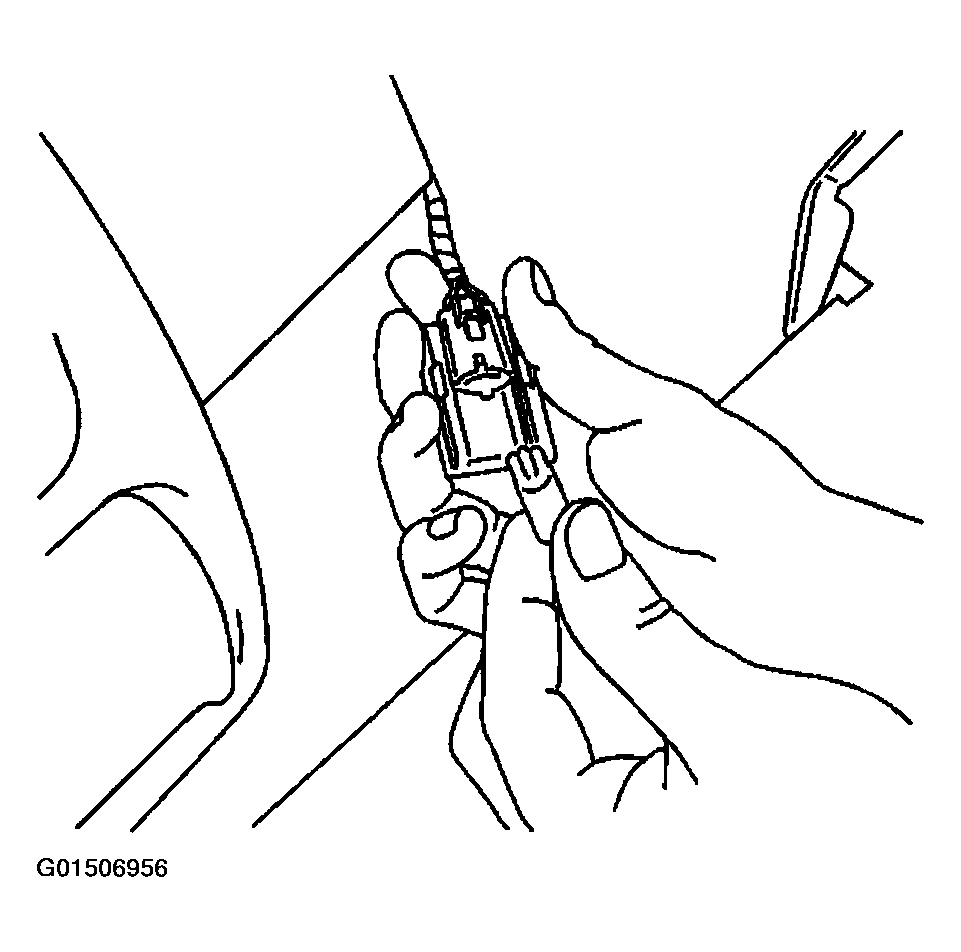

    Fig 1: Installing Bulb Into IP Storage Compartment Lamp
    G01506956Courtesy of GENERAL MOTORS CORP.
  2. Install the IP storage compartment lamp into the IP storage compartment.
  3. Connect the electrical connector to the IP storage compartment lamp.
  4. Install the instrument panel storage compartment. Refer to STORAGE COMPARTMENT REPLACEMENT -- INSTRUMENT in Instrument Panel, Gages and Console.

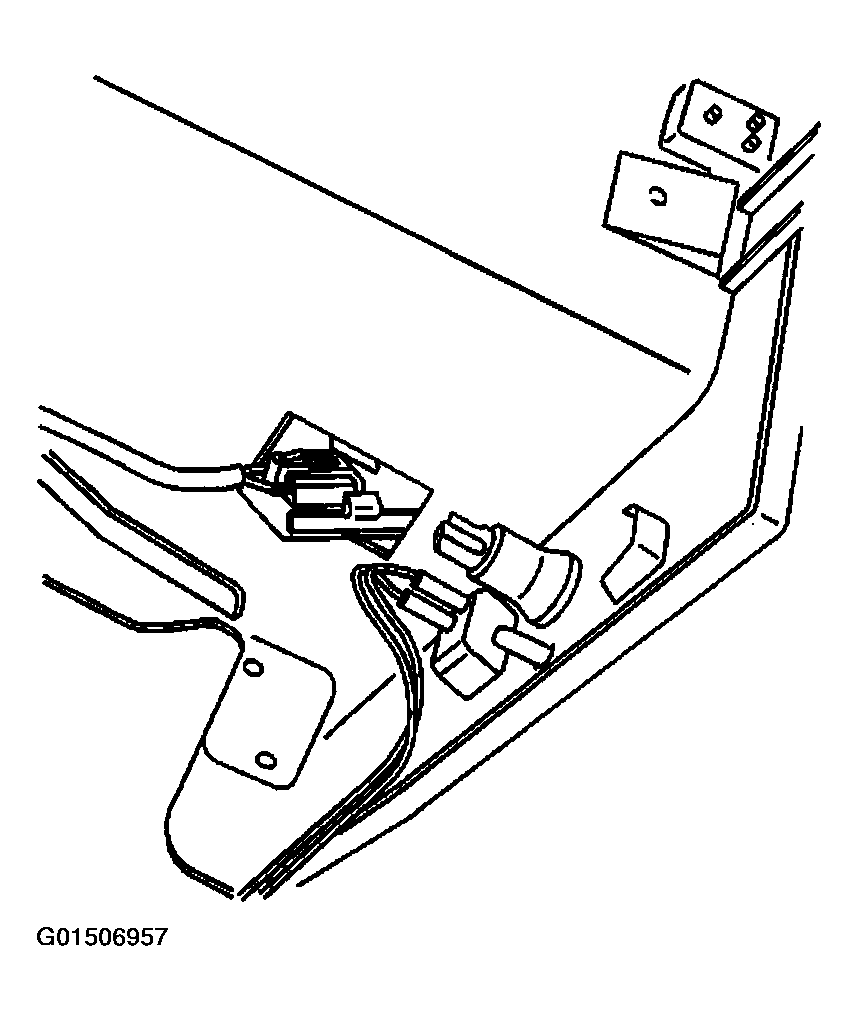

    Fig 2: Installing IP Storage Compartment Lamp
    G01506957Courtesy of GENERAL MOTORS CORP.
