Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the coaxial cable harness to the roof beams with the rosebud clips (3).
  2. Connect the power lead connectors (2).

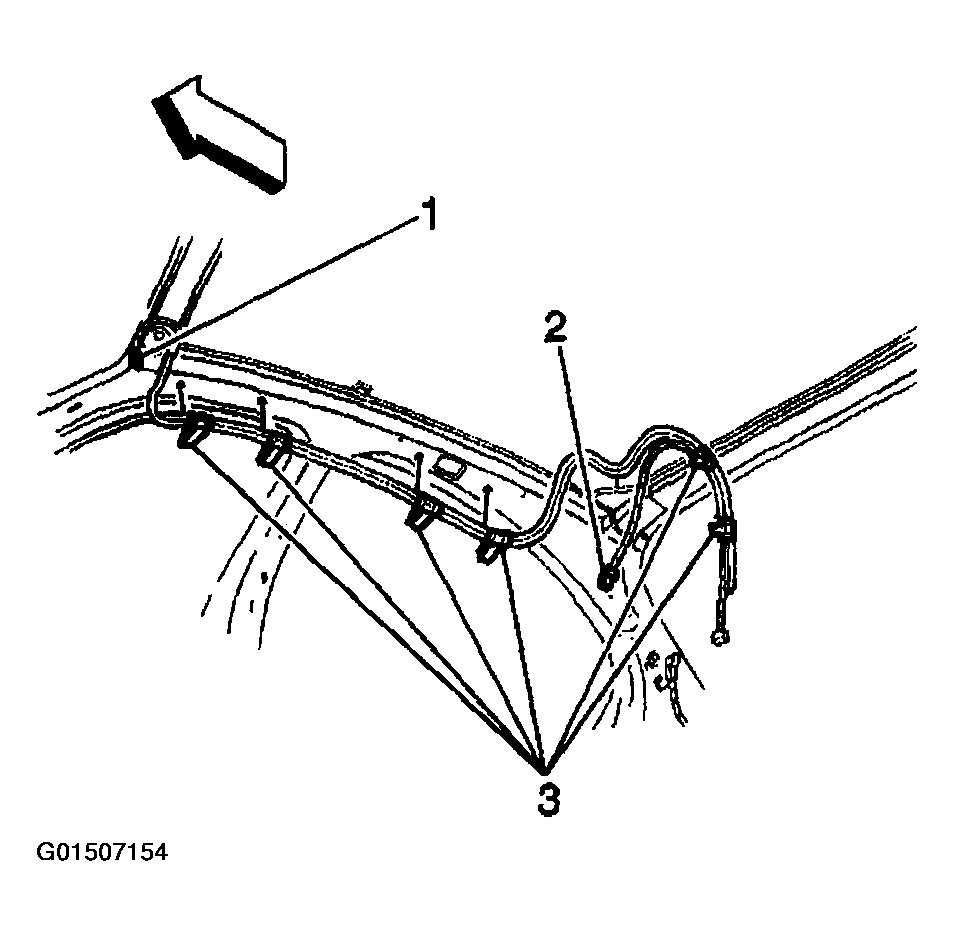

    Fig 1: Installing Coaxial Cable Harness
    G01507154Courtesy of GENERAL MOTORS CORP.
  3. Install the antenna connection (2) at the windshield.
  4. Connect the ground connector (1) to the roof beam.

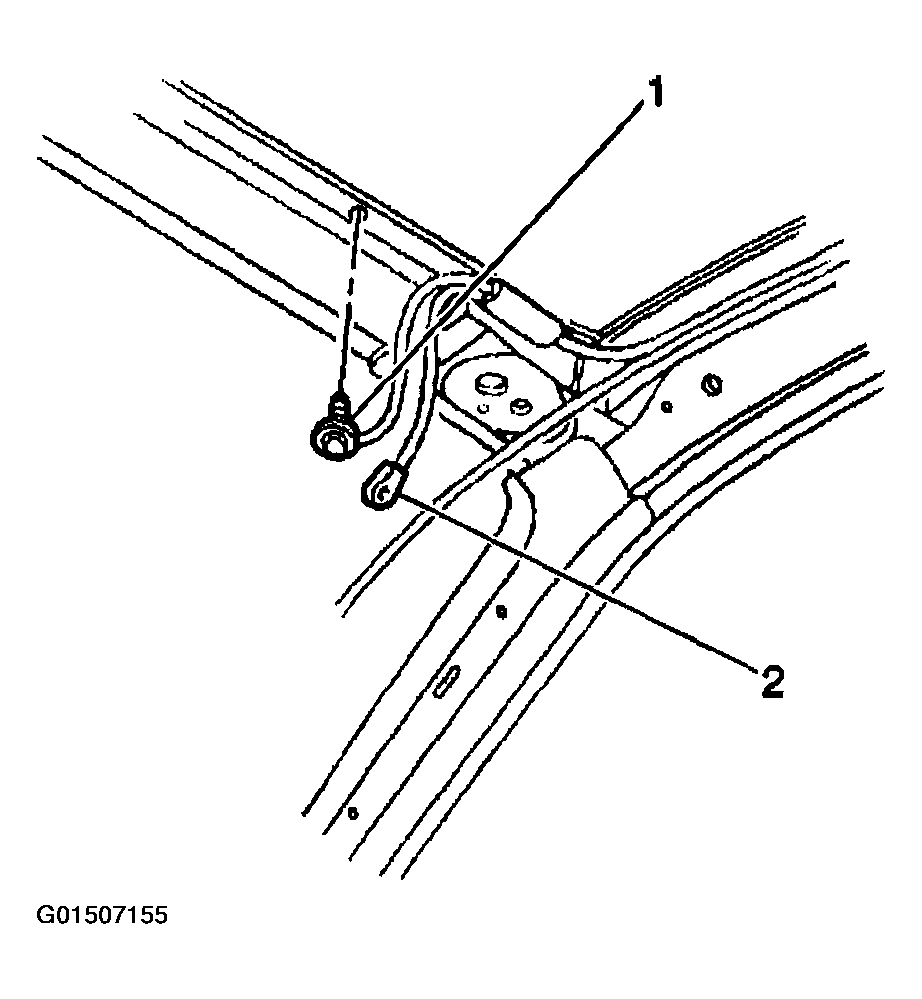

    Fig 2: Installing Antenna Connection At Windshield
    G01507155Courtesy of GENERAL MOTORS CORP.
  5. Connect the coaxial cable connectors (2).
  6. Install the cable clips (1) to the instrument panel support.
  7. Insert the cable connector into the retainer in the radio cavity.

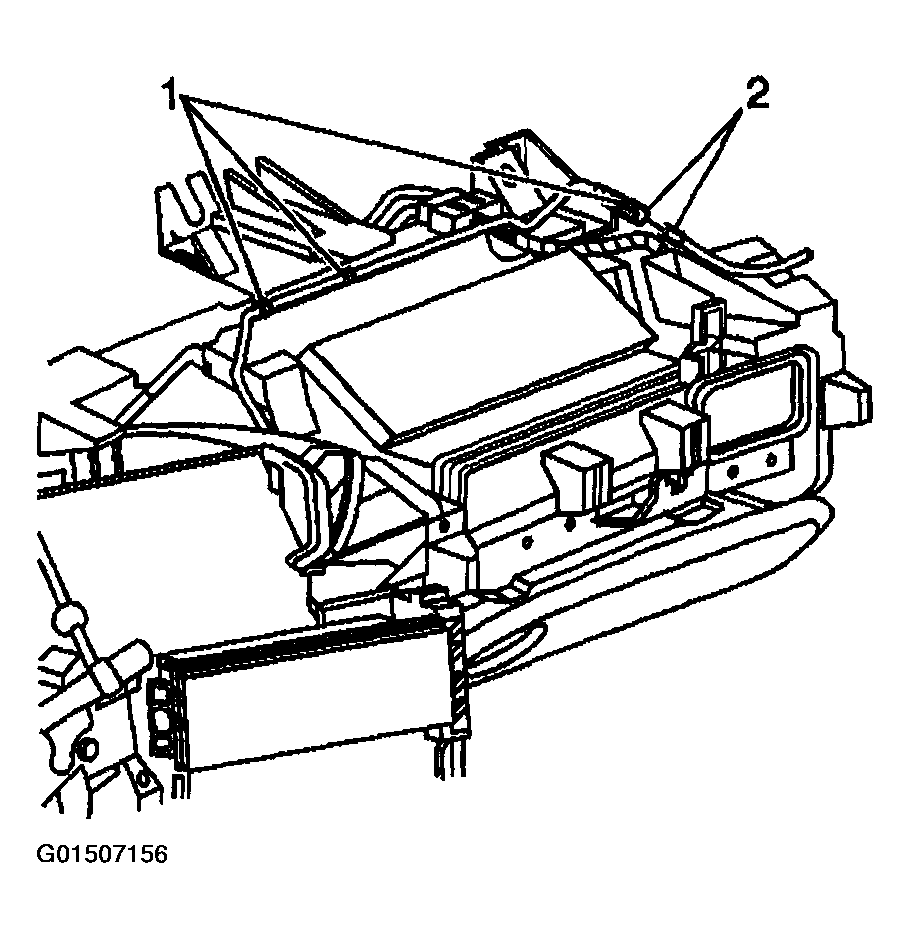

    Fig 3: Connecting Coaxial Cable Connectors
    G01507156Courtesy of GENERAL MOTORS CORP.
  8. Install the coaxial cable connections to the antenna module.
  9. Install the upper instrument panel trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) in Instrument Panel Gauges & Console.
  10. Install the radio. Refer to RADIO REPLACEMENT (W/O UM8)  or RADIO REPLACEMENT (W UM8)  .
  11. Install the headliner. Refer to HEADLINER REPLACEMENT (WITH SUNROOF) or HEADLINER REPLACEMENT (WITHOUT SUNROOF) in Interior Trim. Interior Trim.
  12. Install the upper rear quarter trim panel. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) in Instrument Panel Gauges & Console.
  13. Install the right side windshield garnish molding. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILL in Interior Trim.

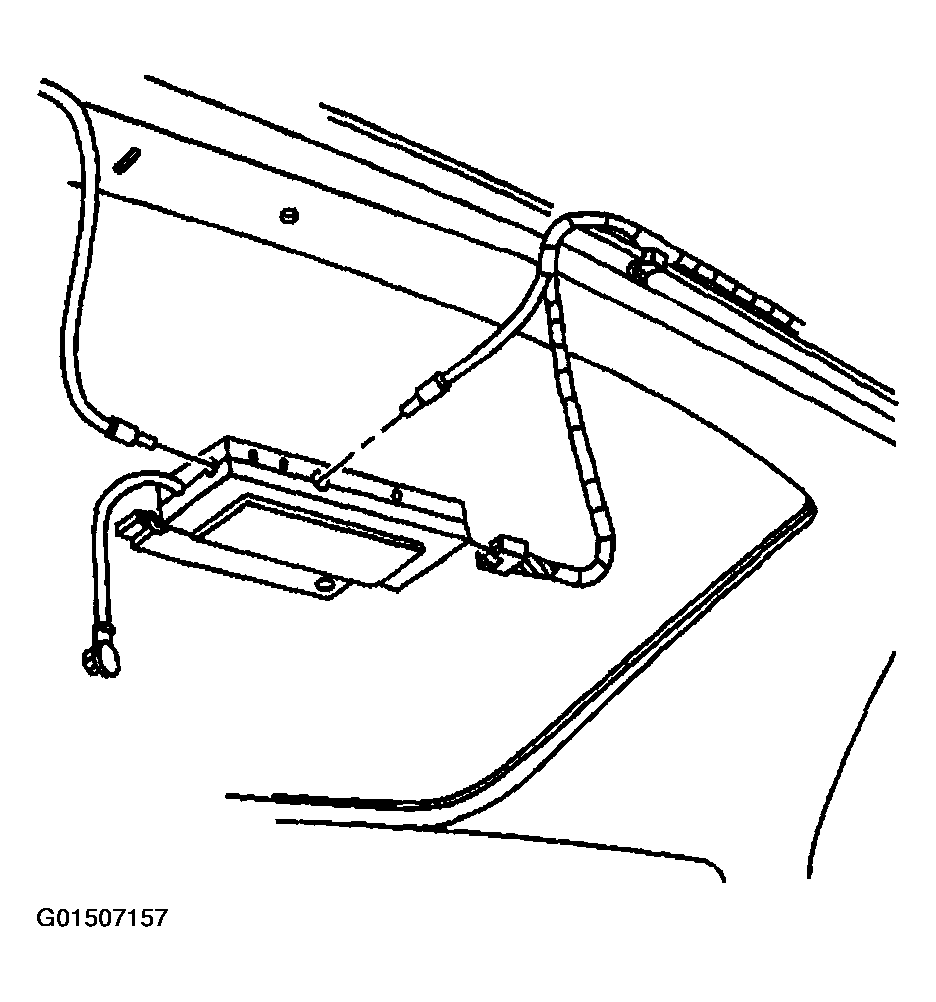

    Fig 4: Installing Coaxial Cable Connections To Antenna Module
    G01507157Courtesy of GENERAL MOTORS CORP.
