Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Position the energy absorber to front bumper fascia.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the screws (1) to secure the energy absorber to the fascia using a square drive bit.
Tighten

Tighten the screws to 4 N.m (35 lb in).
Install the front bumper fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER .

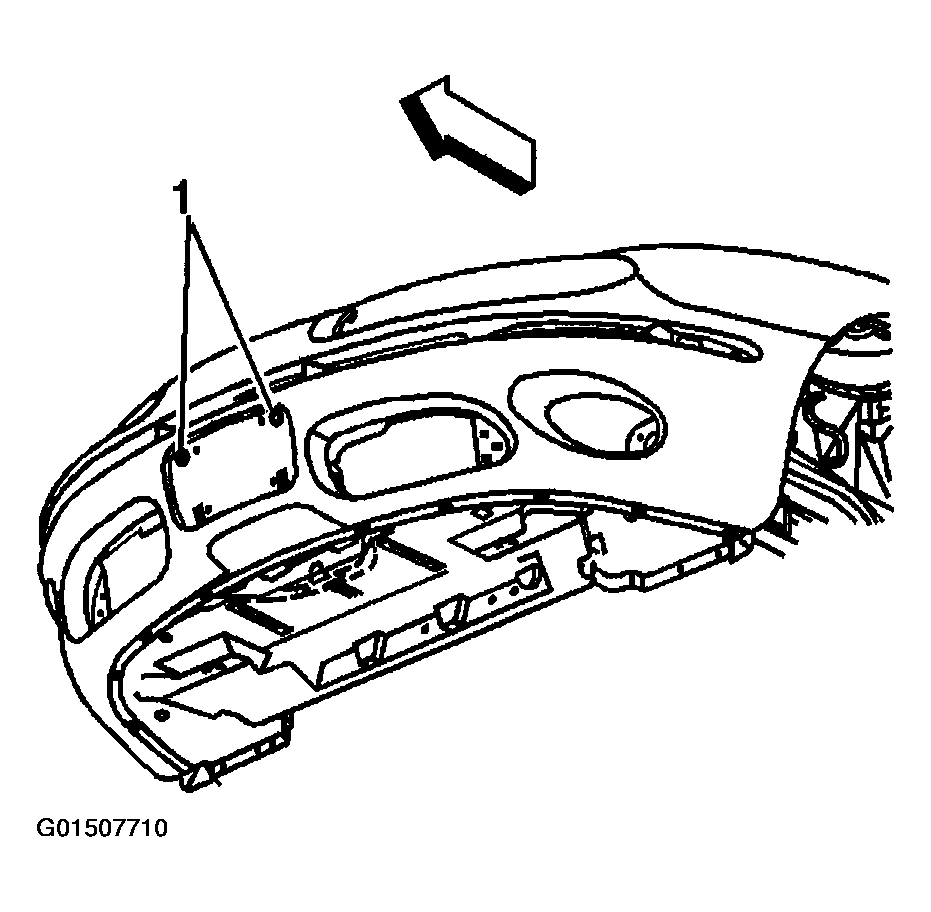

Fig 1: Installing Energy Absorber To Fascia
Courtesy of GENERAL MOTORS CORP.
