Engine Block Rear

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

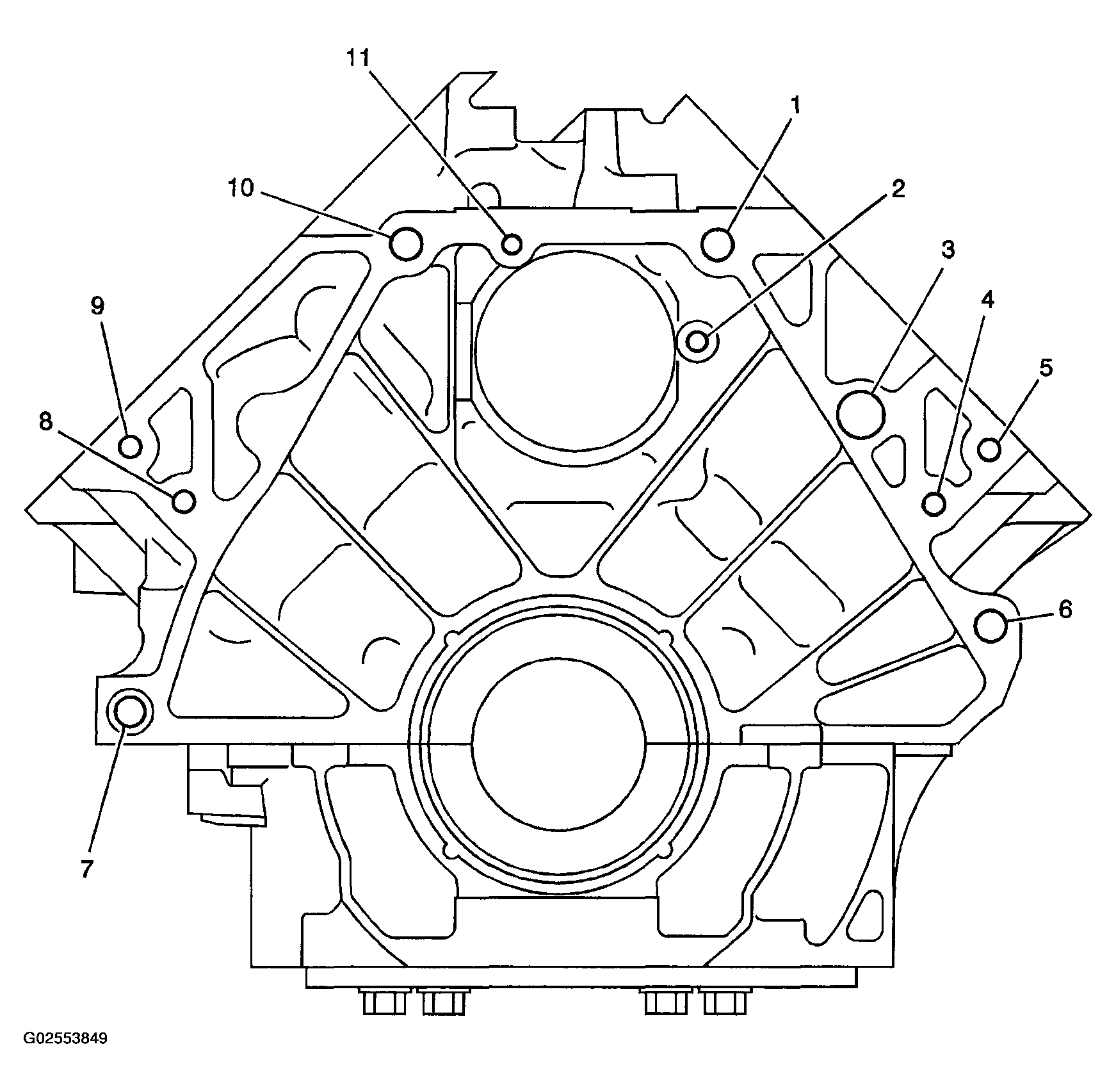

Fig 1: Identifying Engine Block Rear Bolt Holes

Courtesy of GENERAL MOTORS CORP.

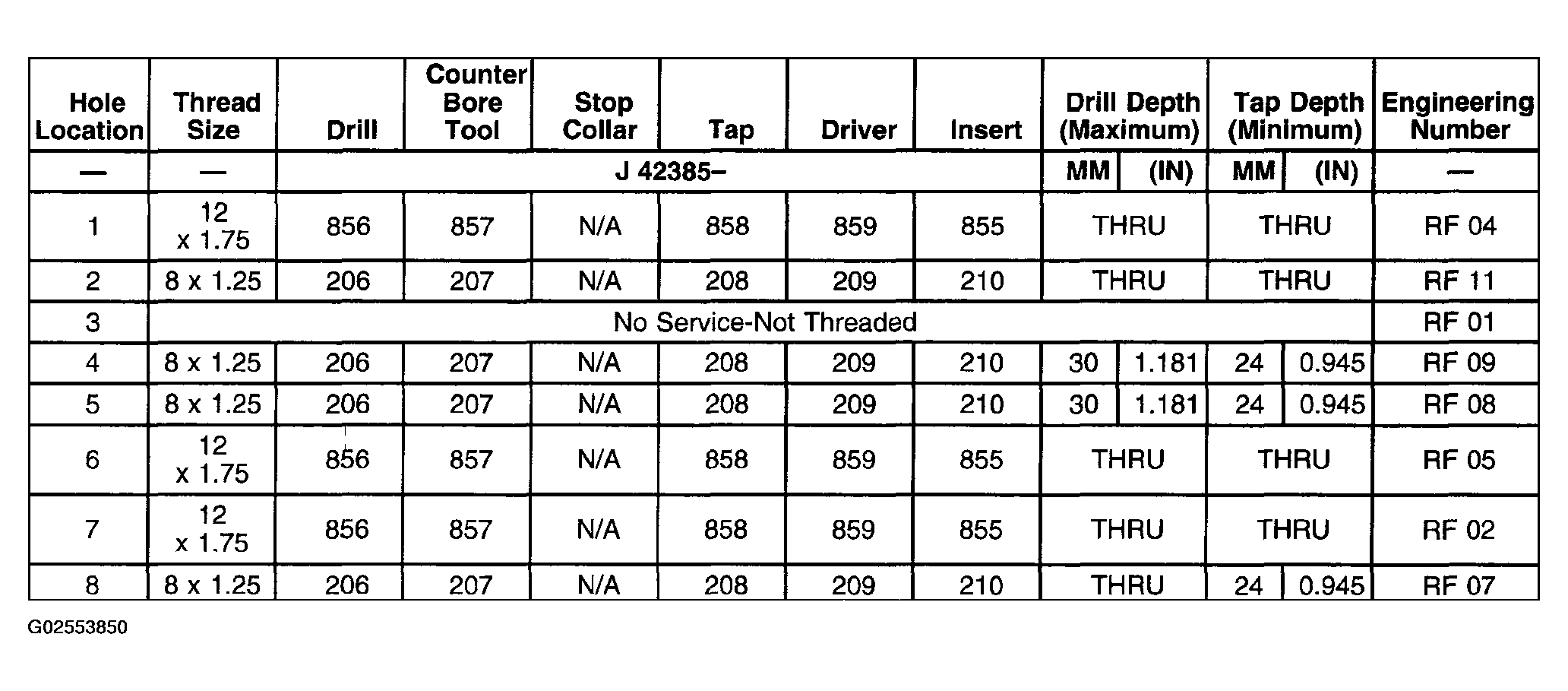

Fig 2: Engine Block Rear Bolt Holes Specifications (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

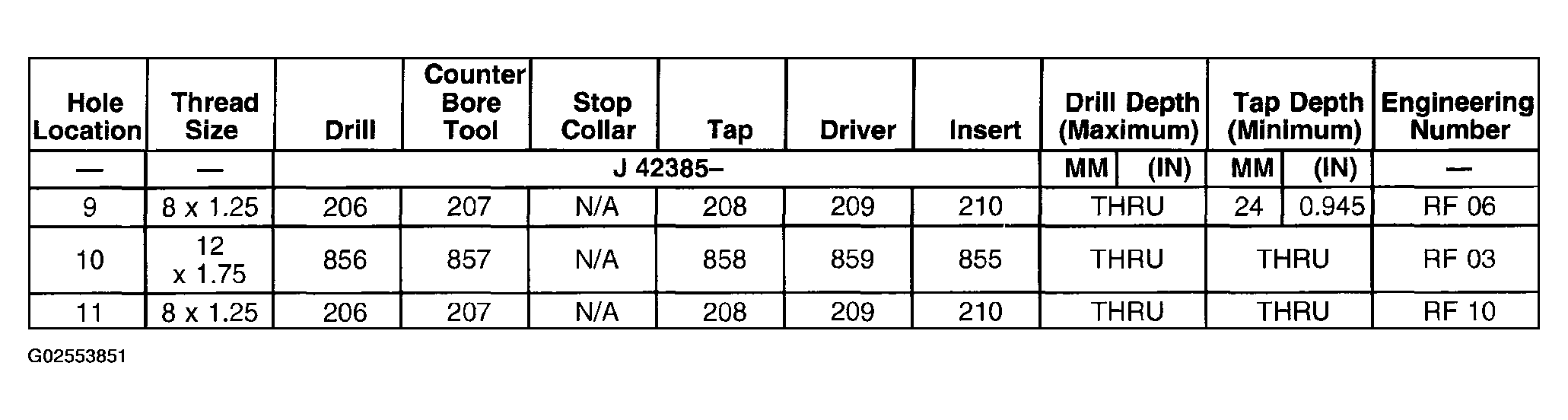

Fig 3: Engine Block Rear Bolt Holes Specifications (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
