Cooling System Connector End Views

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

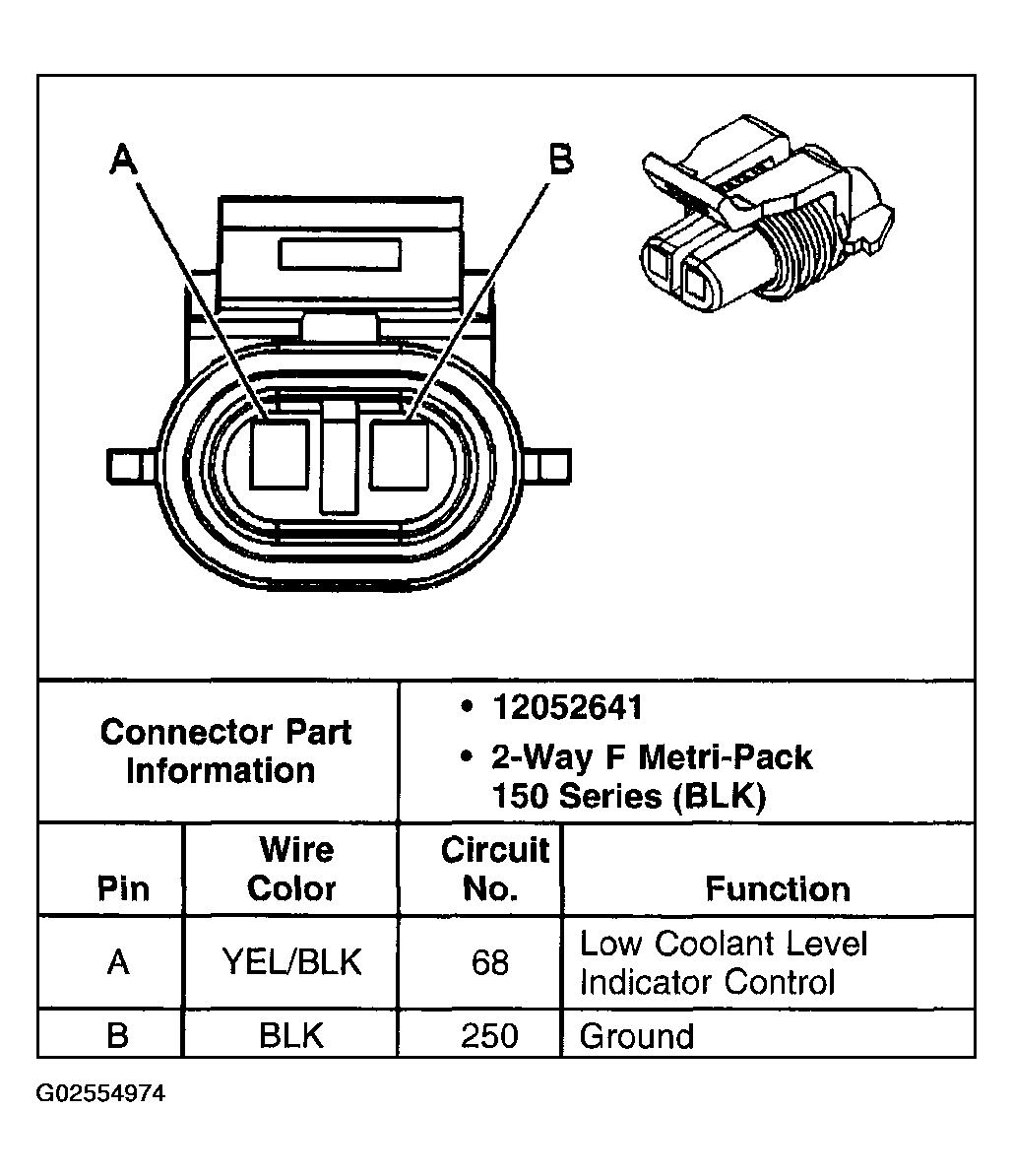

Fig 1: Coolant Level Switch

Courtesy of GENERAL MOTORS CORP.

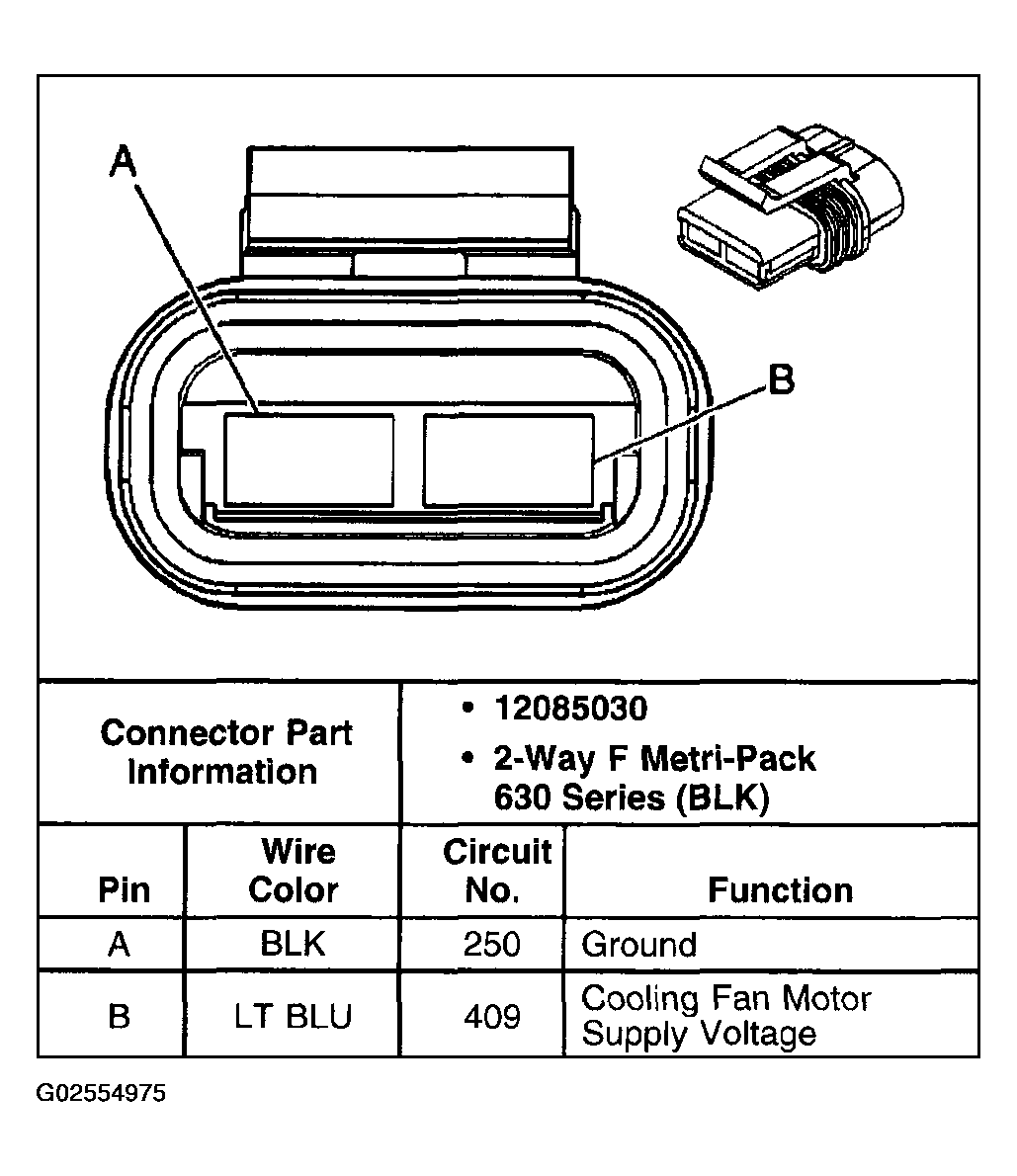

Fig 2: Cooling Fan - Left

Courtesy of GENERAL MOTORS CORP.

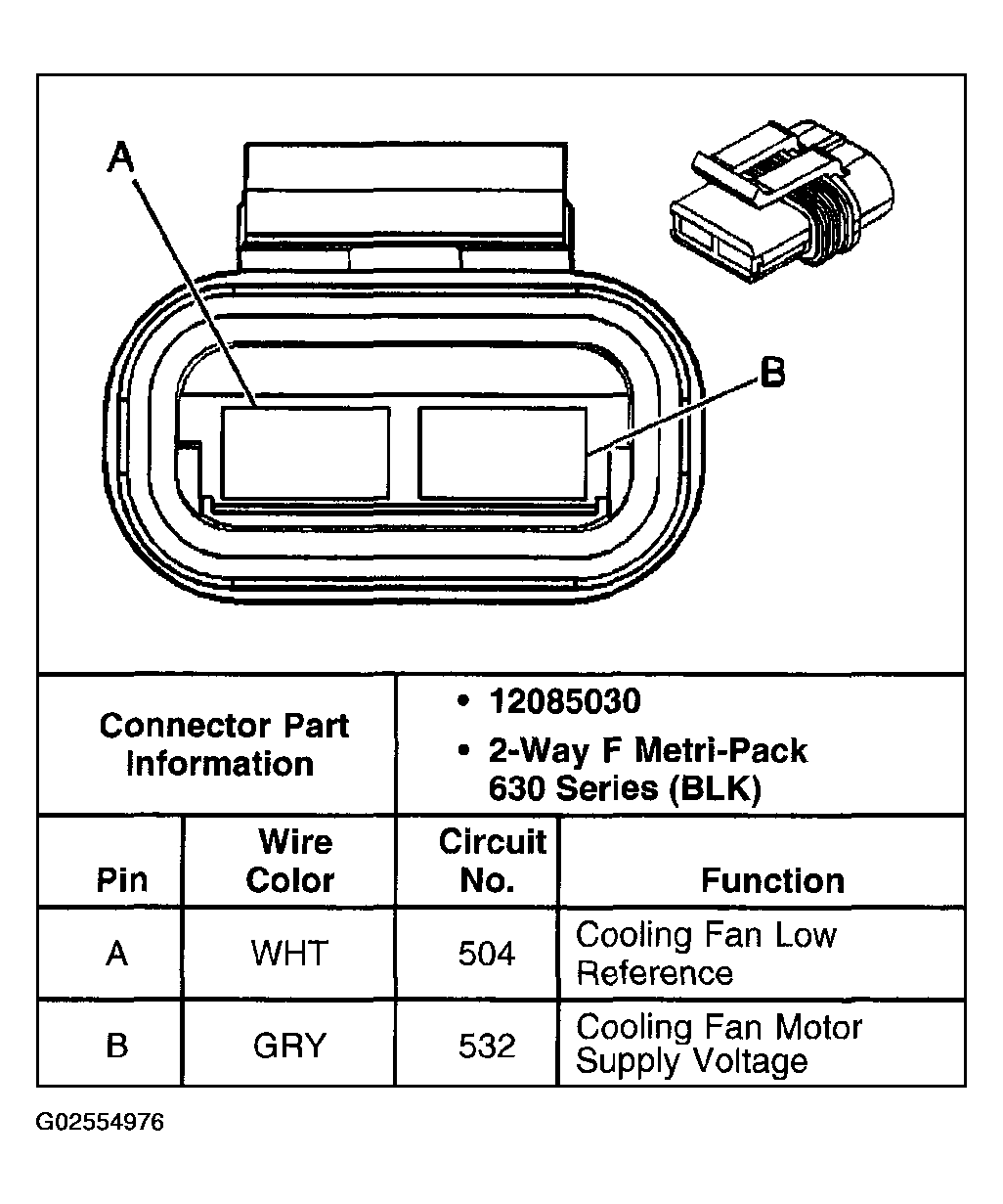

Fig 3: Cooling Fan - Right

Courtesy of GENERAL MOTORS CORP.
