Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING the vehicle in General Information.
  2. Remove the retainers (1, 2, 3, 4) from the front air deflector.
  3. Remove the front air deflector (5).

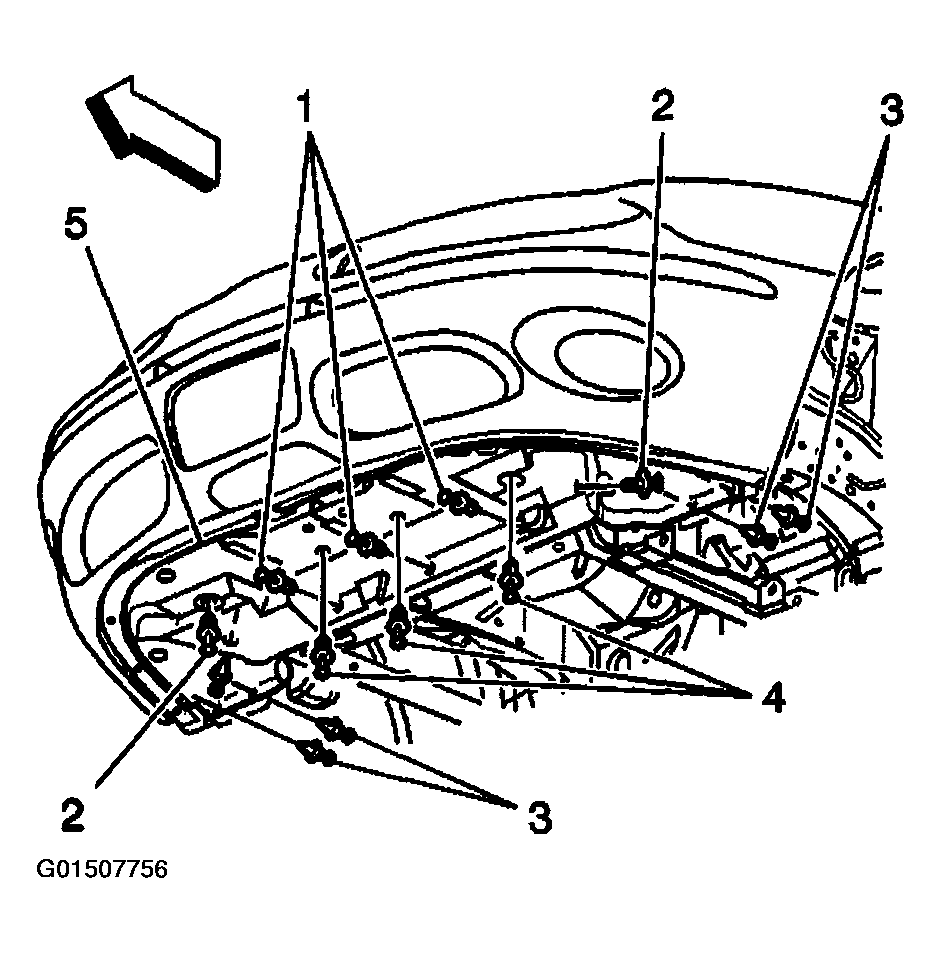

    Fig 1: Removing Air Deflector - Front
    G01507756Courtesy of GENERAL MOTORS CORP.
