Installation Procedure
WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

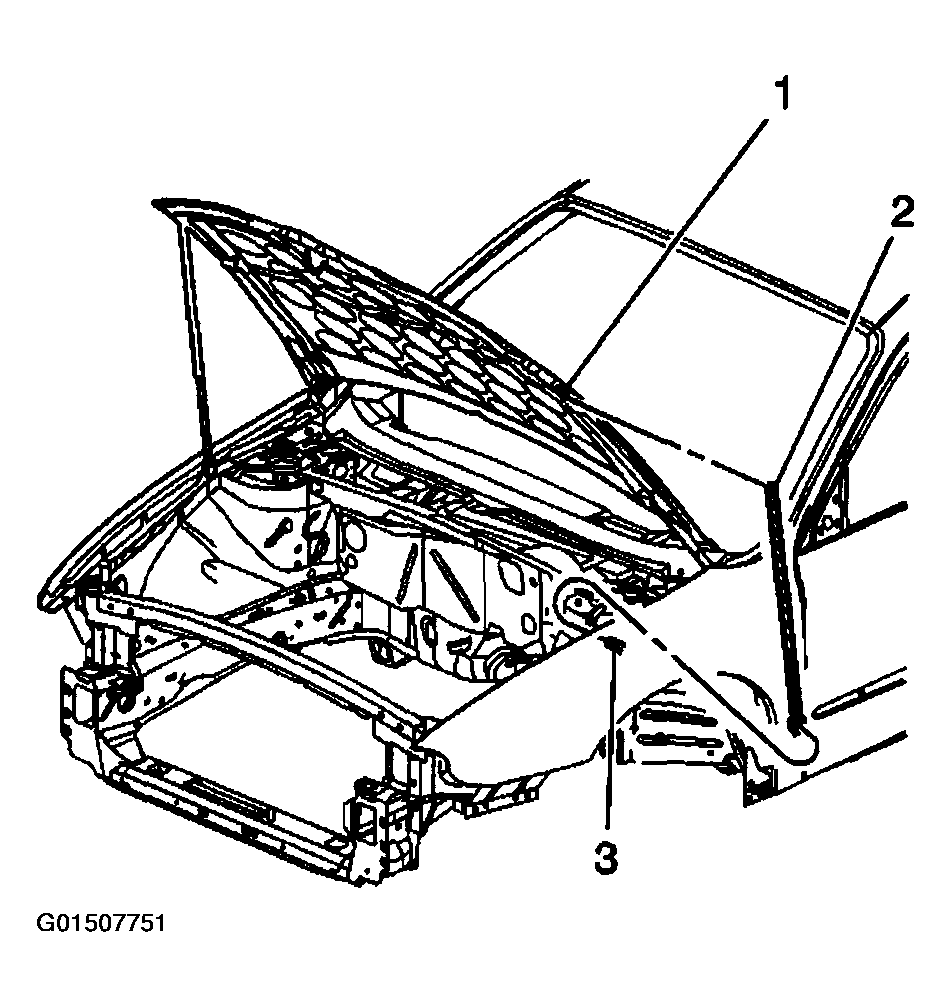

- Press the hood assist rod (2) onto the upper hood assist rod ball stud (1).
- Press the hood assist rod (2) onto the lower hood assist rod ball stud (3).
- Ensure that both clips are fully seated on the hood assist rod (2).
- Close the hood.
Courtesy of GENERAL MOTORS CORP.
