Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When removing body panels, apply tape to corners of panels and adjacent surfaces to help prevent paint damage.
  1. Remove the rocker molding. Refer to MOLDING REPLACEMENT - ROCKER PANEL in Exterior Trim.
  2. Remove the air deflector. Refer to AIR DEFLECTOR REPLACEMENT - FRONT  .
  3. Remove the fascia to fender fasteners. Refer to FASCIA REPLACEMENT - FRONT BUMPER in Bumpers. .
  4. Remove the fender fasteners (2).
  5. Remove the fender (1) from the vehicle.

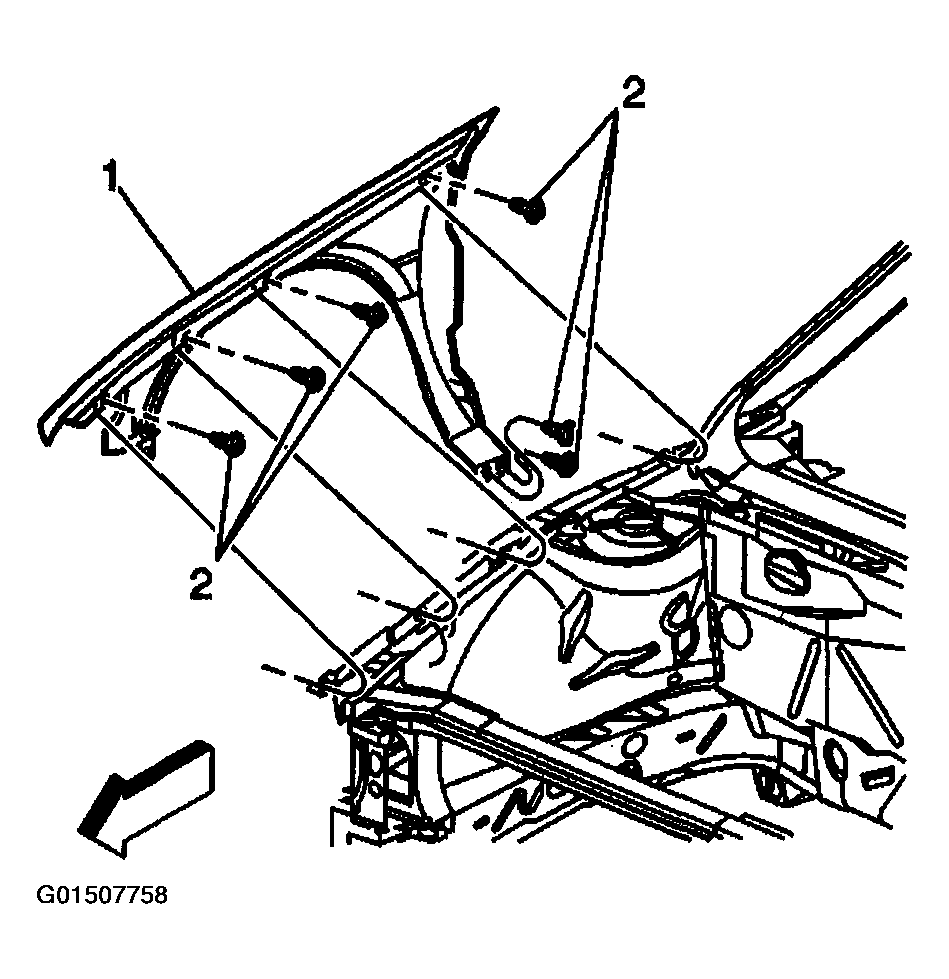

    Fig 1: Removing Fender - Front
    G01507758Courtesy of GENERAL MOTORS CORP.
