Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood insulator to the hood.
  2. Install the push in retainers to retain the hood insulator to the hood.
  3. Install the Front Hood Seal. Refer to SEAL REPLACEMENT - HOOD FRONT  .
  4. Close the hood.

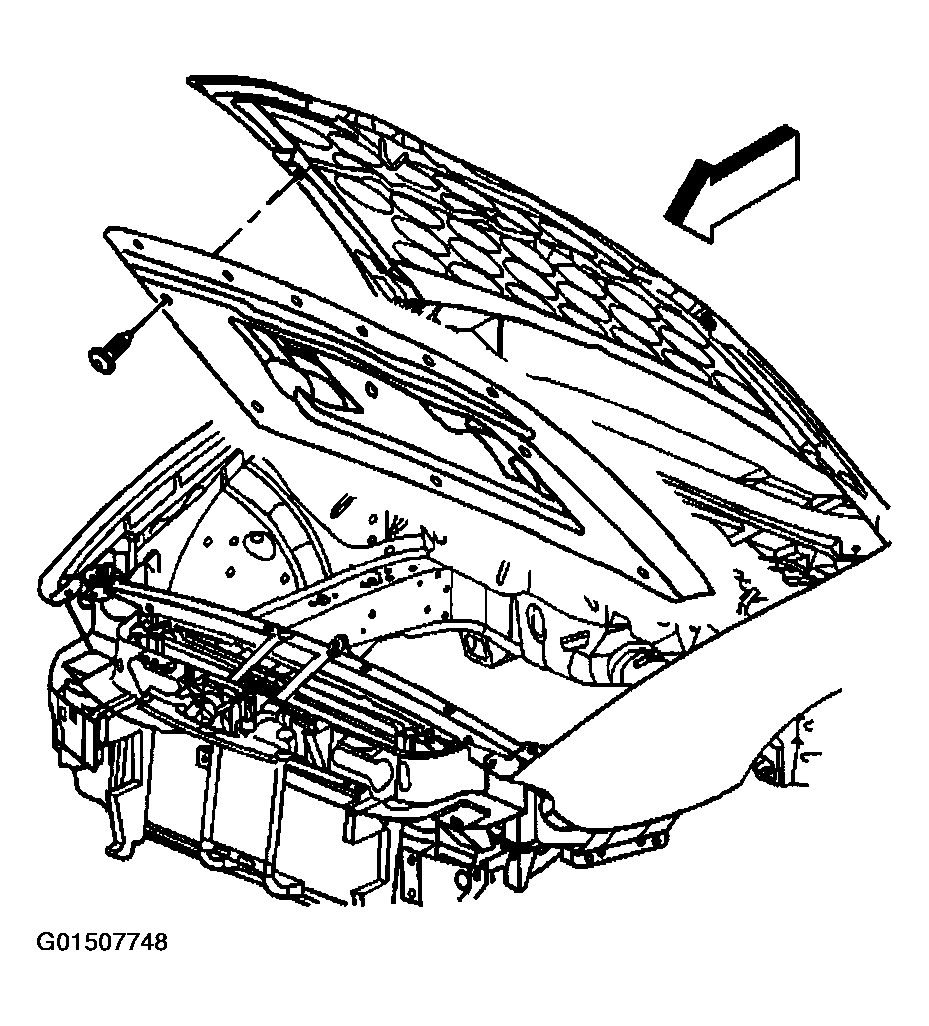

    Fig 1: Installing Hood Insulator
    G01507748Courtesy of GENERAL MOTORS CORP.
