Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Line up the clips on the DIC to the holes in the IP and press forward to engage.
  2. Install the IP trim plate bezel. Refer to TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .

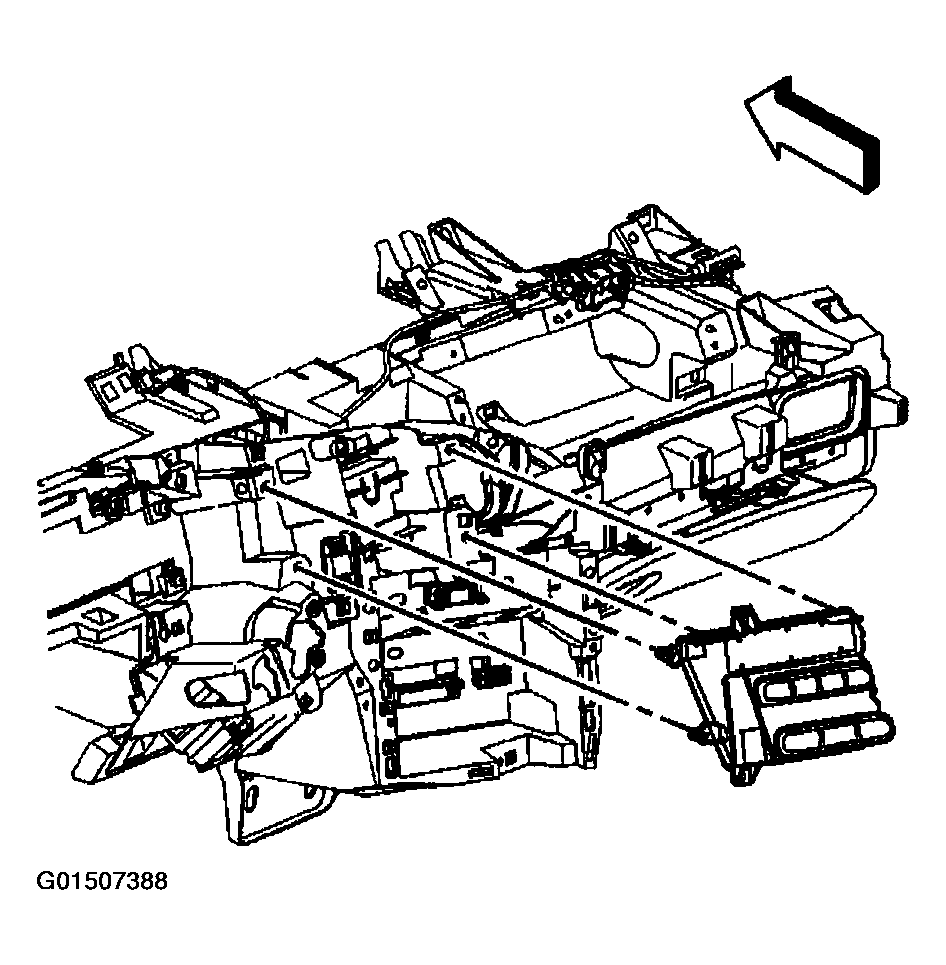

    3. Fig 1: Removing & Installing Driver Information Center Module
    G01507388Courtesy of GENERAL MOTORS CORP.
