WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

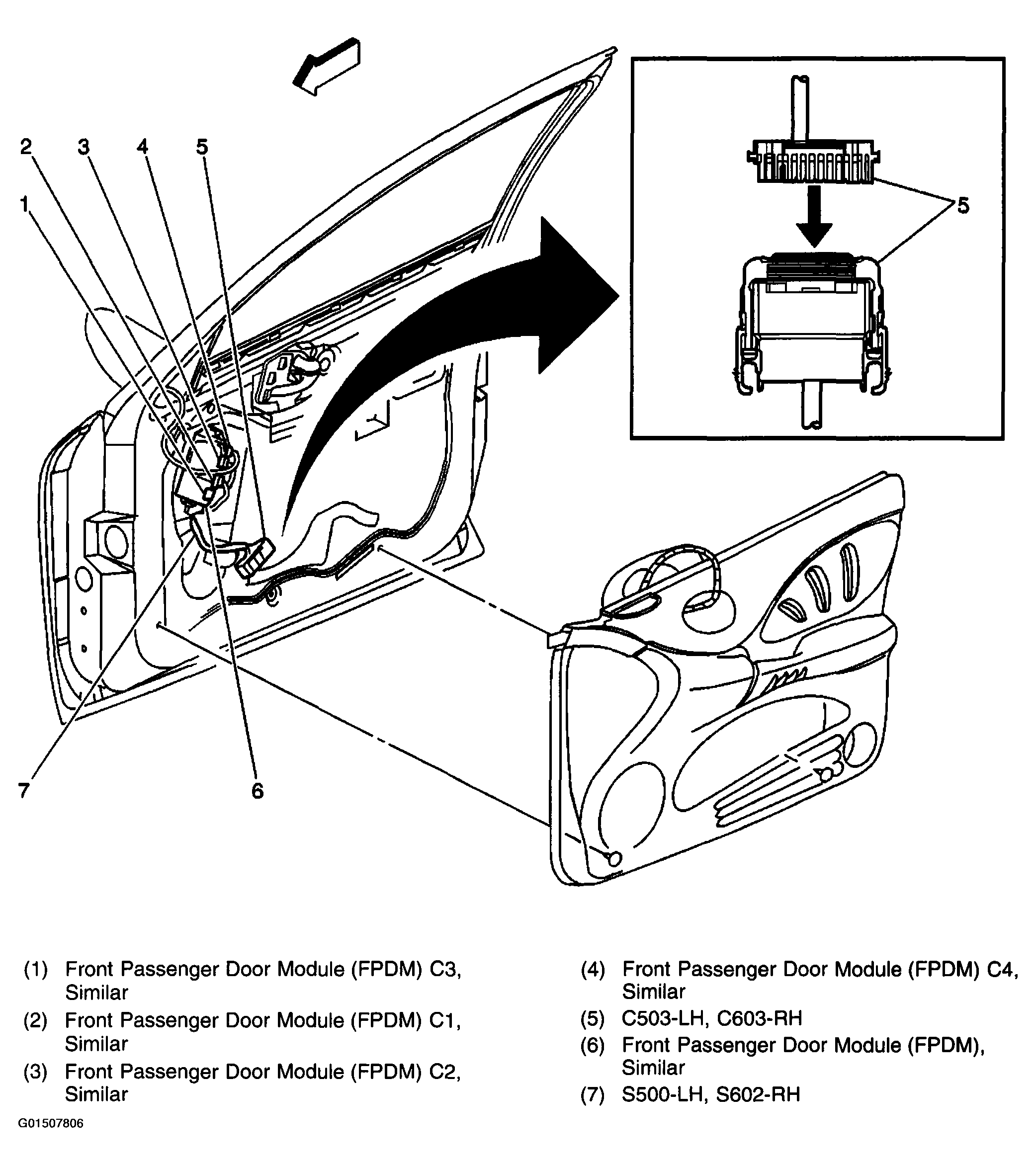

Fig 1: Identifying Front Door Passenger Module (FDPM) Components
Courtesy of GENERAL MOTORS CORP.

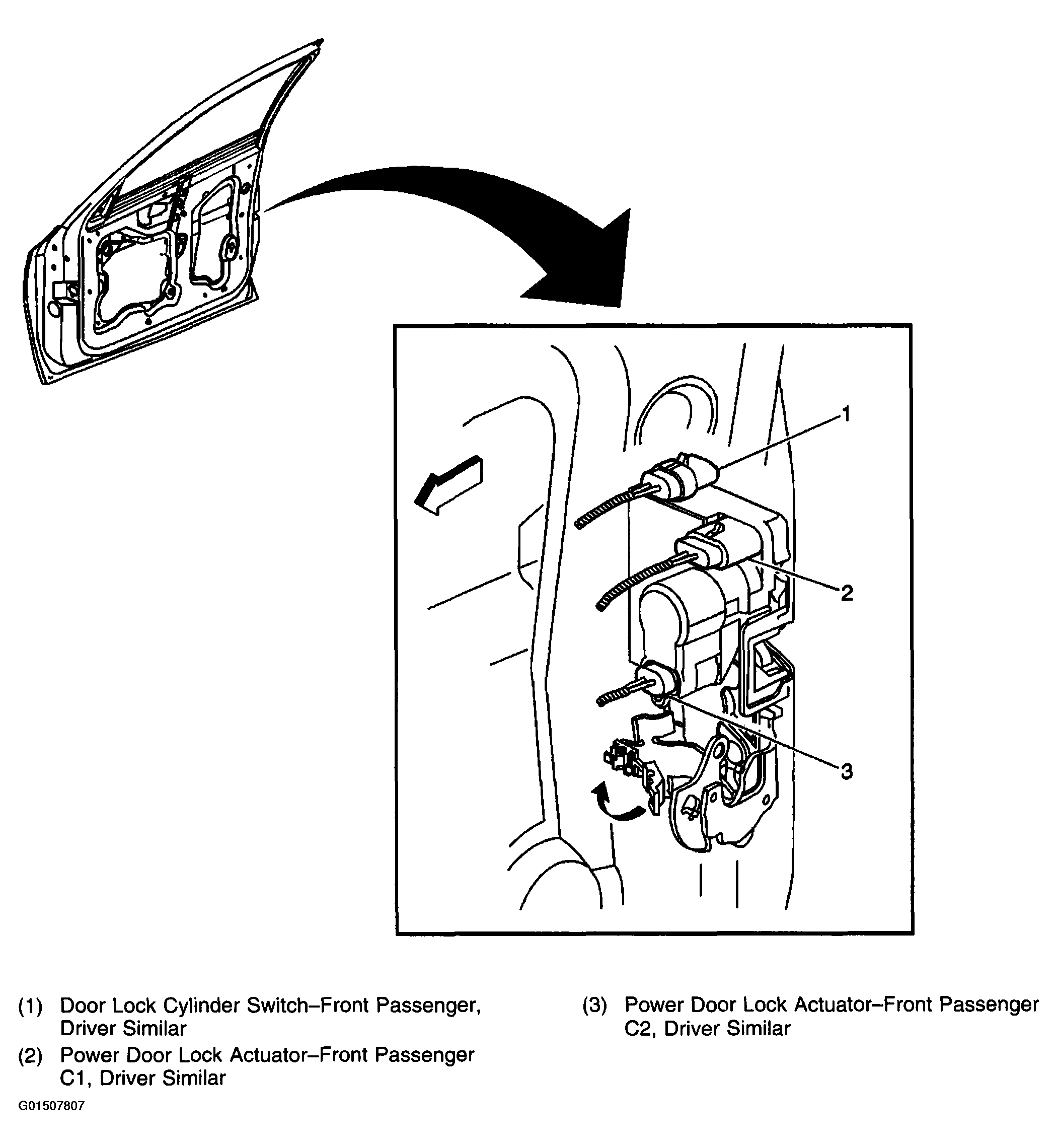

Fig 2: Identifying Right Front Door Latch Assembly Components
Courtesy of GENERAL MOTORS CORP.

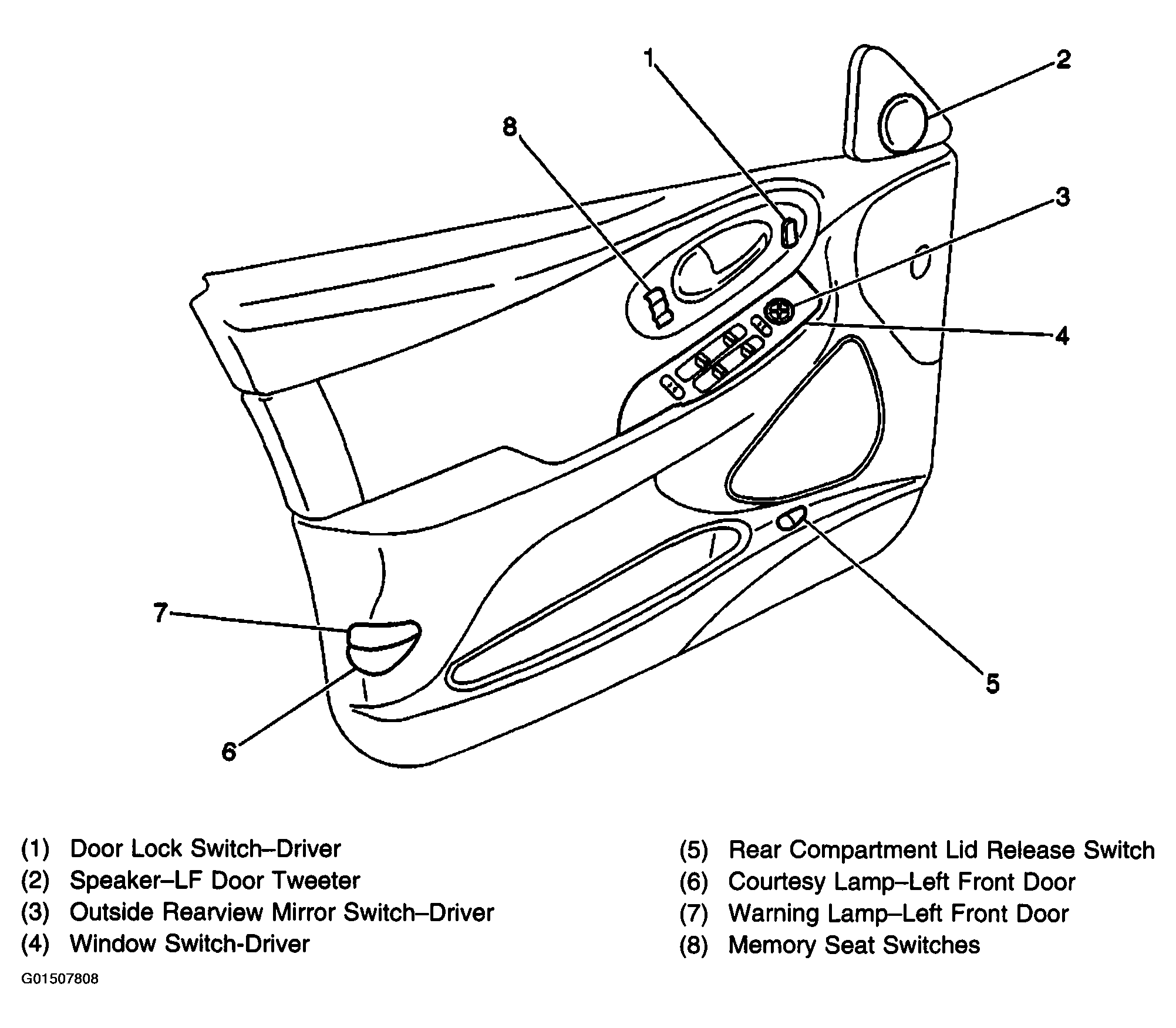

Fig 3: Identifying Left Front Door Trim Panel Components
Courtesy of GENERAL MOTORS CORP.

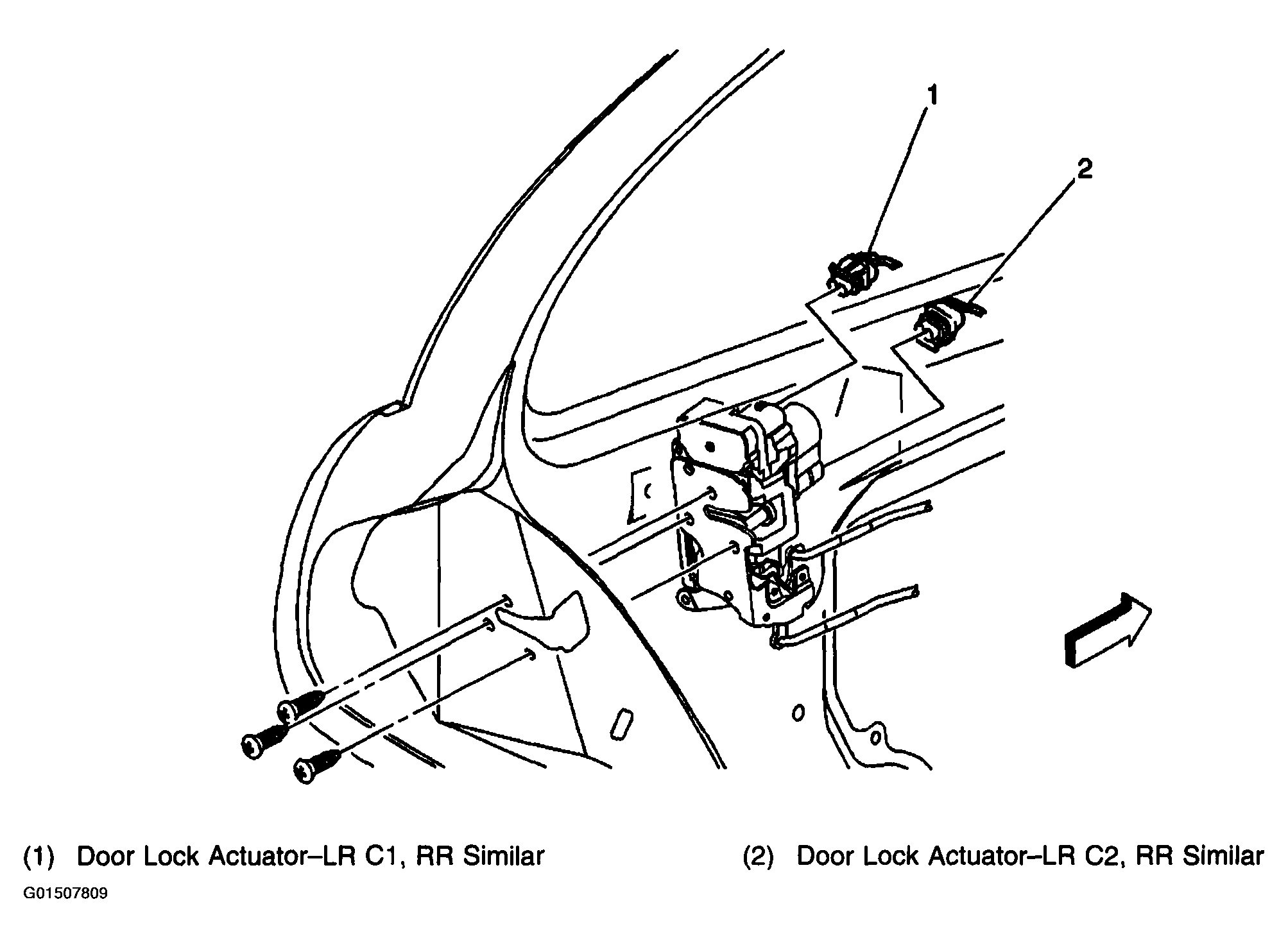

Fig 4: Identifying Left Rear Power Door Lock Actuator Components
Courtesy of GENERAL MOTORS CORP.

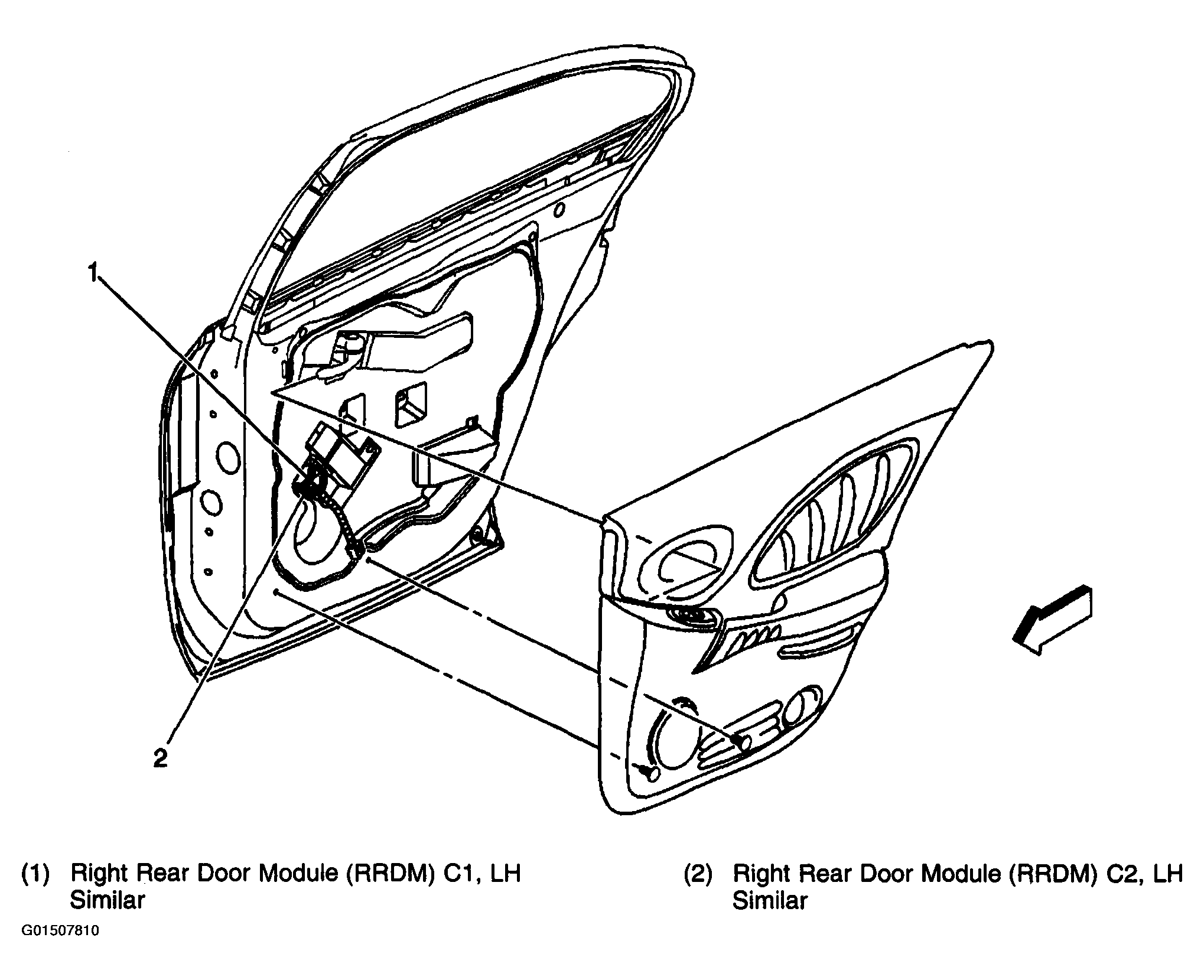

Fig 5: Identifying Right Rear Door Module (RRDM) Components
Courtesy of GENERAL MOTORS CORP.

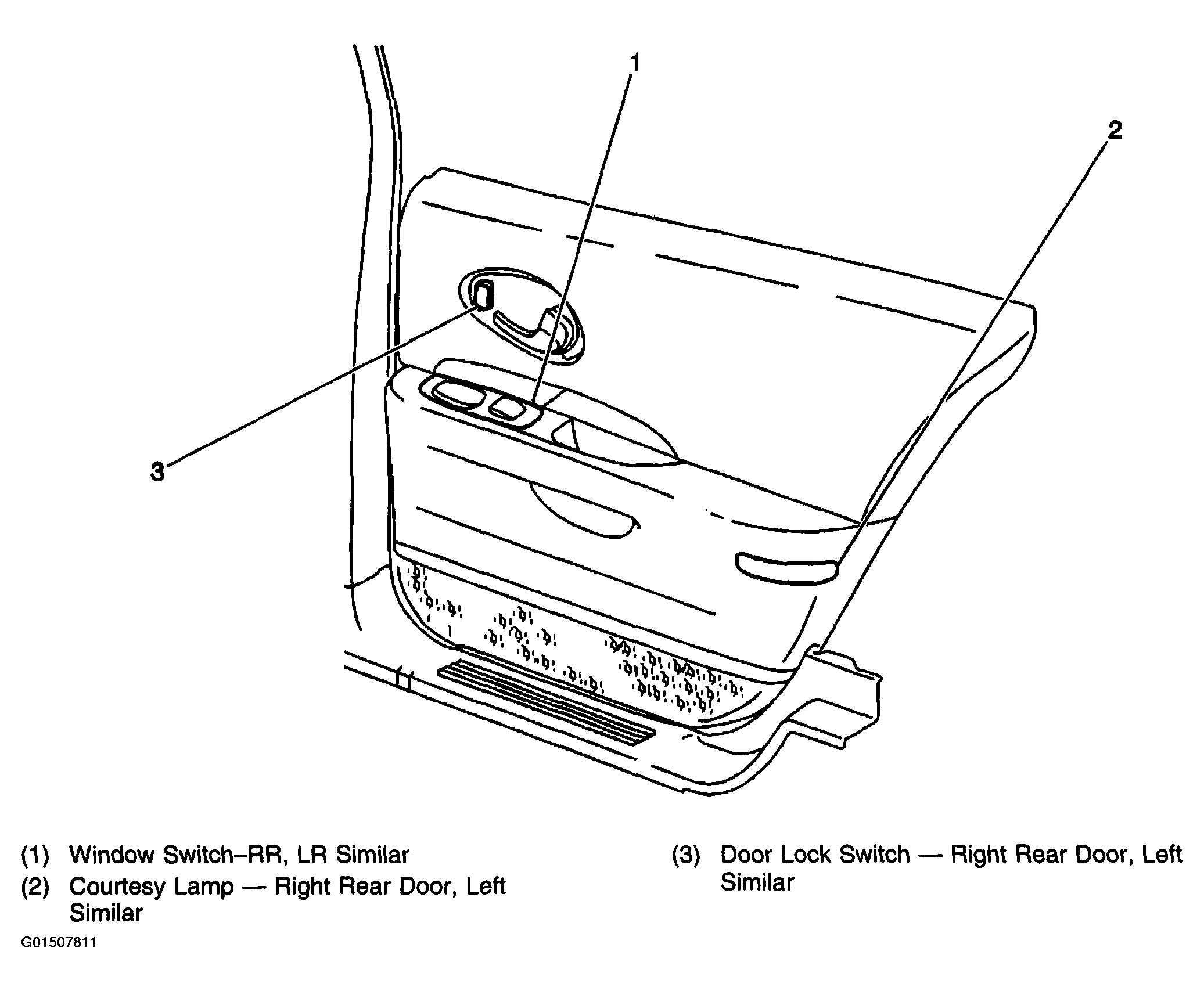

Fig 6: Identifying Right Rear Door Trim Panel Components
Courtesy of GENERAL MOTORS CORP.

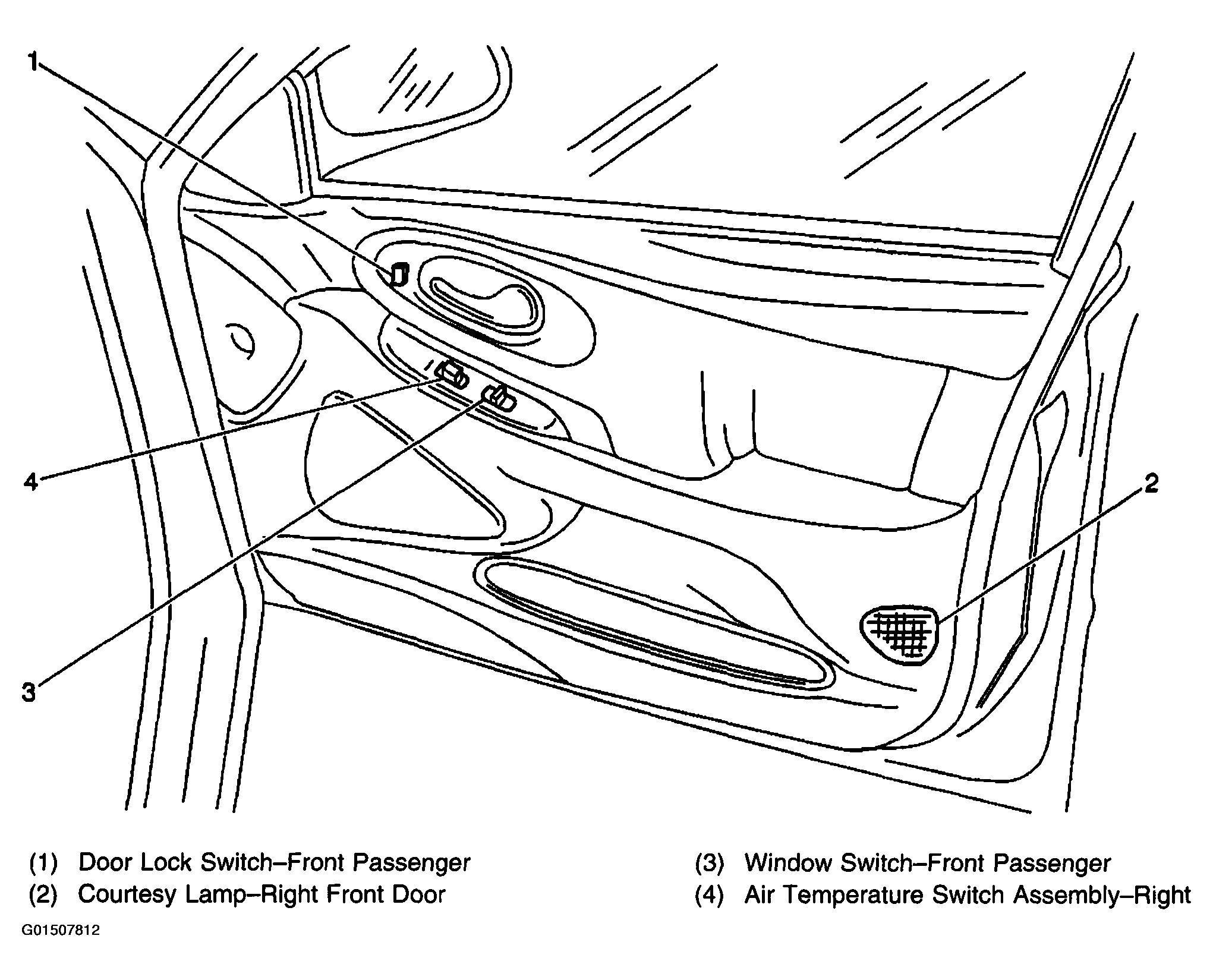

Fig 7: Identifying Right Front Door Trim Panel Components
Courtesy of GENERAL MOTORS CORP.

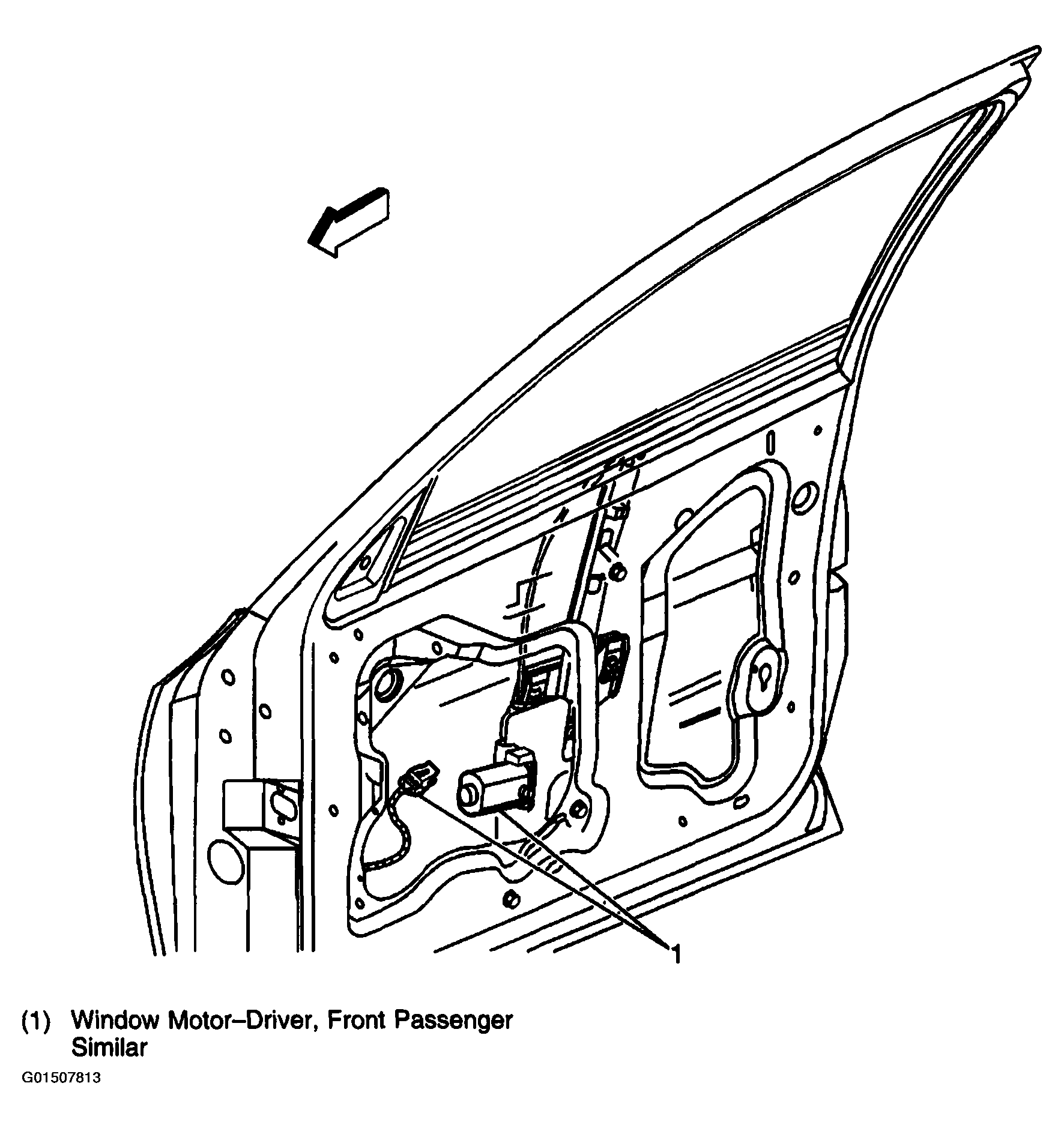

Fig 8: Identifying Driver Power Window Motor Components
