Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the reader/exciter onto the ignition lock cylinder housing (4).
  2. Install the ignition lock cylinder. Refer to IGNITION SWITCH LOCK CYLINDER REPLACEMENT in Instrument Panel, Gages and Console.

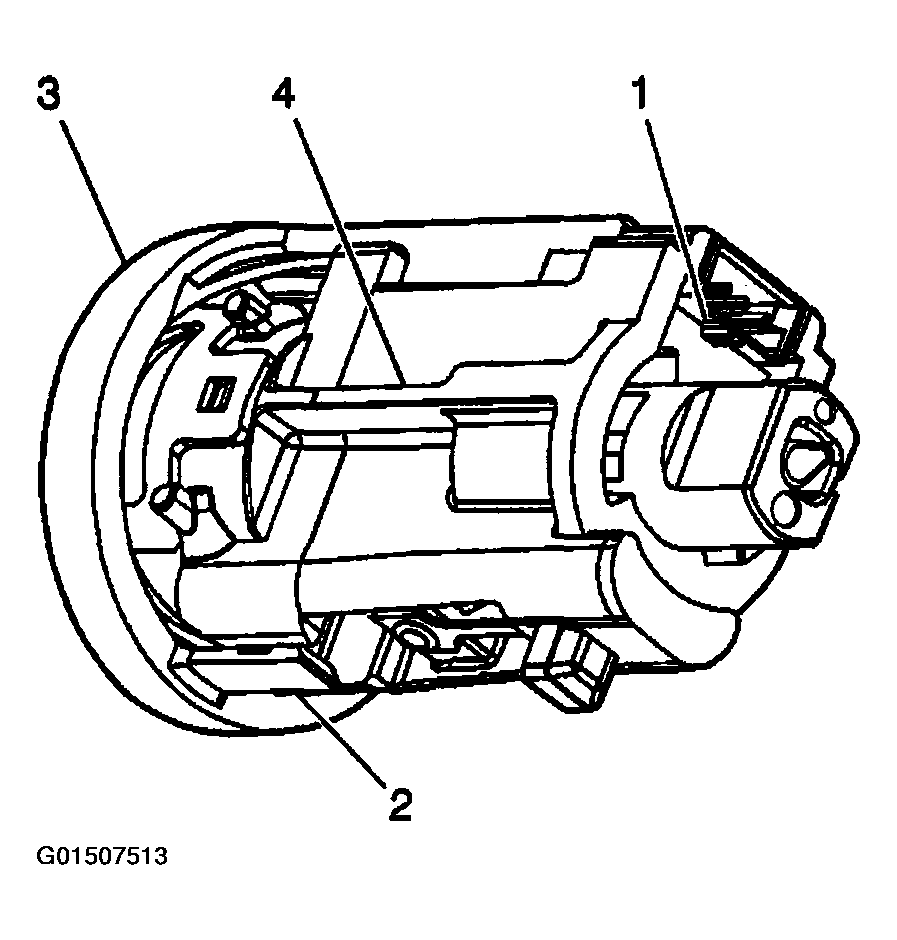

    Fig 1: Installing Theft Deterrent Exciter Module
    G01507513Courtesy of GENERAL MOTORS CORP.
