Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the boost sensor onto the bracket.

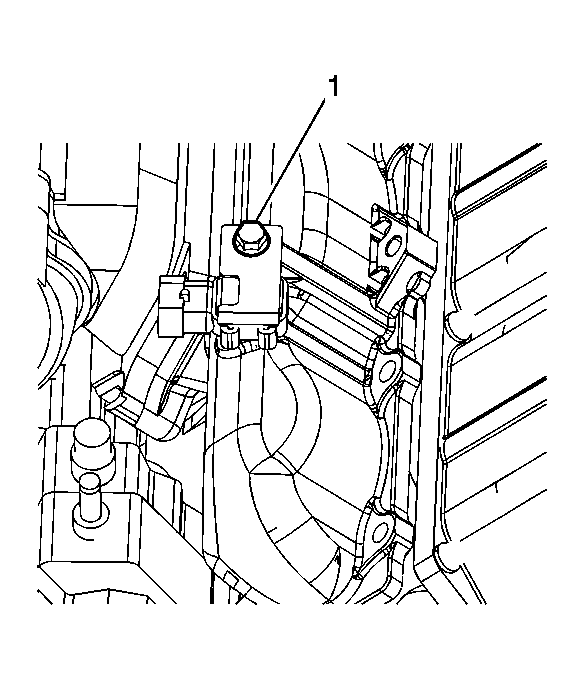

    Fig 1: View Of Boost Sensor Bracket Bolt
    GM1412235Courtesy of GENERAL MOTORS CORP.
  2. Install the boost sensor and bracket.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the boost sensor bracket bolt (1).

    Tighten:  Tighten the bolt to 9 N.m (80 lb in).

  4. Install the right fuel rail fuel feed pipe. Refer to Fuel Rail Fuel Feed Pipe Replacement - Right .
