Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the front wheel hub/speed sensor assembly. Refer to WHEEL BEARING/HUB REPLACEMENT - FRONT  .
  4. Install tool J 43631  onto the wheel hub and stud.

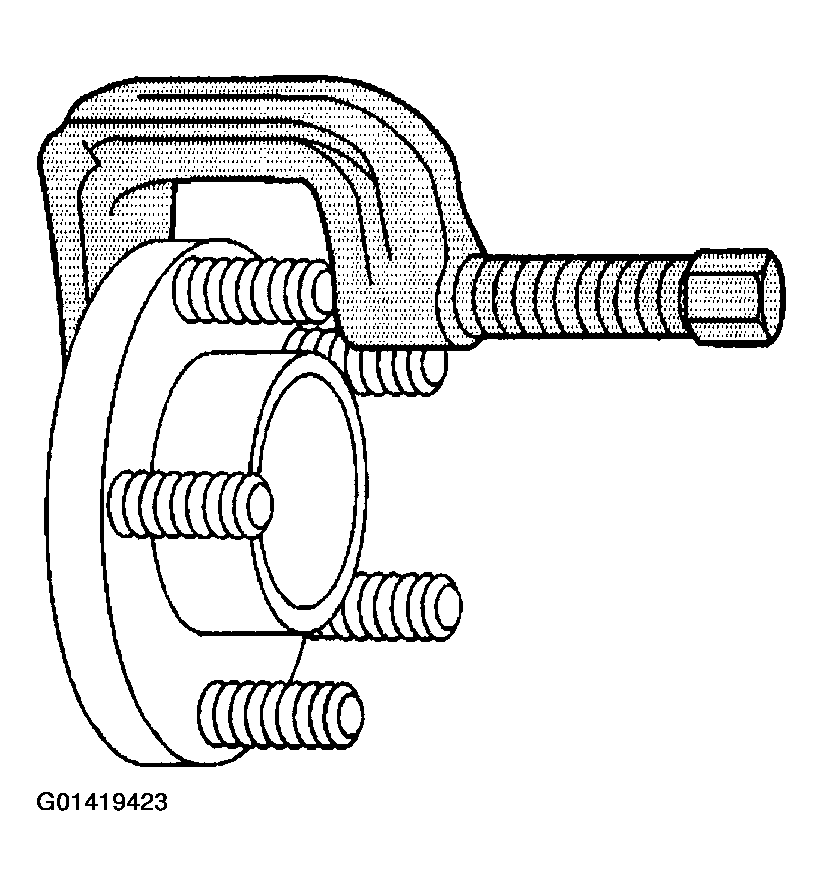

    Fig 1: Installing Tool J 43631 Onto Wheel Hub And Stud
    G01419423Courtesy of GENERAL MOTORS CORP.
  5. Turn the forcing screw in until the stud is pushed out of the wheel hub.
