Brake Fluid Pressure Sensor

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

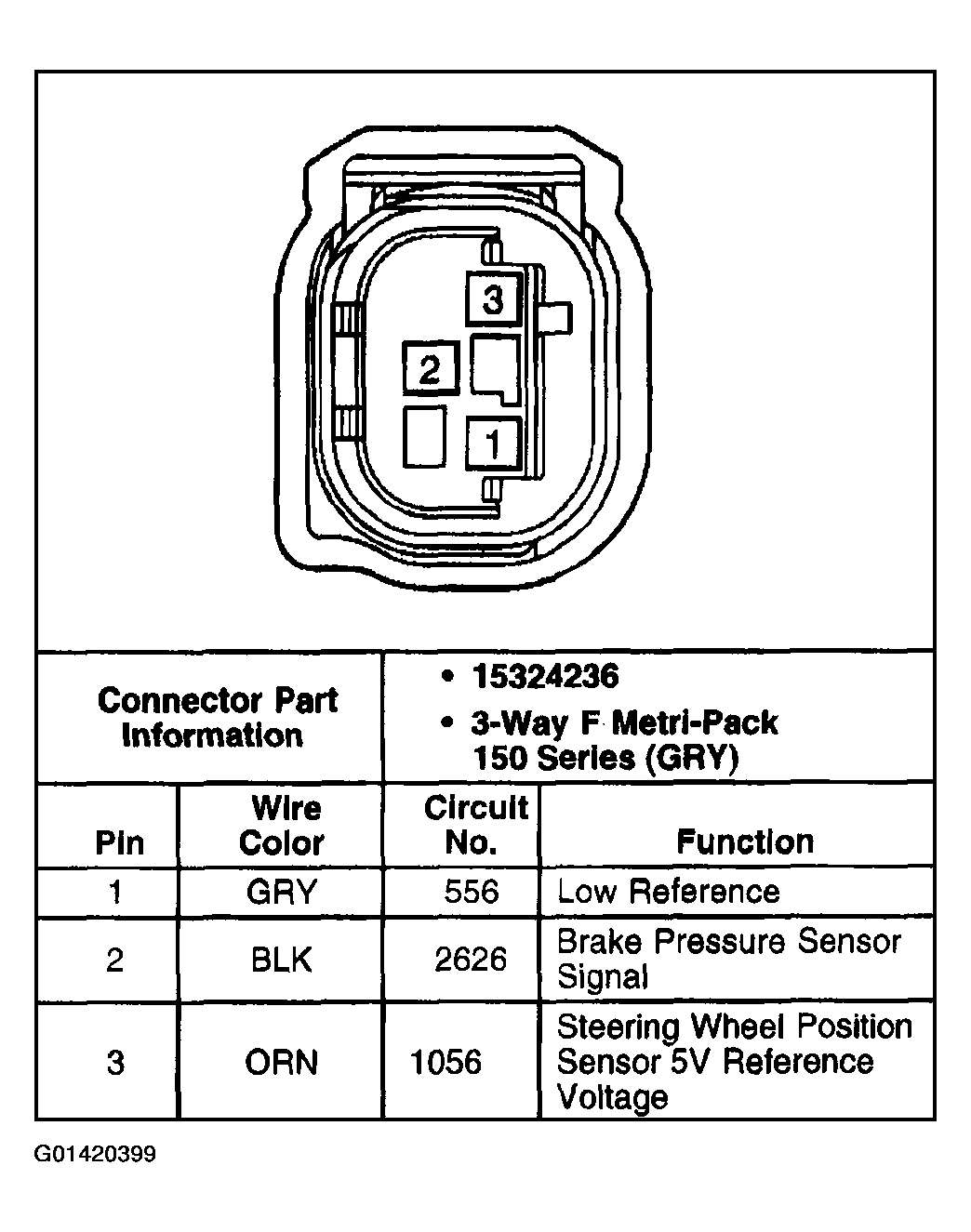

Fig 1: Identifying Brake Fluid Pressure Sensor Connector Terminals

Courtesy of GENERAL MOTORS CORP.
