Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Install the radiator inlet hose to the radiator.
Reposition the radiator inlet hose clamp to the radiator using J 38185 .
Install the radiator inlet hose to the thermostat housing.
Reposition the radiator inlet hose clamp to the thermostat housing using J 38185 .
Install the radiator upper support. Refer to RADIATOR SUPPORT REPLACEMENT .
Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .

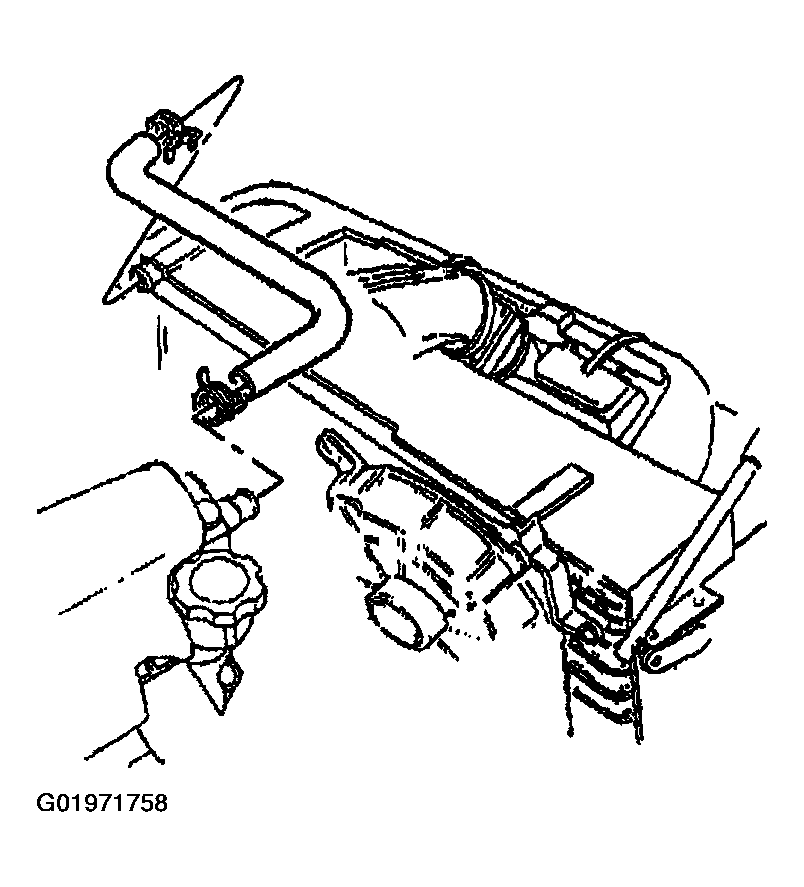

Fig 1: Installing Radiator Inlet Hose To Thermostat Housing & Radiator
Courtesy of GENERAL MOTORS CORP.
