Installation Procedure
WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

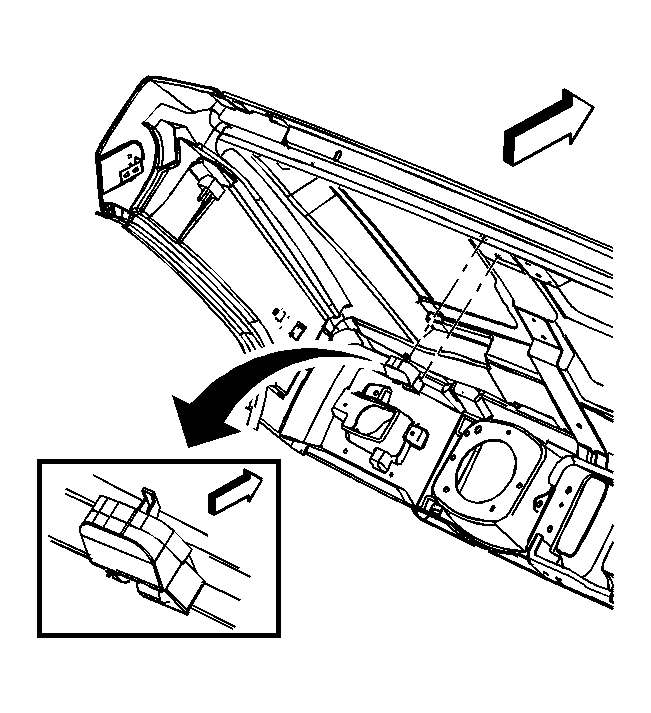

- Position the lamp to the hood.
Courtesy of GENERAL MOTORS CORP.
- Tilt the lamp to engage the top hook to the hood.
- Apply light pressure at the bottom of the lamp to engage the retaining clip.
- Connect the electrical connector.
- Close the hood.
