Entertainment Component Views

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

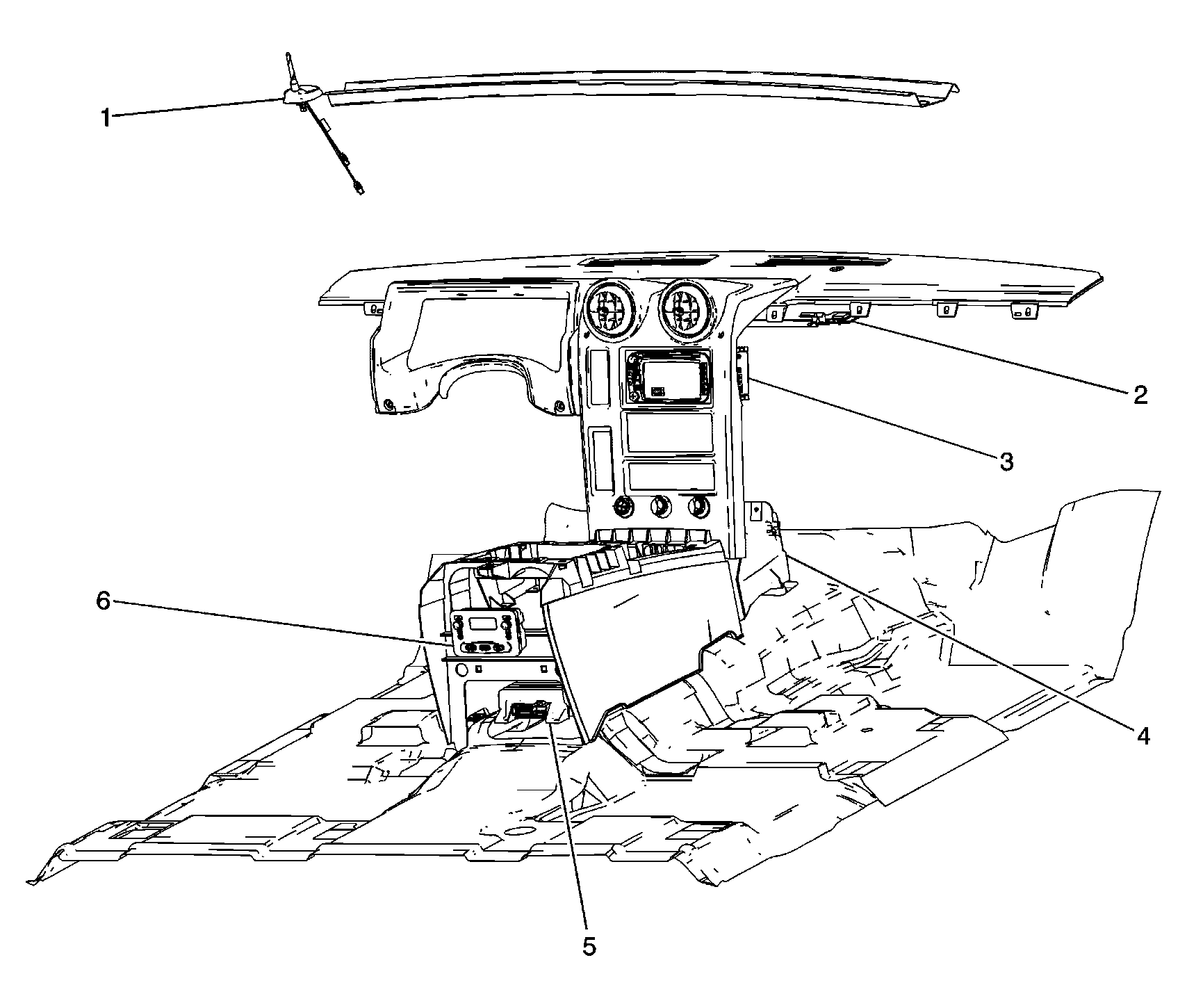

Fig 1: Entertainment Component Views (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular and Navigation Antenna
2	Navigation Radio Antenna (UM8)
3	Radio w/DVD
4	Speaker - Front Subwoofer
5	Audio Amplifier
6	Rear Seat Audio (RSA) Controller

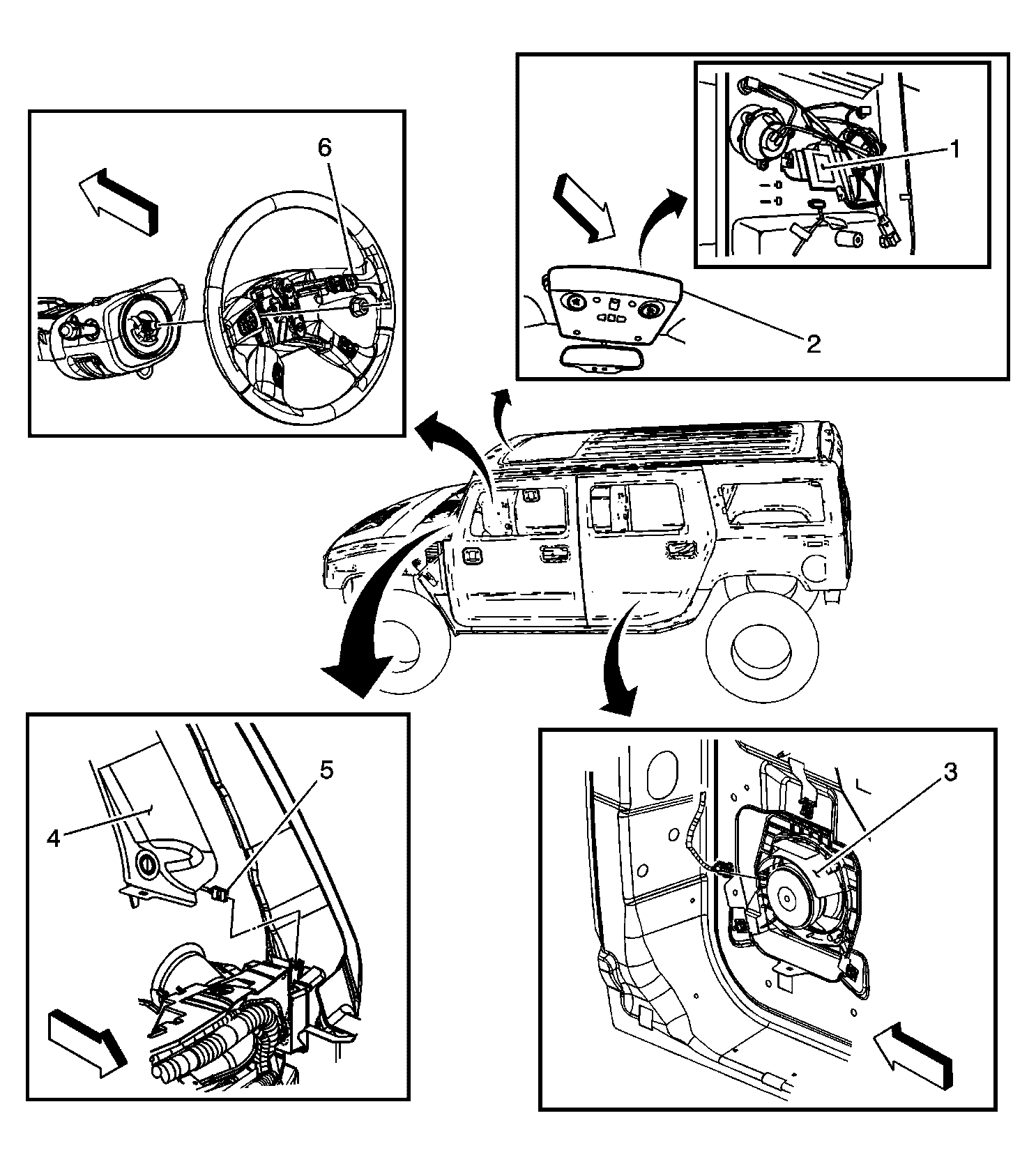

Fig 2: Entertainment Component Views (2 of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Garage Door Opener
2	Overhead Console
3	Speaker - LR Door
4	Windshield Side Garnish Molding
5	Speaker - Left A Pillar Tweeter Connector
6	Steering Wheel Controls

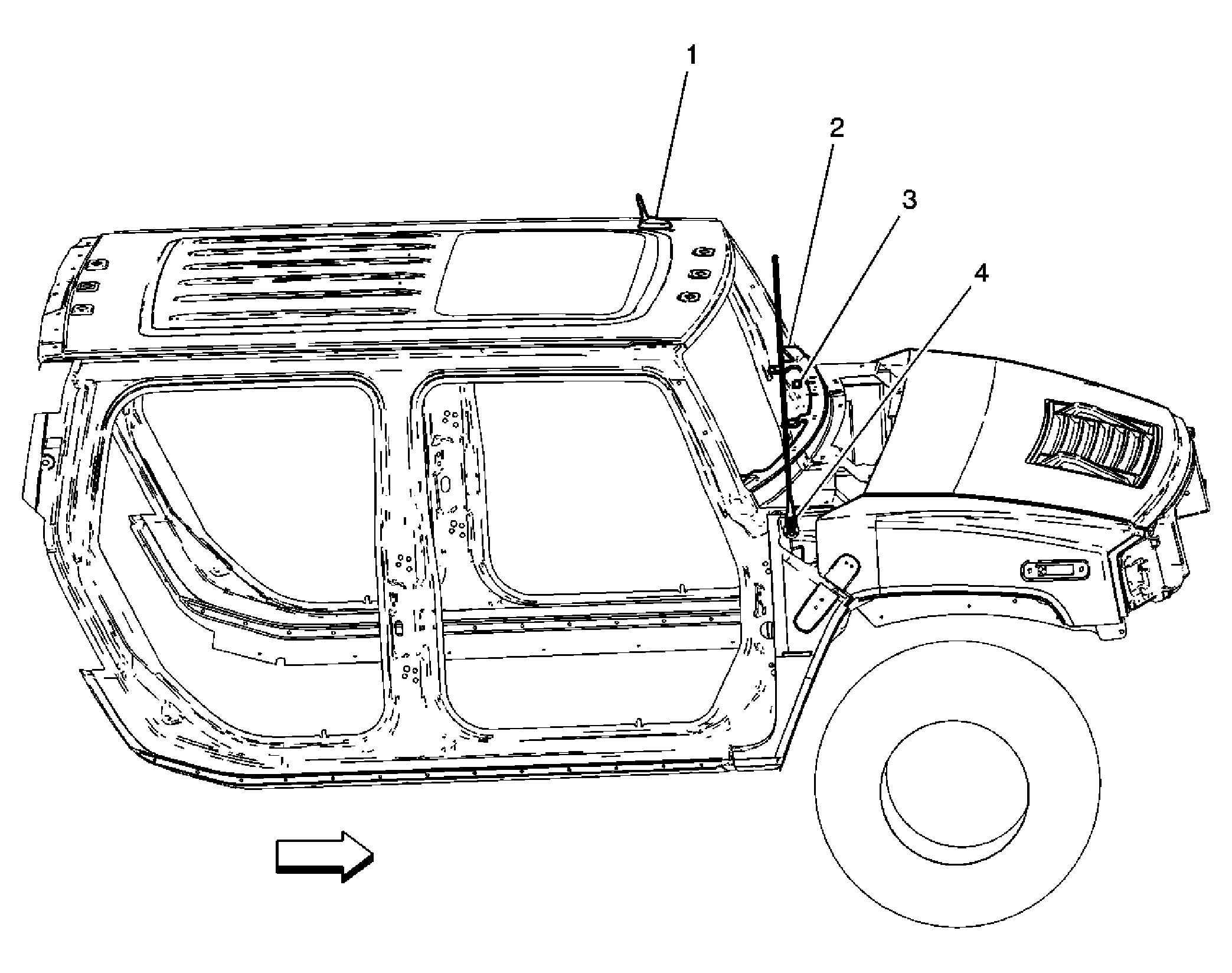

Fig 3: Antenna Locations Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular and Navigational Antenna
2	Radio Antenna
3	Global Positioning System (GPS) Antenna (I/P)
