Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the liftgate applique to the liftgate.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.

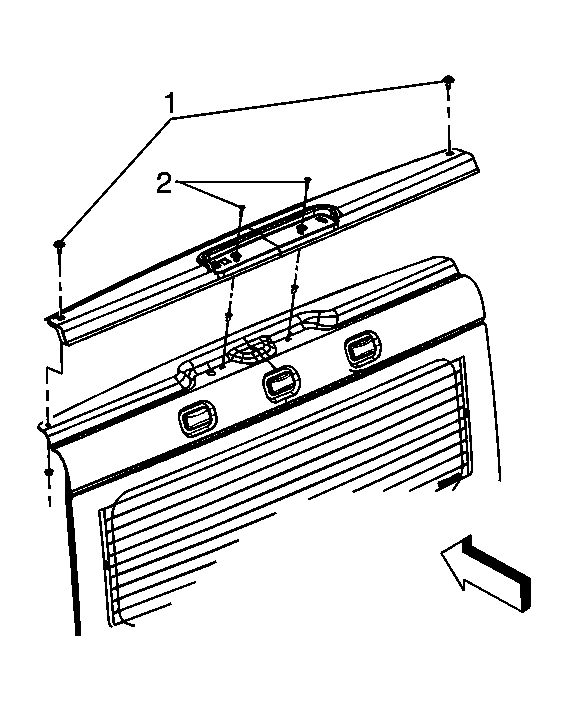

    Fig 1: Liftgate Applique
    GM880552Courtesy of GENERAL MOTORS CORP.
  2. Install the outer applique fasteners (1).
  3. Install the inner applique fasteners (2).

    Tighten:  Tighten the fasteners to 3 N.m (27 lb in).

  4. Install the high mounted stop lamp. Refer to High Mounted Stop Lamp Replacement (SUV) in Lighting Systems.
  5. Close the liftgate.
