Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: Whenever the brake rotor has been separated from the hub/axle flange, any rust or contaminants should be cleaned from the hub/axle flange and the brake rotor mating surfaces. Failure to do this may result in excessive assembled lateral runout (LRO) of the brake rotor, which could lead to brake pulsation.
  1. Use the J 42450-A  to clean all rust and contaminants from the mating surface of the hub flange. See Special Tools and Equipment .
  2. Use the J 41013  to clean all rust and contaminants from the inside diameter of the hat section of the brake rotor to prevent any foreign material from getting between the brake rotor and the hub flange. See Special Tools and Equipment .
  3. Inspect the mating surfaces of the hub/axle flange and the rotor to ensure that there are no foreign particles or debris remaining.
    4. IMPORTANT: If the rotor was removed using the jack screw method you must ensure that the hub flange is free of nicks or marks caused by this procedure. Remove all raised nicks or marks before installing the rotor.
    Fig 1: View Of Front Brake Rotor And Hub
    GM370132Courtesy of GENERAL MOTORS CORP.
  4. Align the rotor to its original position on the hub, if applicable, and install the rotor.
  5. If the brake rotor was removed and installed as part of a brake system repair, measure the assembled lateral runout (LRO) of the brake rotor to ensure optimum performance of the disc brakes. Refer to Brake Rotor Assembled Lateral Runout (LRO) Measurement .
  6. If the brake rotor assembled LRO measurement exceeds the specification, bring the LRO to within specifications. Refer to Brake Rotor Assembled Lateral Runout (LRO) Correction .
  7. Install the caliper and caliper mounting bracket assembly.
  8. Perform the following procedure before installing the brake caliper bracket mounting bolts.
    • Remove all traces of the original adhesive patch.
    • Clean the threads of the bolt with brake parts cleaner or the equivalent and allow to dry.
    • Apply Threadlocker GM P/N 12345493 (Canadian P/N 10953488) to the threads of the bolt.

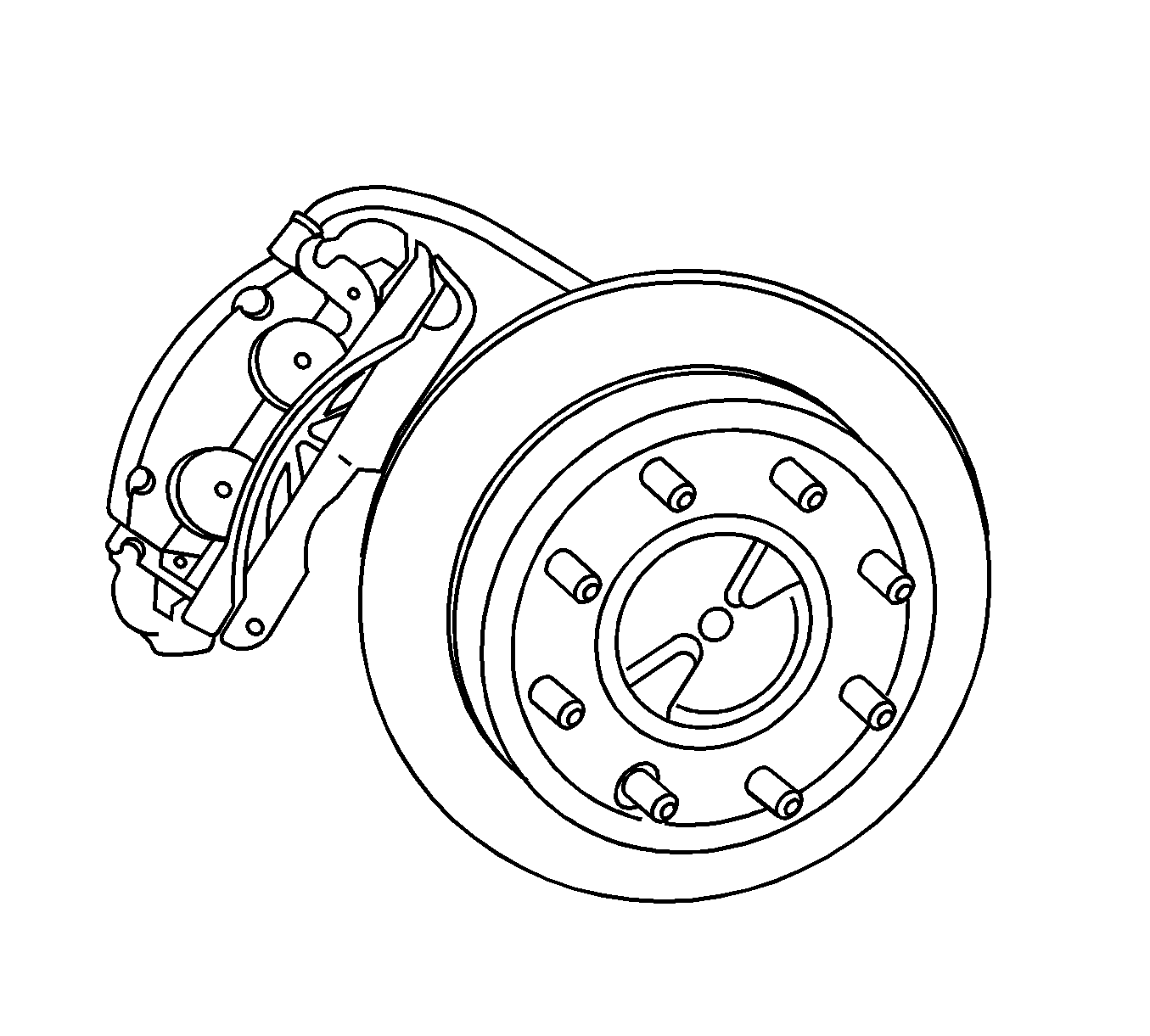

    9. Fig 2: View Of Brake Caliper & Brake Caliper Bracket
    GM924321Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  9. Install the 2 caliper bracket mounting bolts.

    Tighten:  Tighten the brake caliper bracket mounting bolts to 300 N.m (221 lb ft).

  10. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  11. Lower the vehicle.
  12. With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
  13. Slowly release the brake pedal.
  14. Wait 15 seconds, then repeat steps 12-13 until a firm pedal is obtained. This will properly seat the brake caliper pistons and brake pads.
  15. Fill the master cylinder reservoir to the proper level with clean brake fluid. Refer to Master Cylinder Reservoir Filling in Hydraulic Brakes.
