Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the coaxial cable to the radio.
- Connect the wire connectors.

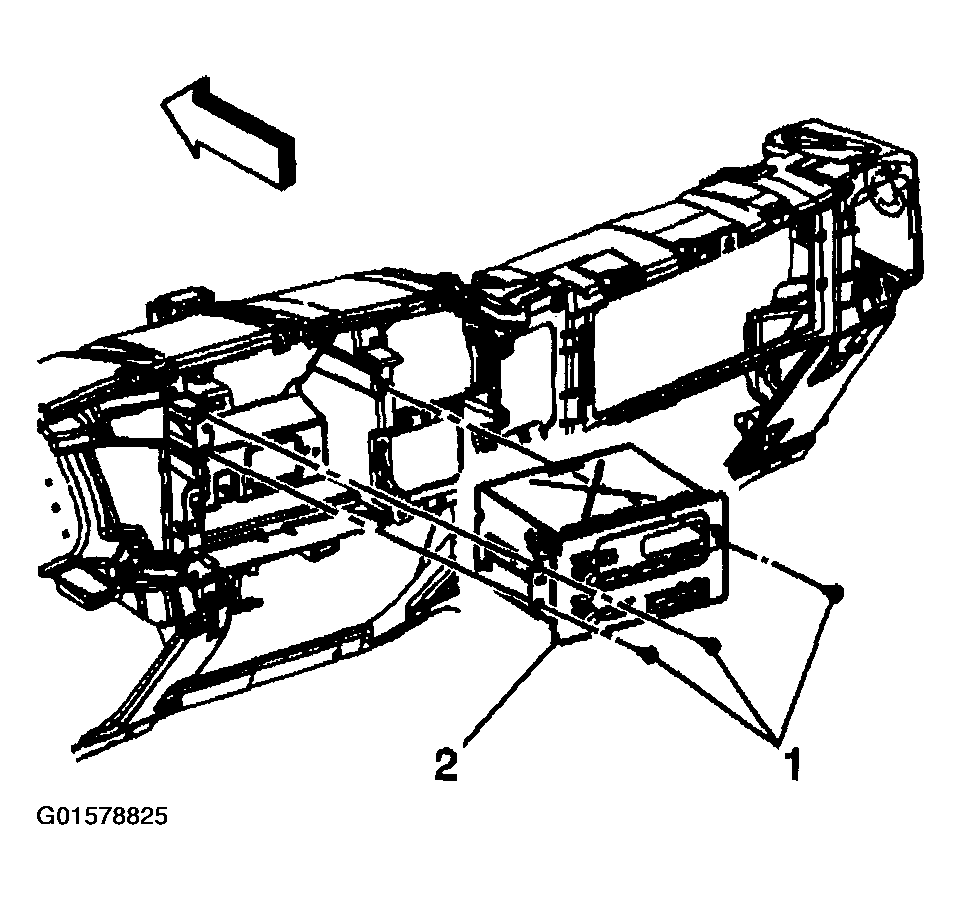

- Push in the radio assembly in the opening in order to install the screws.NOTE: Refer to FASTENER NOTICE .
- Install the 3 screws (1).
Tighten
Tighten the screws to 1.6 N.m (14 lb in).
- Install the cluster bezel. Refer to BEZEL REPLACEMENT-INSTRUMENT PANEL (I/P) CLUSTER .
- Calibrate the new radio assembly. Refer to SERVICE PROGRAMMING SYSTEM (SPS) .
