Removal Procedure
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
If a window is cracked but still intact, crisscross the window with masking tape in order to reduce the risk of damage or personal injury.
IMPORTANT:
Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and interior trim.
- Open the side access door.
- Cover to protect the following parts from broken glass if necessary:
- Upper dash pad.
- Defroster outlets and A/C outlets.
- Seats and carpeting.
- Remove the side access door trim, if equipped. Refer to TRIM PANEL REPLACEMENT-SIDE ACCESS DOOR
.
CAUTION: When working with any type of glass or sheet metal with exposed or rough edges, wear approved safety glasses and gloves in order to reduce the chance of personal injury.IMPORTANT: Keep the cutting edge of the tool against the hinged body side window frame. Do this from inside the vehicle.
- This will allow the urethane adhesive to be separated from the hinged body side window frame.
- Leave a base of urethane on the pinchweld flange.
- The only suitable lubrication is clear water.

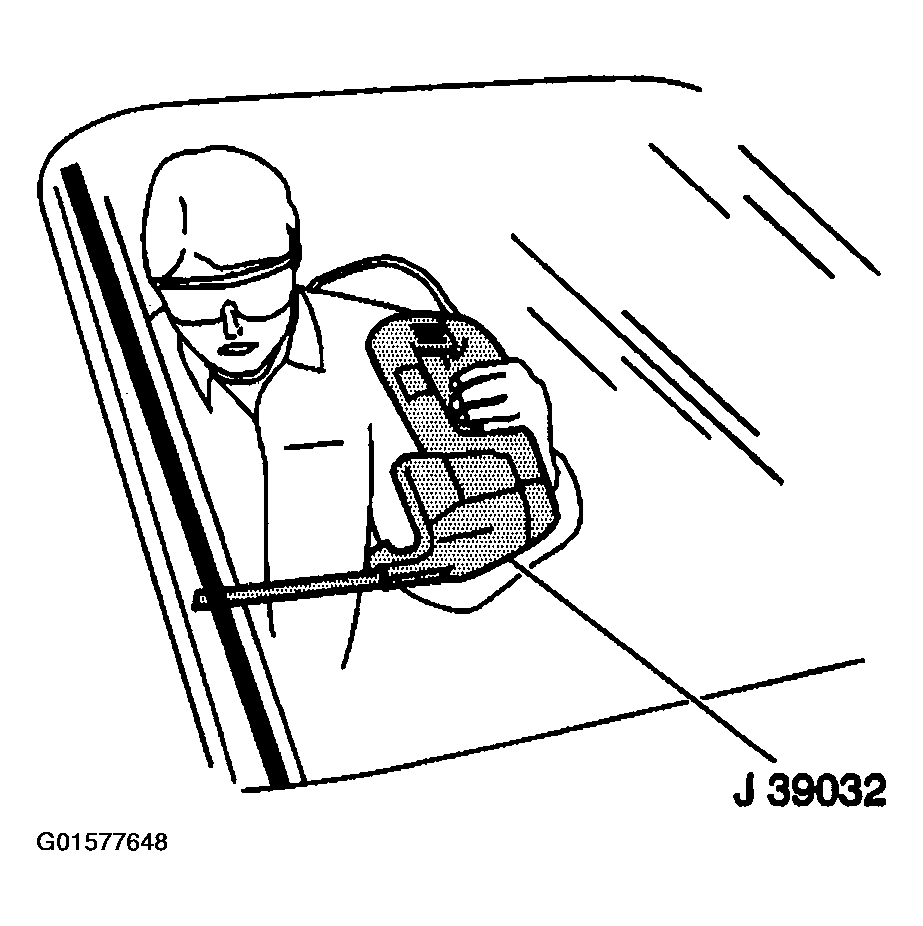

- Use J 39032 or equivalent in order to remove the hinged body side window.
- If the original hinged body side window frame is damaged it must be replaced, if equipped.

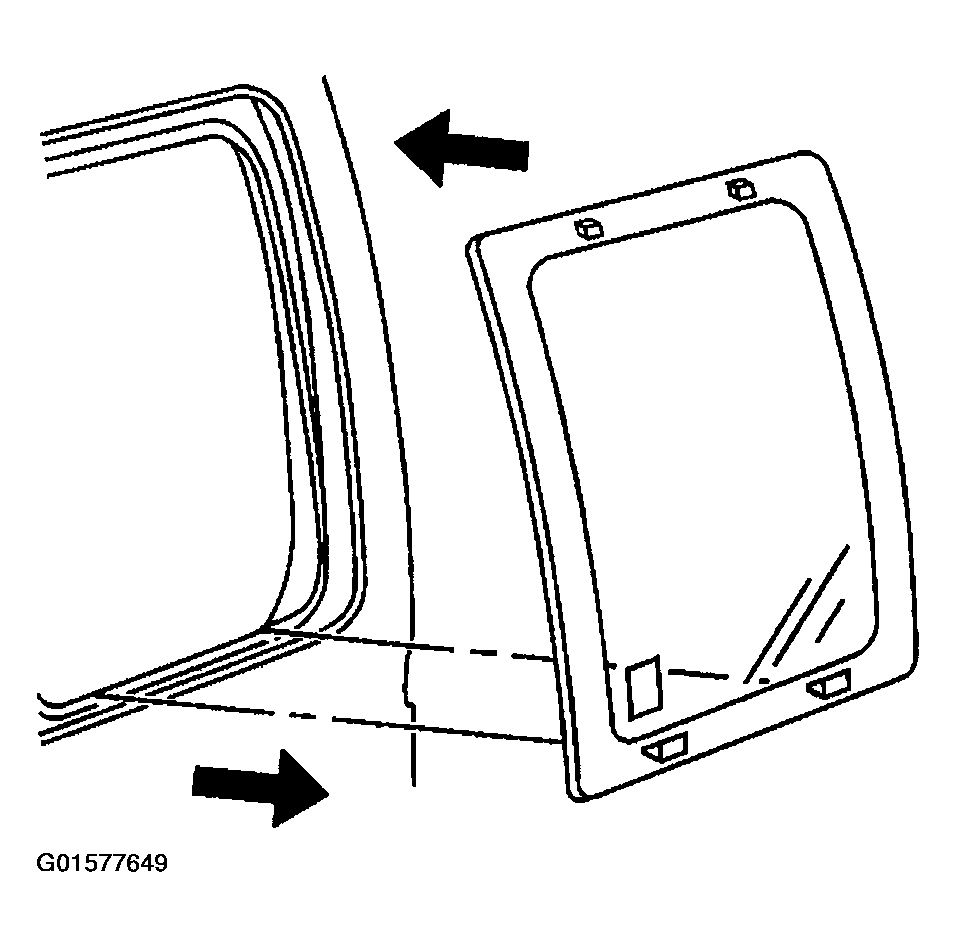

- With the aid of an assistant, remove the window from the opening.
