Removal Procedure
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the I/P top trim panel. Refer to TRIM PANEL REPLACEMENT-INSTRUMENT PANEL (I/P) UPPER .
- Remove the hinge pillar trim. Refer to Trim Panel Replacement-Hinge Pillar .
- Disconnect the headliner wire connectors from the junction block located next to the clutch or brake pedal.
- Remove the wire harness retainers along the windshield pillar and I/P assembly.
- Remove the rear quarter trim panels, if necessary. Refer to Trim Panel Replacement-Rear Quarter (Regular Cab) or Trim Panel Replacement-Rear Quarter (Extended Cab) or Trim Panel Replacement-Rear Quarter (Crew Cab) .
- Remove the overhead console, if equipped, Refer to Console Replacement-Overhead .
- Remove the DVD player, if equipped. Refer to DVD PLAYER REPLACEMENT .
- Remove both front sunshades. Refer to Sunshade Replacement .
- Remove the rear coat hook, if equipped. Refer to Coat Hook Replacement .
- Remove the interior dome lamp. Refer to DOME LAMP REPLACEMENT .
- Remove the assist handles, if equipped. Refer to Assist Handle Replacement-Front .

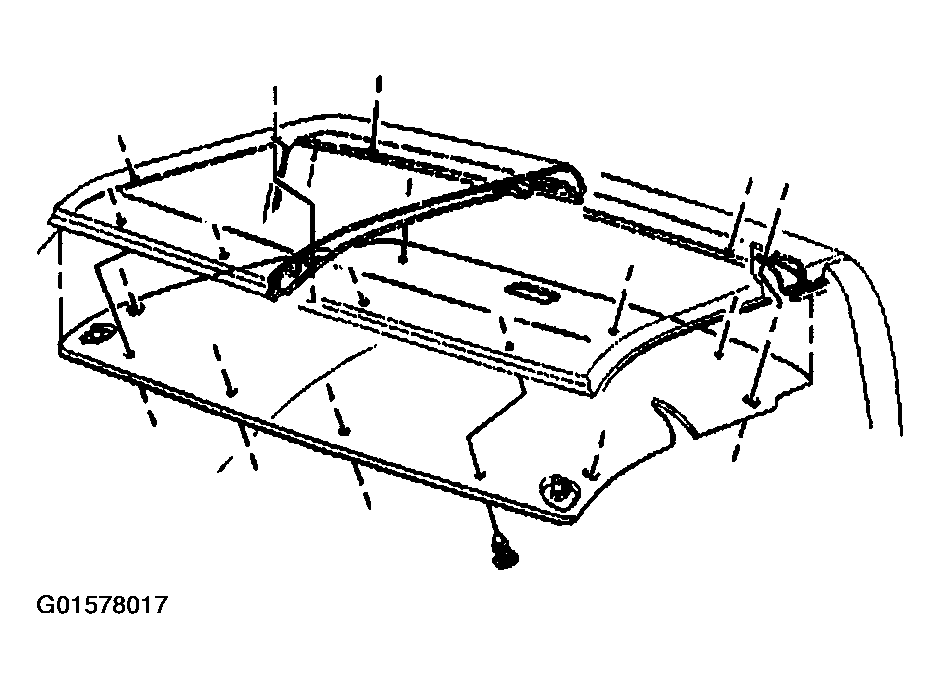

- Disengaging the front of the headliner from the roof.
- If replacing the crew can headliner, remove the rear window from the vehicle. Refer to REAR WINDOW REPLACEMENT (PICKUP) .
- Remove the headliner from the vehicle by grasping the headliner on the left and the right sides near the front of the cab.
