Assist Step Replacement (Denali/Escalade): Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Avalanche, 2003 Cadillac Escalade EXT, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

Removal Procedure

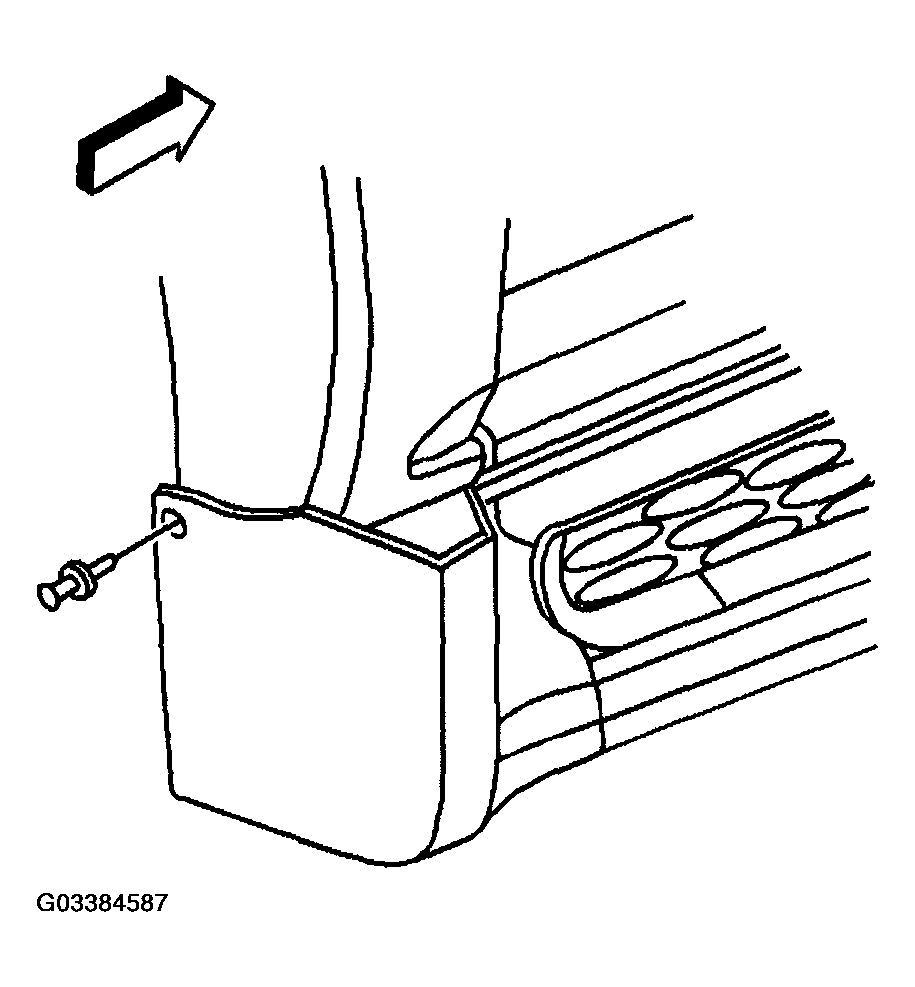

Remove the push-in retainer from the assist step front cover.
Remove the cover from the vehicle.

Fig 1: Removing Push-In Retainer From Assist Step Front Cover
Courtesy of GENERAL MOTORS CORP.
Remove the retainer clip from the assist step rear cover.
Remover the cover from the vehicle.

Fig 2: Removing Retainer Clip From Assist Step Rear Cover
Courtesy of GENERAL MOTORS CORP.

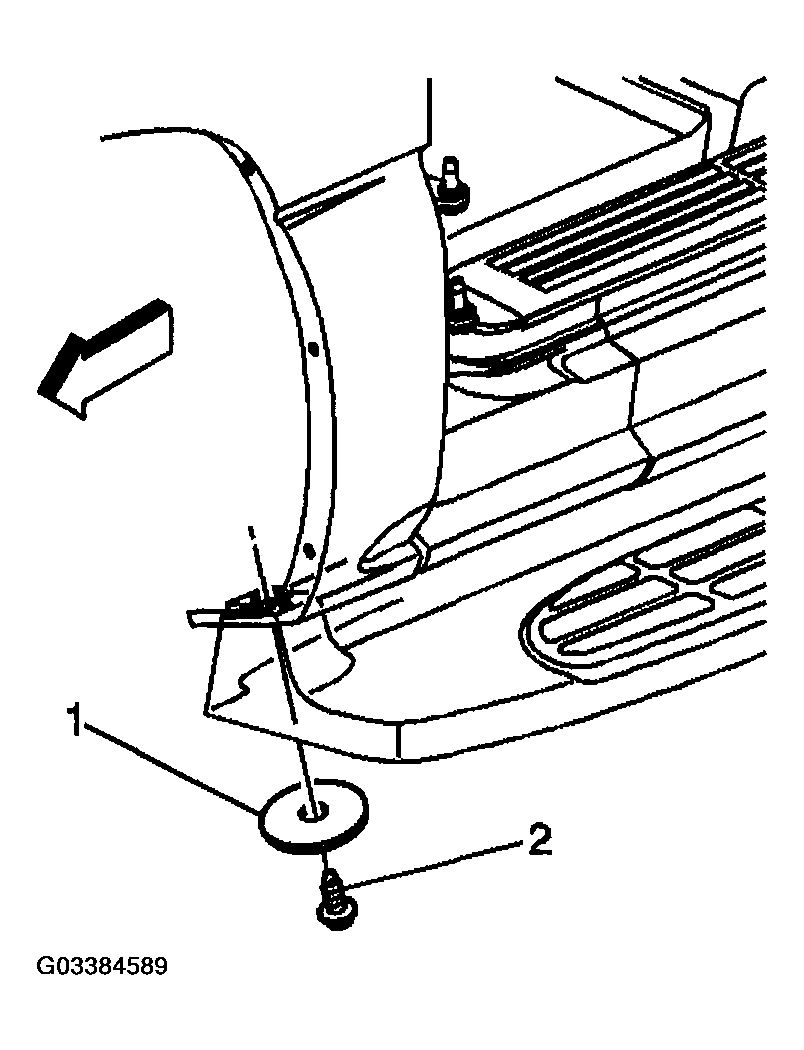

Remove the bottom fender bolt (2) and the washer (1) from the vehicle.

Fig 3: Removing Bottom Fender Bolt And Washer From Vehicle
Courtesy of GENERAL MOTORS CORP.

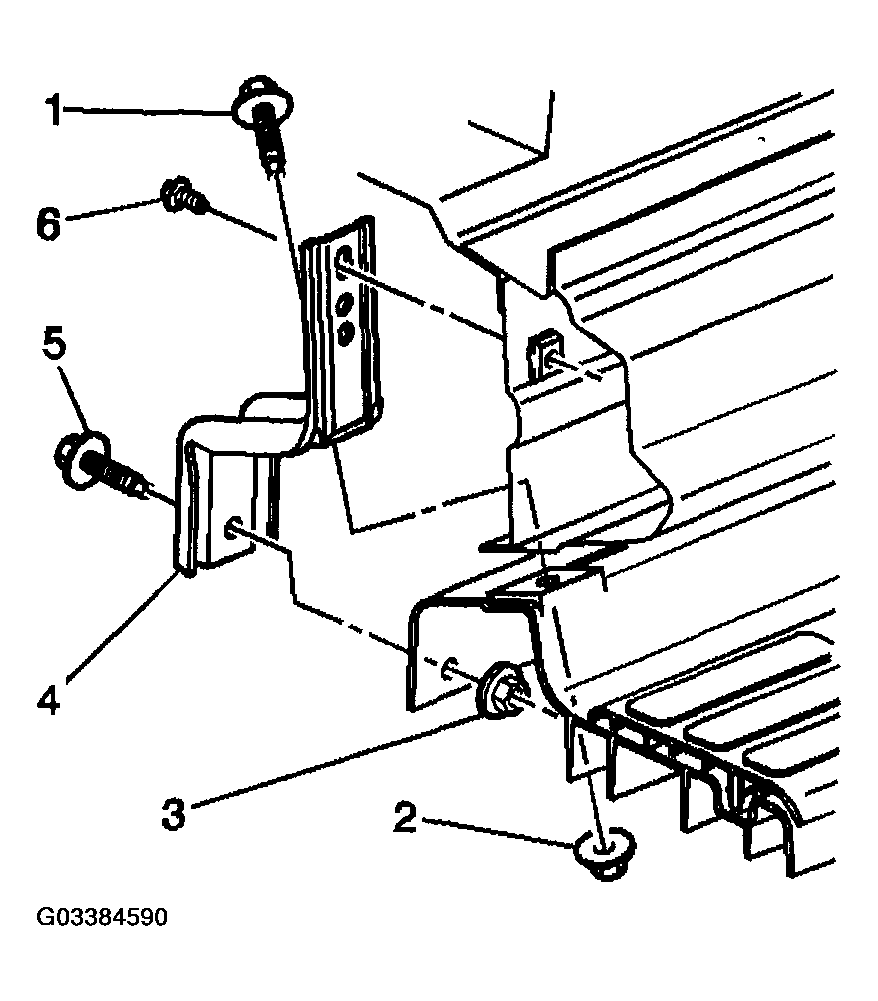

With the aid of an assistant, remove the bolts (1, 5) and the nuts (2, 3) from the assist step brackets.
Remove the assist step from the vehicle.
Remove the heater and A/C tubes retaining nuts from the studs, if equipped. Refer to HEATER PIPE REPLACEMENT -- AUXILIARY in Heating, Ventilation, and Air Conditioning.
Remove the assist step bolts (6) from the brackets.
Remove the brackets (4) from the vehicle.

Fig 4: Removing Assist Step Bolts From Brackets
Courtesy of GENERAL MOTORS CORP.
