Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Avalanche, 2003 Cadillac Escalade EXT, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the frame to the shield bolts.
Remove the shield from the vehicle. 15 Series is shown, 25 Series is similar.

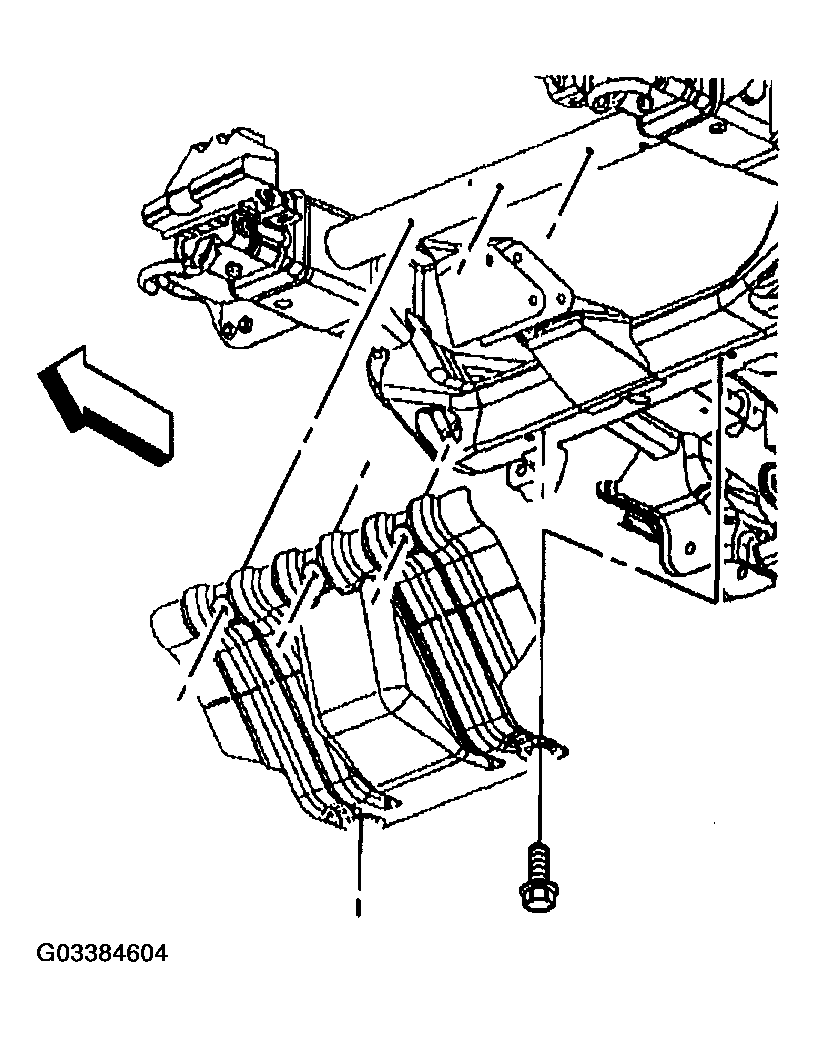

Fig 1: Removing Frame To Shield Bolts
Courtesy of GENERAL MOTORS CORP.
