Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Avalanche, 2003 Cadillac Escalade EXT, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

Position the hitch platform to the vehicle.
NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES .
Install the platform hitch bolts to the frame rails and the rear bumper.
Tighten

Tighten the bolts to 125 N.m (92 lb ft).

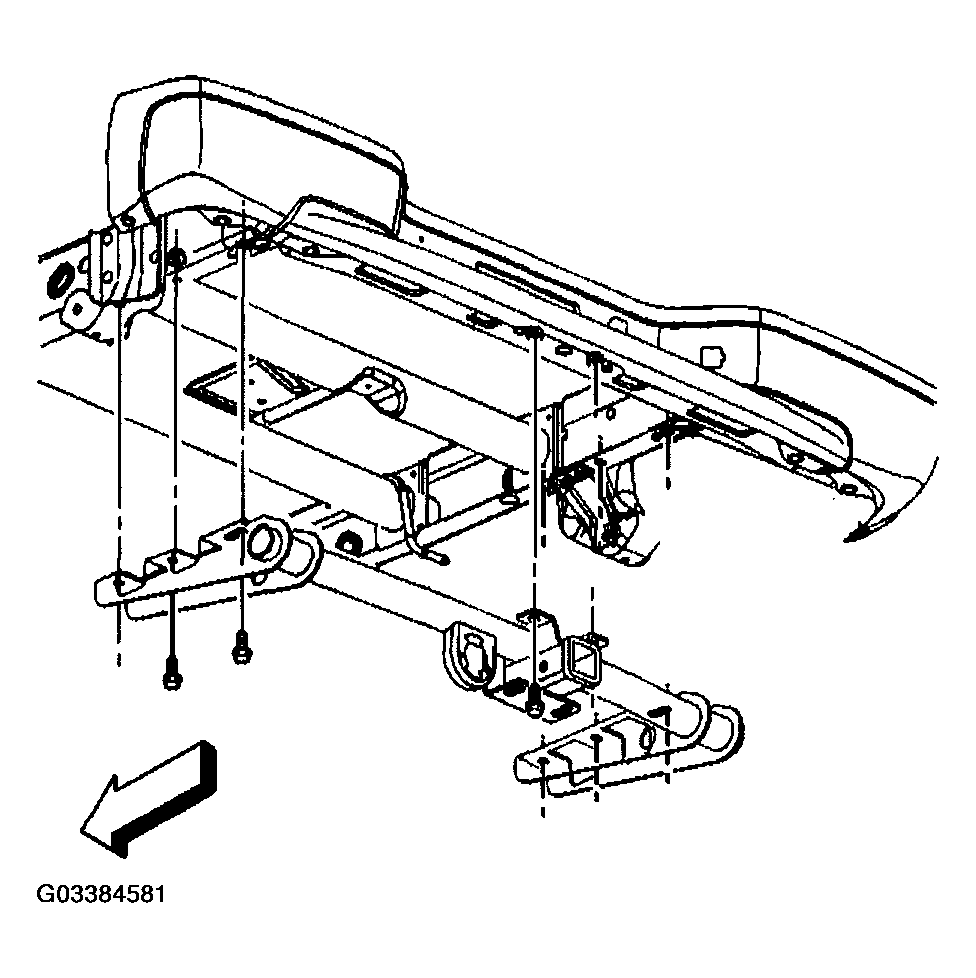

Fig 1: Installing Platform Hitch Bolts To Frame Rails And Rear Bumper
Courtesy of GENERAL MOTORS CORP.
Connect the trailer wiring harness.

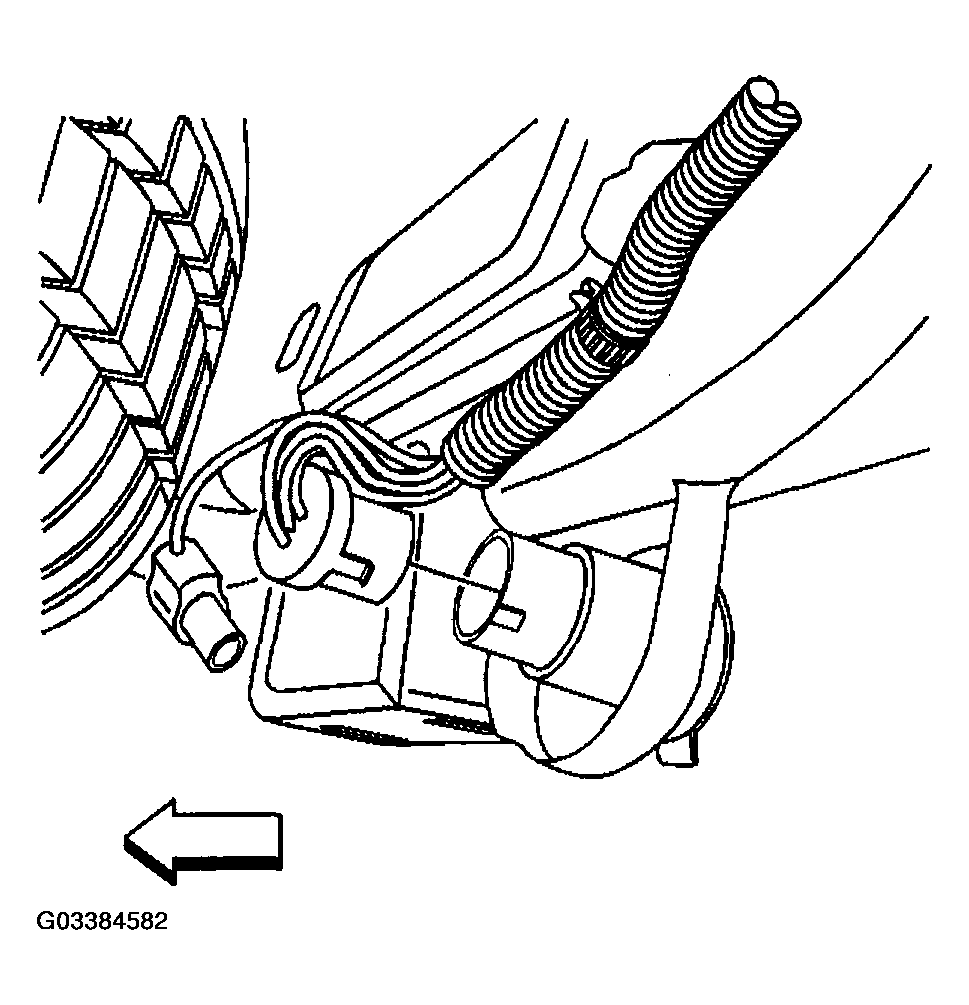

Fig 2: Connecting Trailer Wiring Harness
Courtesy of GENERAL MOTORS CORP.
