Assist Step Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

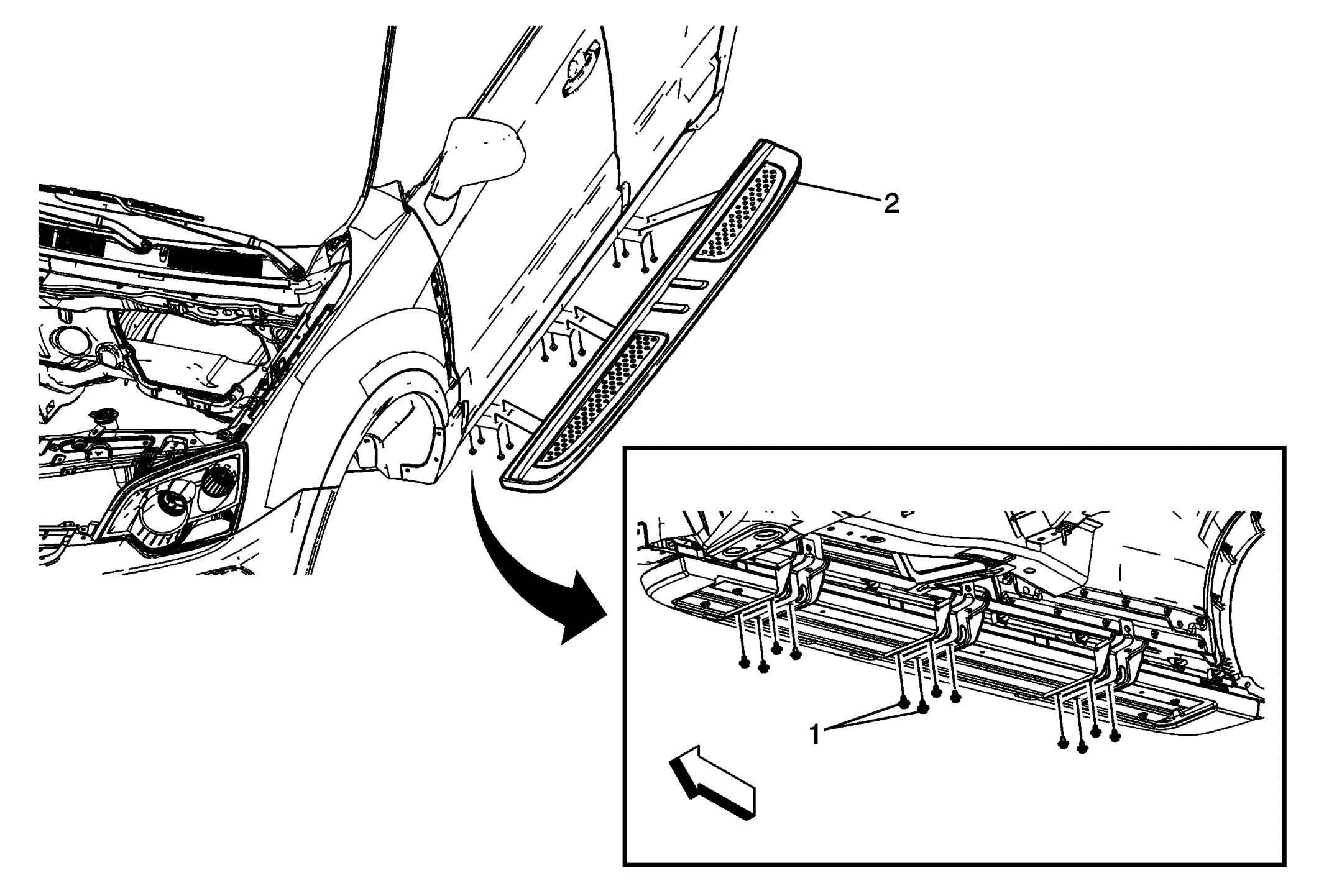

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Assist Step Bracket Bolt (Qty: 12)
CAUTION:
Refer to Fastener Caution
.
Tighten: Tighten 10 N.m (89 lb in) |
| 2 | Assist Step (Qty: 2) |
