Engine Splash Shield Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

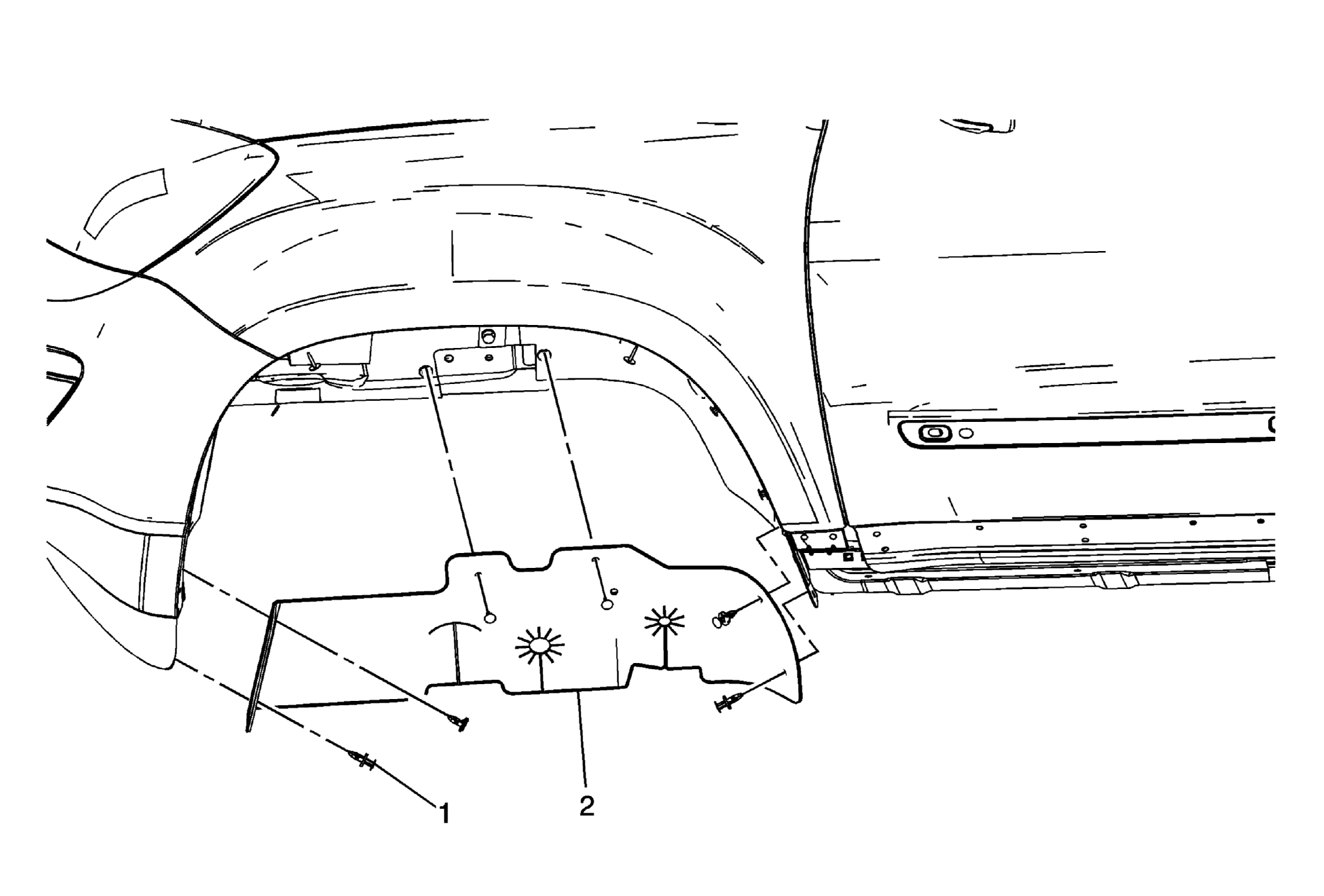

Fig 1: View Of Engine Splash Shield

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Engine Splash Shield Plastic Retainer (Qty: 3)
2	Engine Splash Shield
