Windshield Outside Moisture Sensor Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

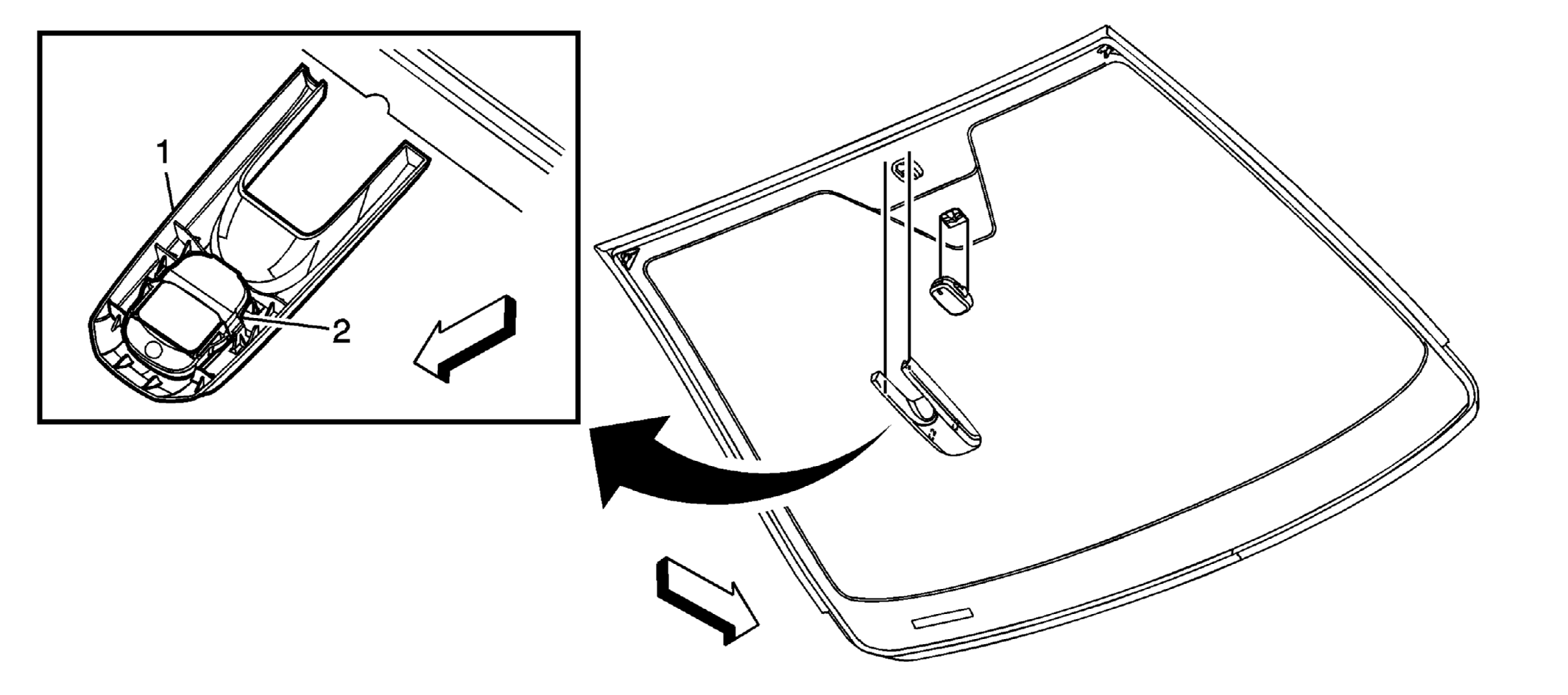

Fig 1: Windshield Outside Moisture Sensor
GM1873093Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Outside Moisture Sensor Cover

Procedure

  1. Release the 4 tabs securing the cover to the moisture sensor bracket.
  2. Disconnect the outside moisture sensor electrical connector.
  3. Release the inside tabs securing the outside moisture sensor to the moisture sensor cover.
  4. Remove the outside moisture sensor from the cover.
2 Windshield Outside Moisture Sensor Assembly
