Windshield Wiper Blade Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

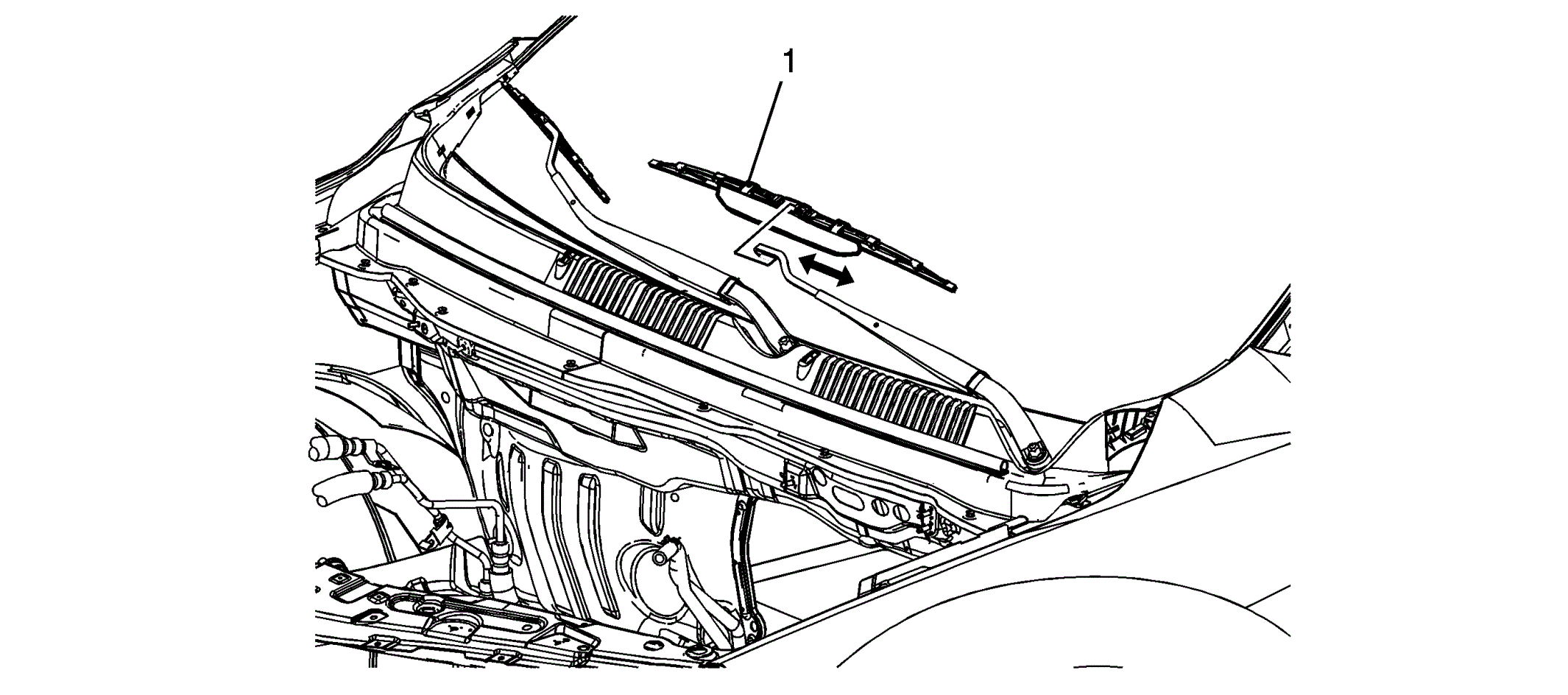

Fig 1: Windshield Wiper Blade

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Blade Assembly Procedure Lift the wiper arm from the windshield. Release the retention spring securing the blade to the arm assembly. Pull the blade assembly from the sheep hook on the wiper arm. Remove the wiper blade assembly.
