Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Brake Hose Fitting Gaskets

Courtesy of GENERAL MOTORS CORP.

Install the brake hose.

NOTE: Install new brake hose fitting gaskets.

Install new brake hose fitting gaskets (3).
Install the brake hose (2) to the caliper.

CAUTION: Refer to Fastener Caution .

Install the brake hose fitting bolt (1) to the brake hose and the caliper.
Tighten: Tighten the bolt to 52 N.m (38 lb ft).

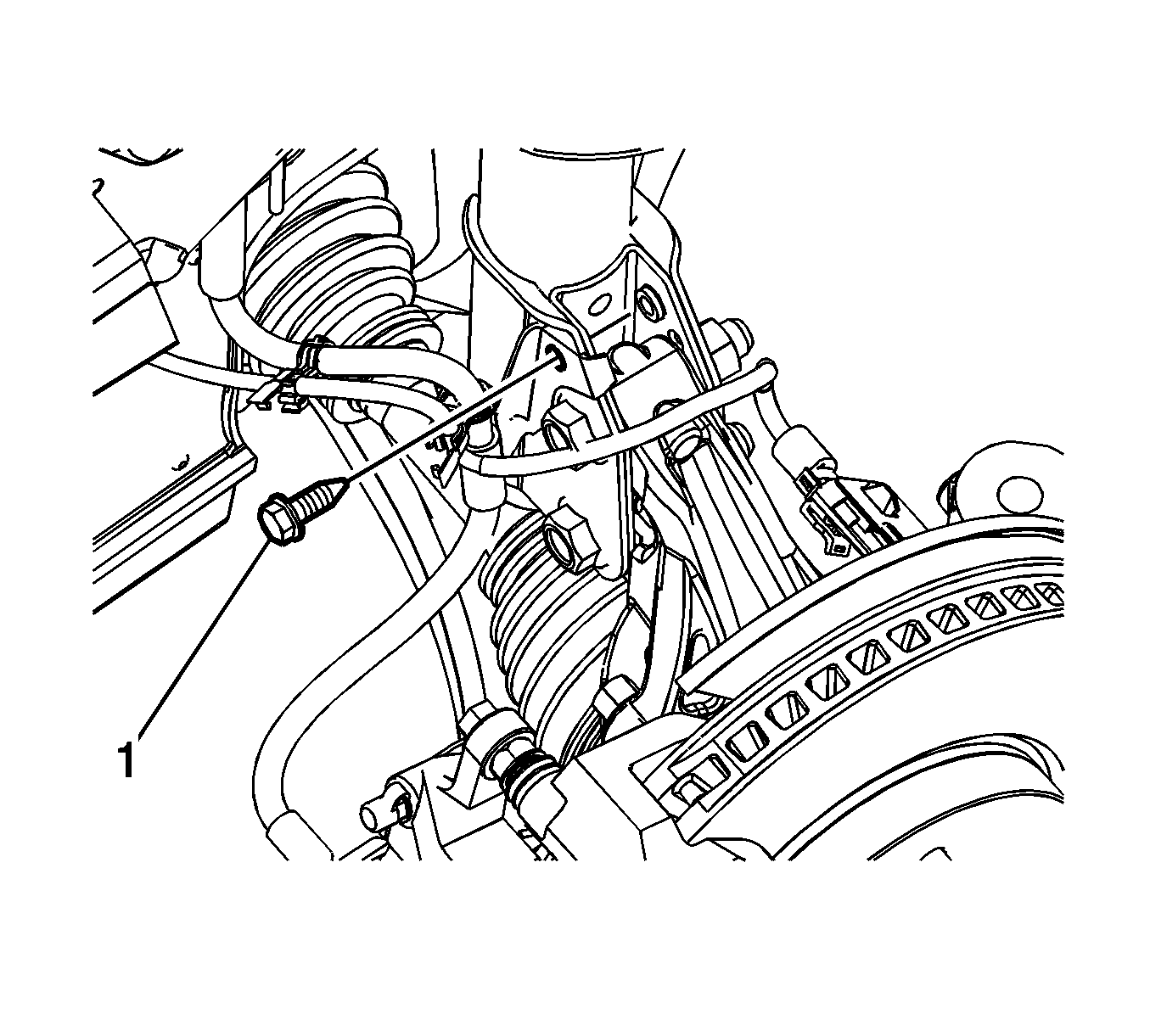

Fig 2: Brake Hose Bracket Bolt

Courtesy of GENERAL MOTORS CORP.

Install the brake hose bracket bolt (1).
Tighten: Tighten the bolt to 12 N.m (106 lb in).

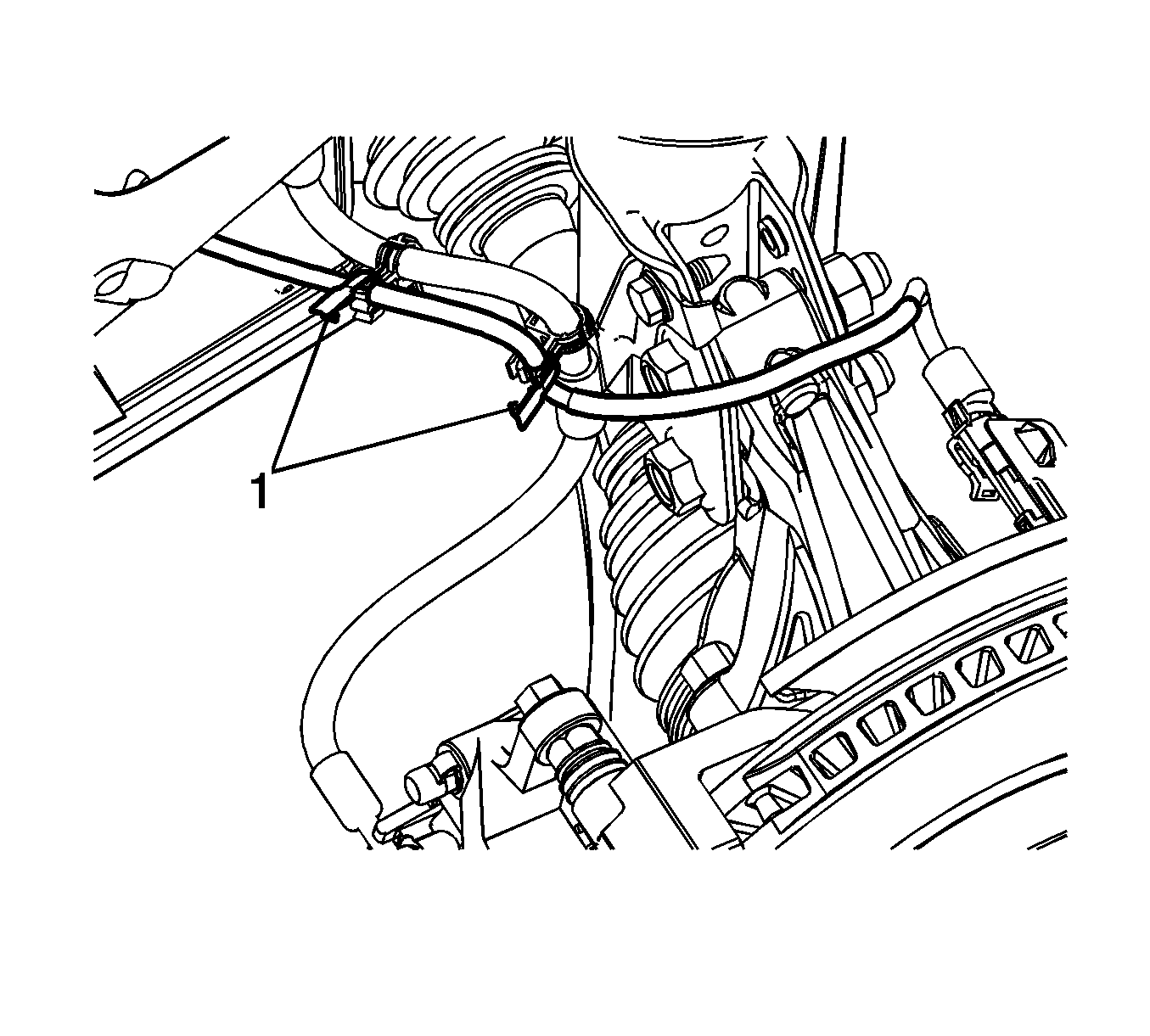

Fig 3: Identifying Wheel Speed Sensor Harness Retaining Clips

Courtesy of GENERAL MOTORS CORP.

Install the wheel speed sensor harness and secure the retaining clips (1).

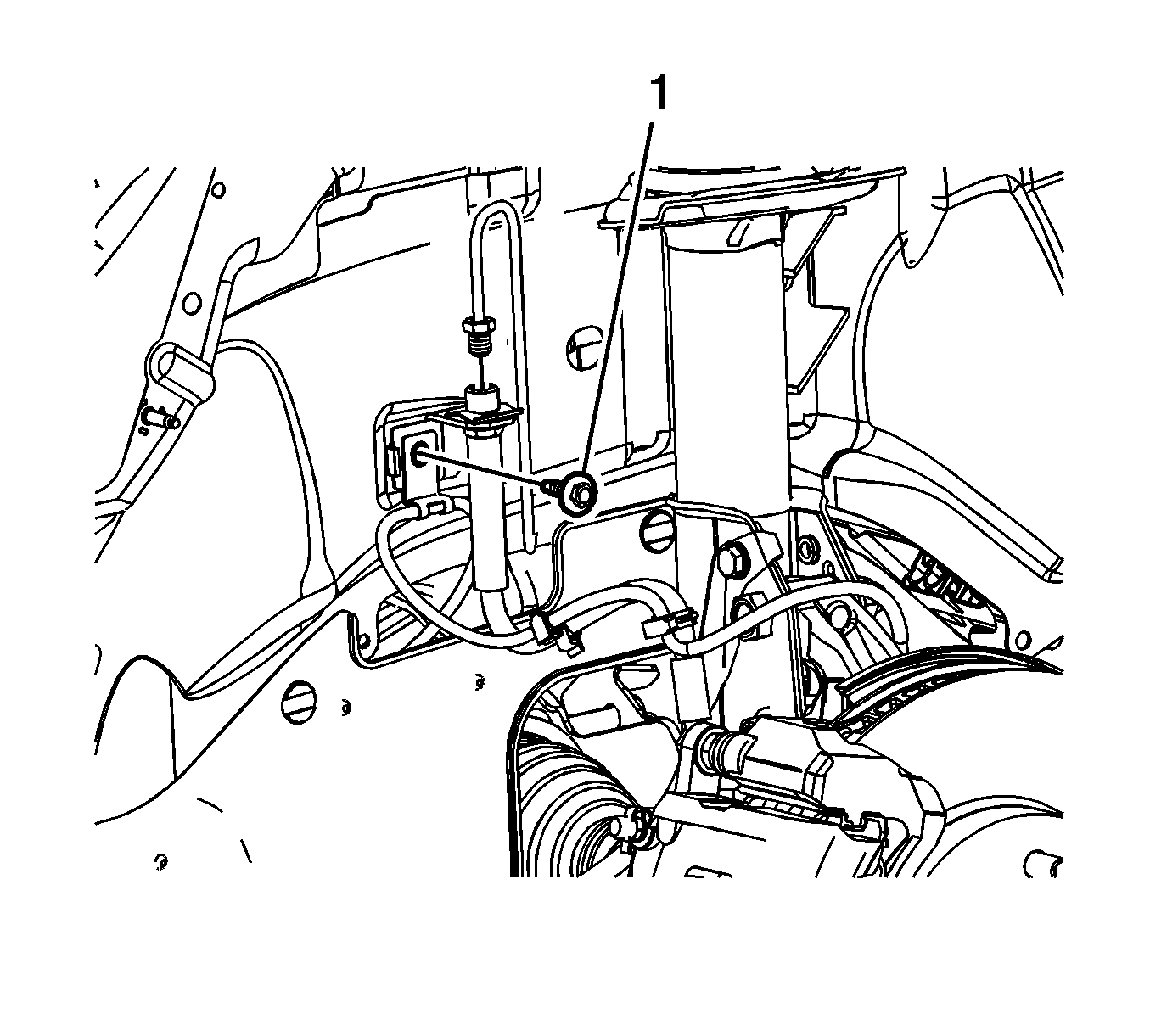

Fig 4: Brake Hose Bolt

Courtesy of GENERAL MOTORS CORP.

Install the brake hose bolt (1) securing the brake hose bracket to the wheelhouse.
Tighten: Tighten the bolt to 12 N.m (106 lb in).

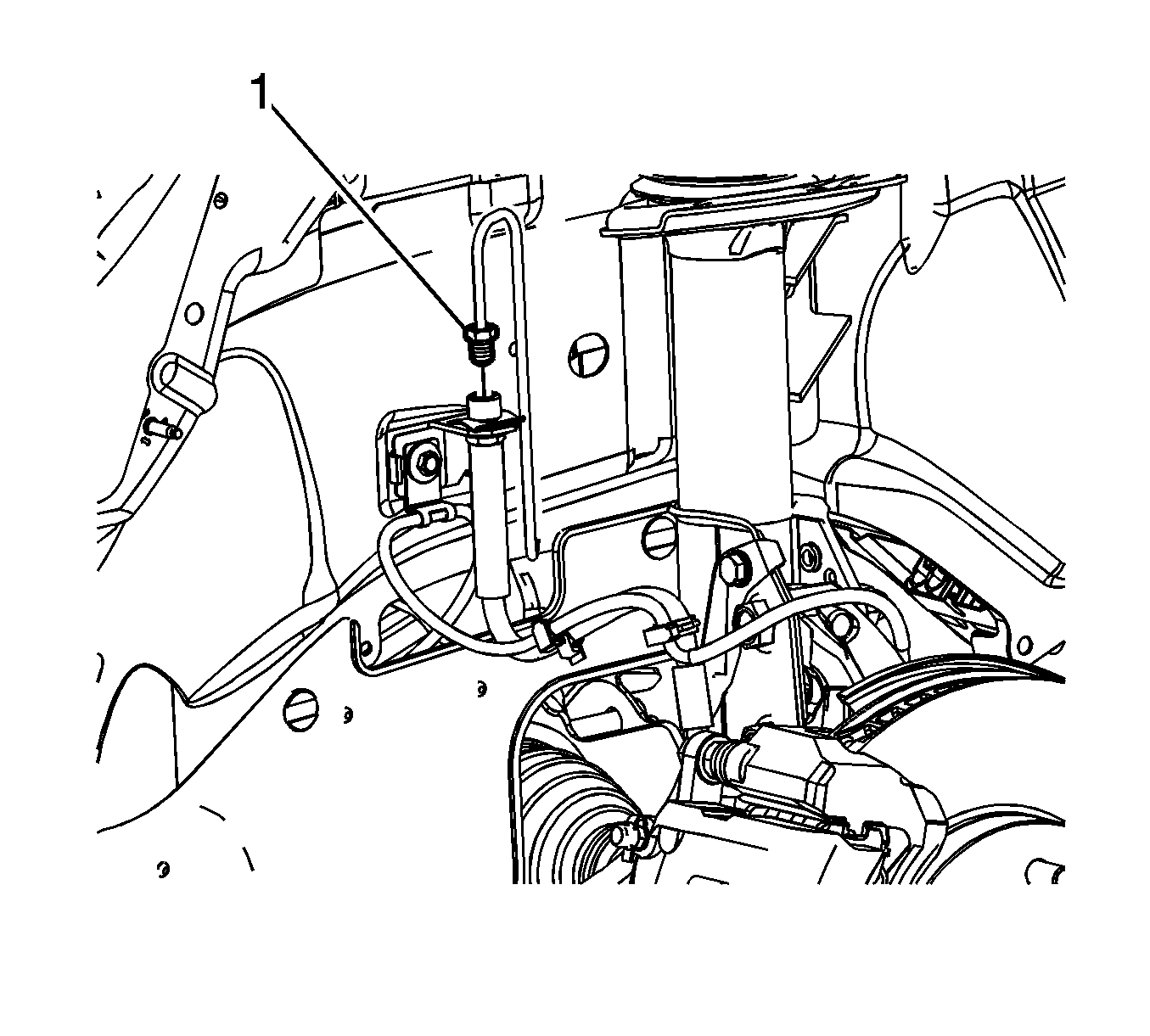

Fig 5: Brake Pipe Fitting

Courtesy of GENERAL MOTORS CORP.

Connect the brake pipe fitting (1) to the brake hose.
Tighten: Tighten the fitting to 18 N.m (13 lb ft).
Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) or Hydraulic Brake System Bleeding (Pressure) .
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Lower the vehicle.
