HVAC Component Views

Fig 1: Air Temperature Sensor-Inside Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Sensor-Inside
2	Cellular Telephone Microphone
3	B Pillar-Left Side

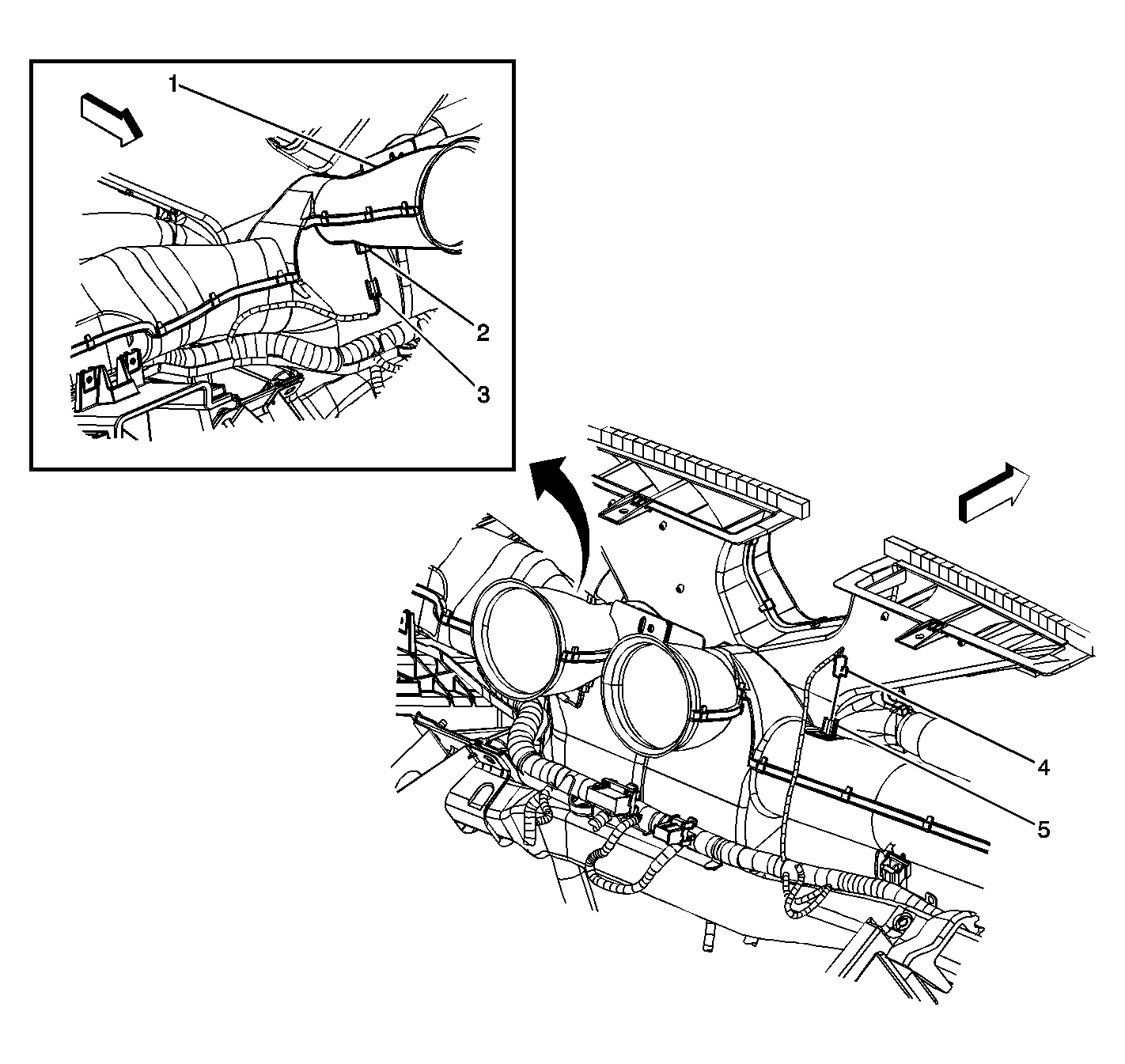

Fig 2: Air Temperature Sensor-Upper Left/Right Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Duct
2	Air Temperature Sensor-Upper Left
3	Air Temperature Sensor Connector-Upper Left
4	Air Temperature Sensor Connector-Upper Right
5	Air Temperature Sensor-Upper Right

Fig 3: Ambient Air Temperature Sensor-HVAC Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Forward Lamp Harness
2	Radiator Support
3	Ambient Air Temperature Sensor-HVAC
4	Ambient Air Temperature Sensor-Mirror

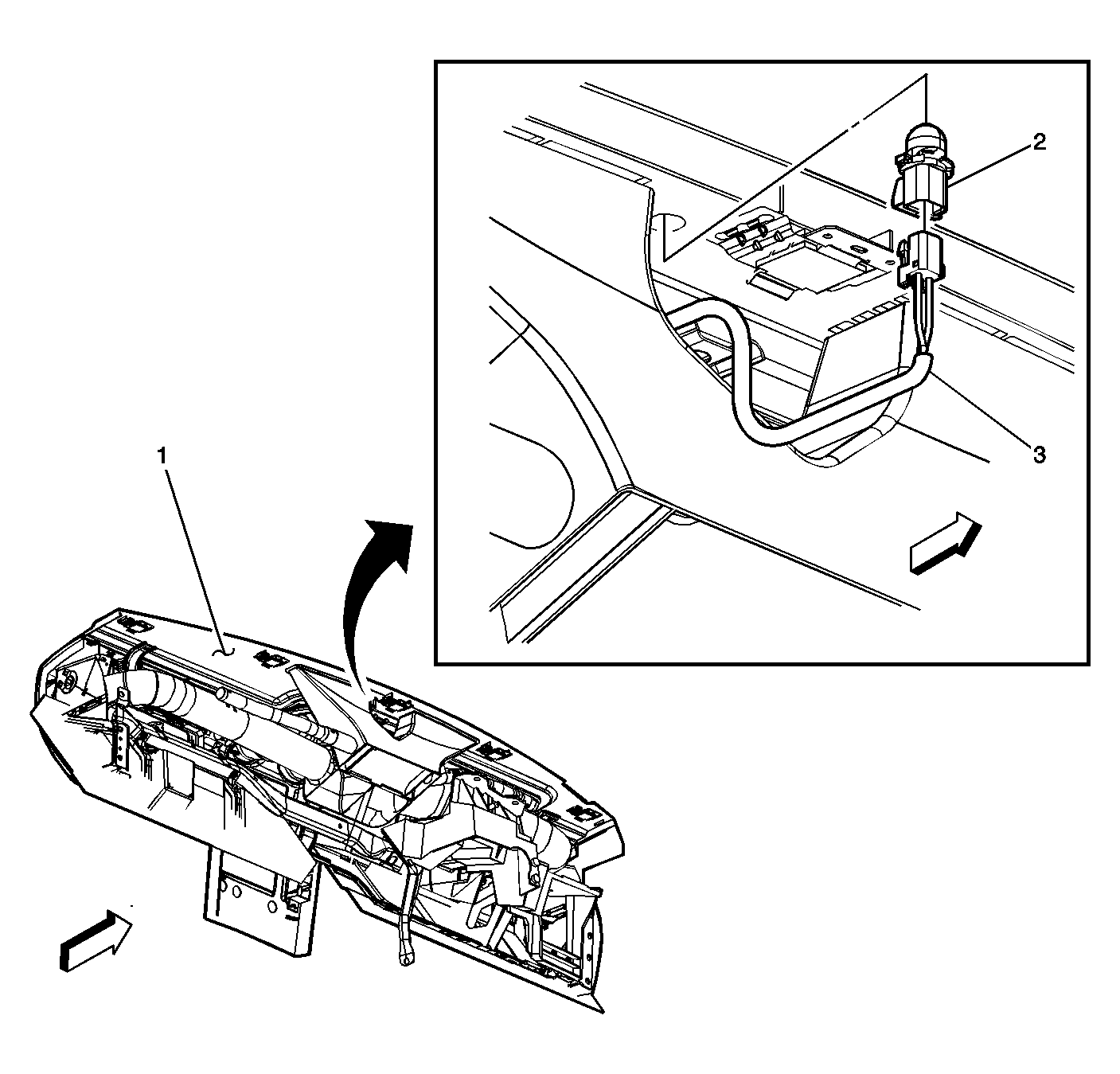

Fig 4: Ambient Light/Sunload Sensor Assembly Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Upper Trim Panel
2	Ambient Light/Sunload Sensor Assembly
3	I/P Harness

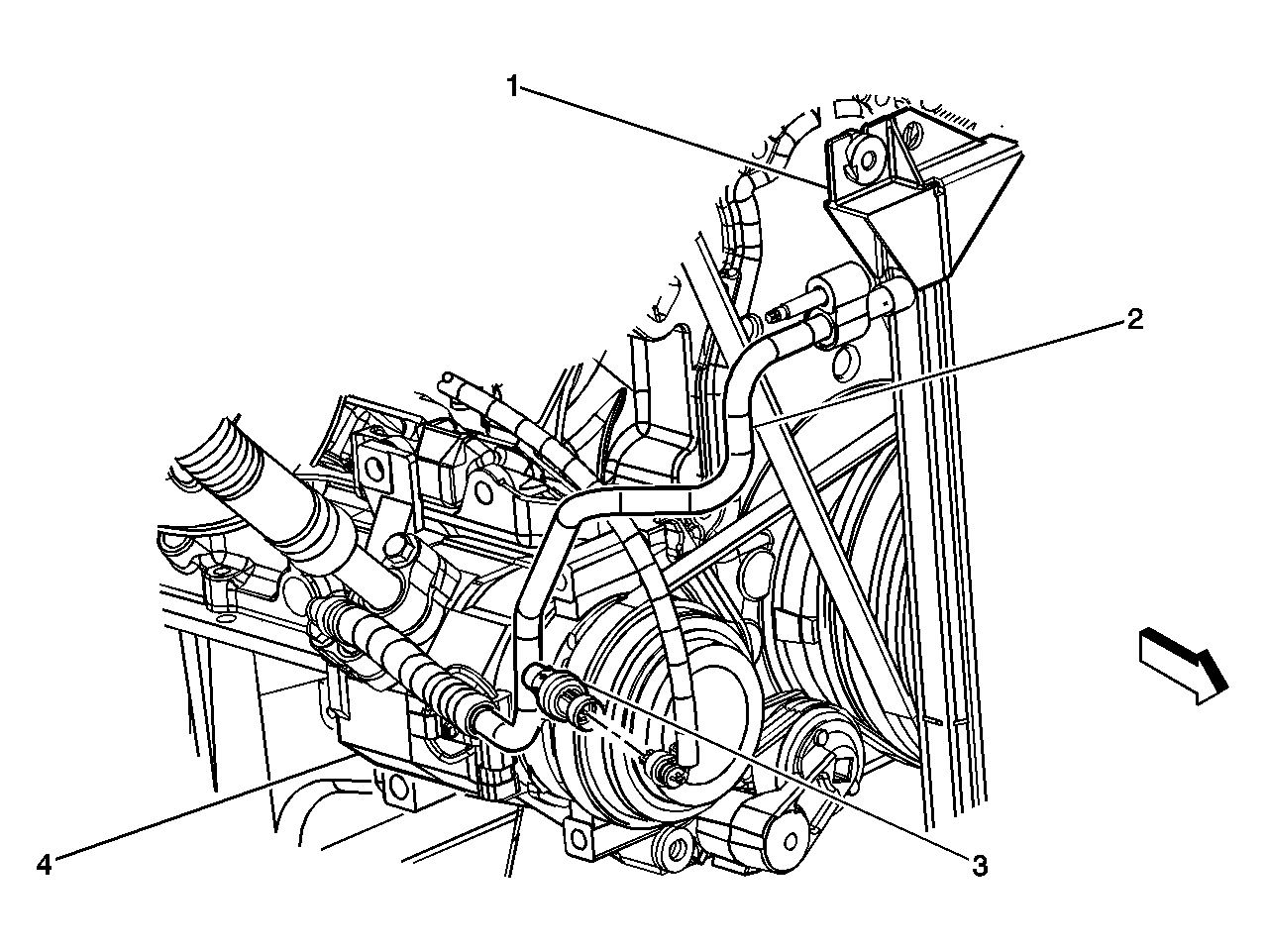

Fig 5: A/C Refrigerant Pressure Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Condenser
2	A/C Condenser Hose
3	A/C Refrigerant Pressure Switch
4	A/C Compressor

Fig 6: A/C Low Pressure Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Low Pressure Switch
2	A/C Accumulator
3	Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor
4	Coolant Level Switch

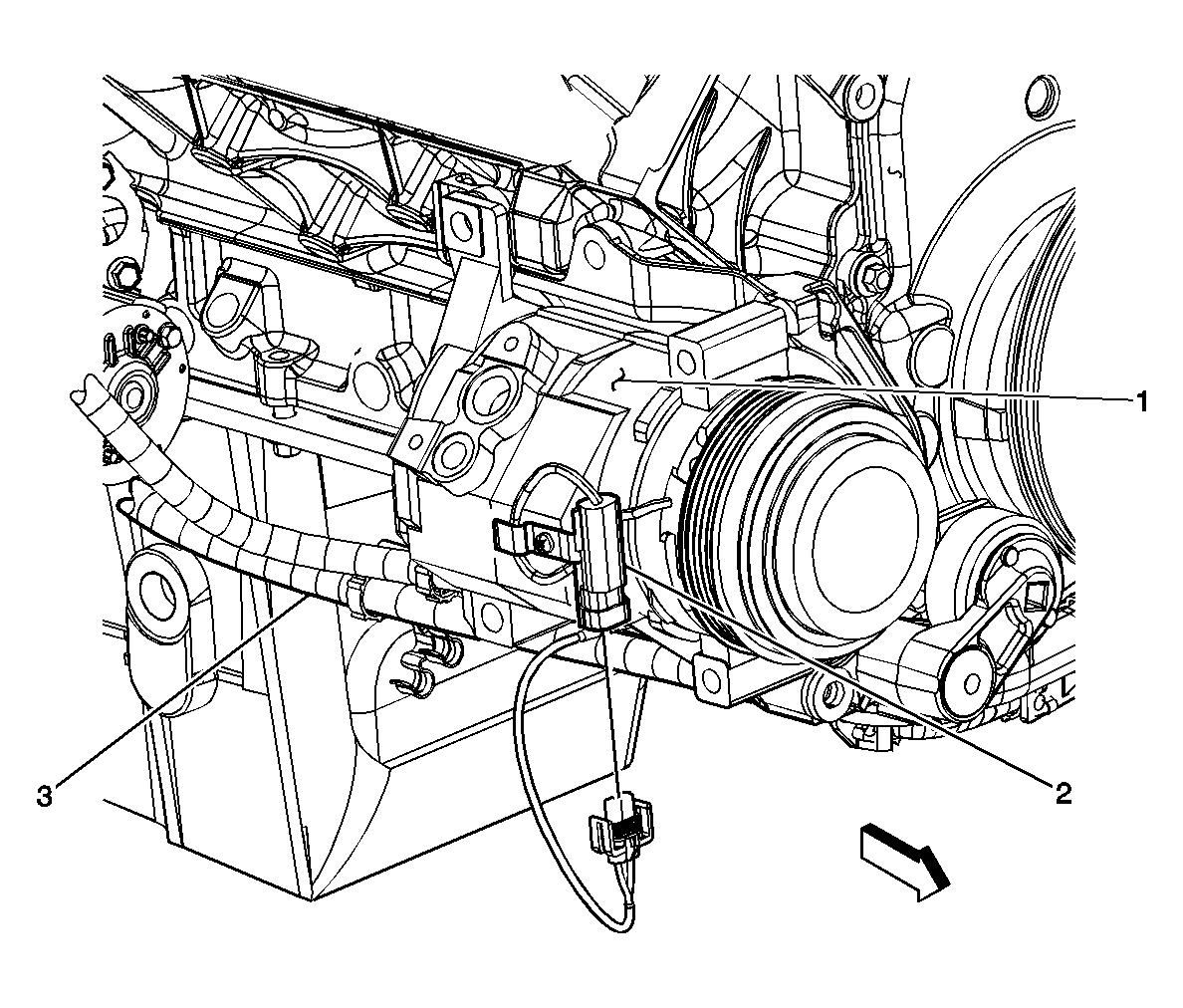

Fig 7: A/C Compressor Clutch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Compressor
2	A/C Compressor Clutch Connector
3	Positive Battery Cable

Fig 8: HVAC Control Module Component View

Courtesy of GENERAL MOTORS CORP.

Fig 9: HVAC - Subsystem Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Control Module
2	HVAC Control Module
3	HVAC Harness
4	Air Temperature Actuator-Left
5	Air Temperature Sensor Connector-Lower Right
6	Air Temperature Sensor Connector-Lower Left
7	Mode Actuator
8	Recirculation Actuator
9	Blower Motor Control Processor
10	HVAC Module
11	Air Temperature Actuator-Right
