Removal Procedure

  1. Install a drain pan under the vehicle.

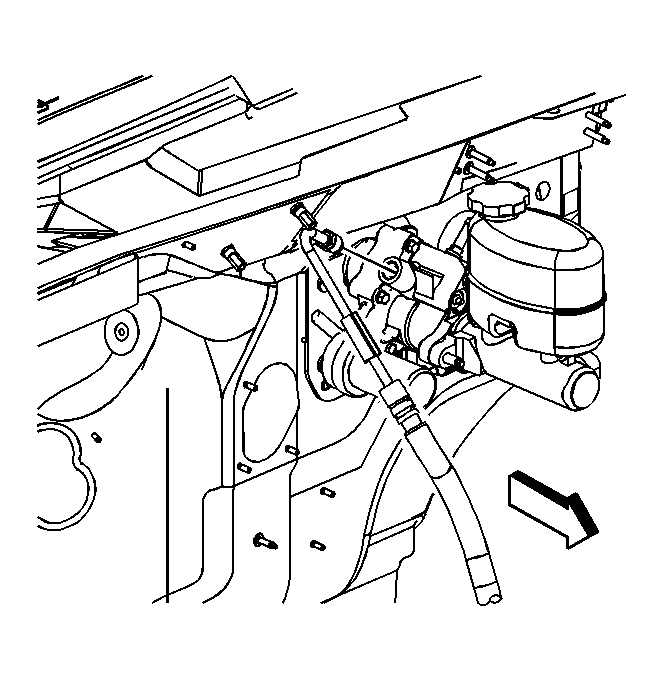

    Fig 1: Brake Booster Inlet Hose & Brake Booster
    GM795542Courtesy of GENERAL MOTORS CORP.
  2. Remove the brake booster inlet hose from the brake booster.
    3. Fig 2: Brake Booster Inlet Hose & Power Steering Pump
    GM795538Courtesy of GENERAL MOTORS CORP.
  3. Remove the brake booster inlet hose (1) from the power steering pump.
  4. Remove the brake booster inlet hose from the vehicle.
