Column/Ignition Lock Schematics

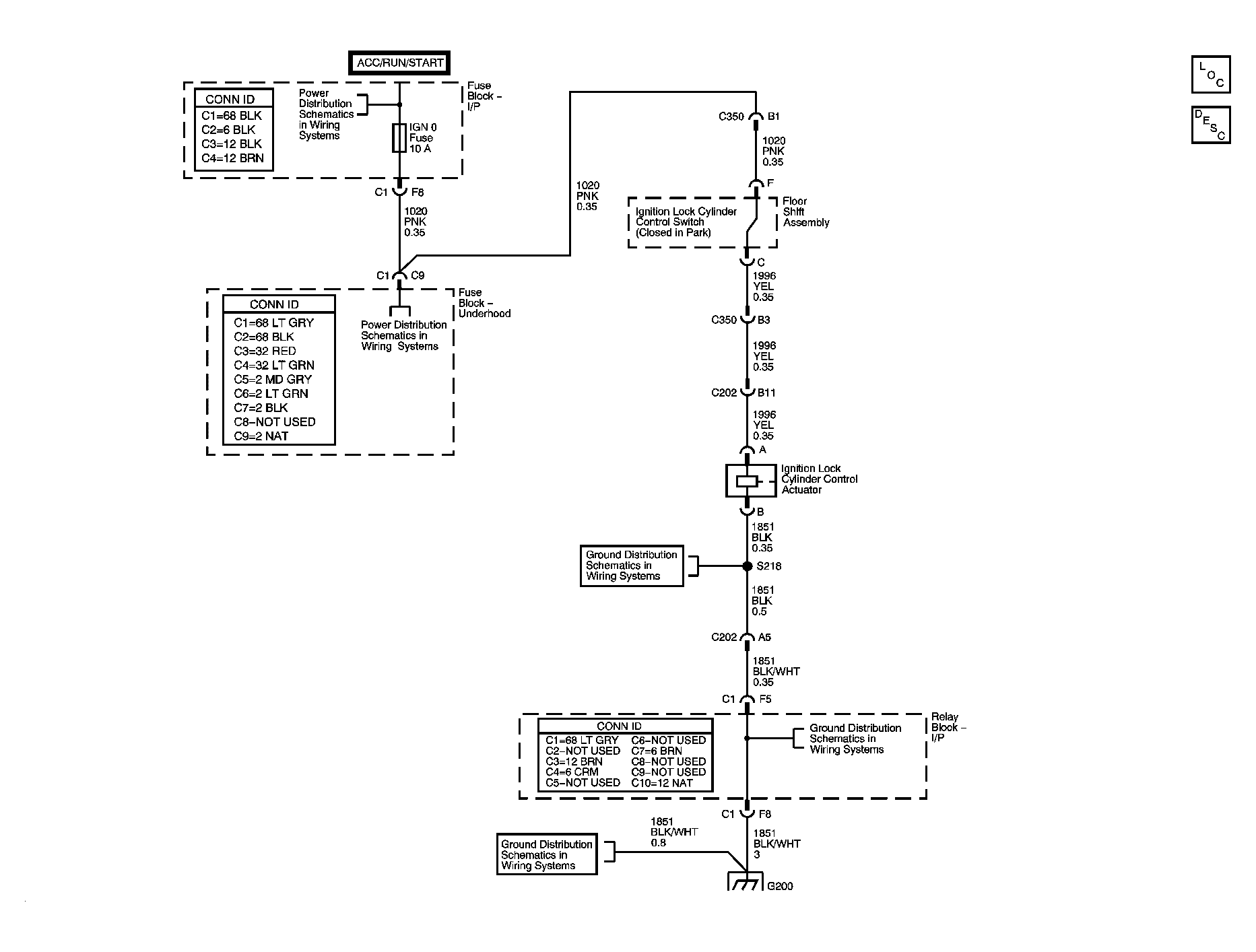

Fig 1: Column/Ignition Lock Schematic
GM849850Courtesy of GENERAL MOTORS CORP.
