2-4 Band Assembly Installation

    Fig 1: 2-4 Band Assembly
    GM190436Courtesy of GENERAL MOTORS CORP.
  1. Inspect the 2-4 band assembly (602) for damage or wear.
  2. Install the 2-4 band (602) into the case.

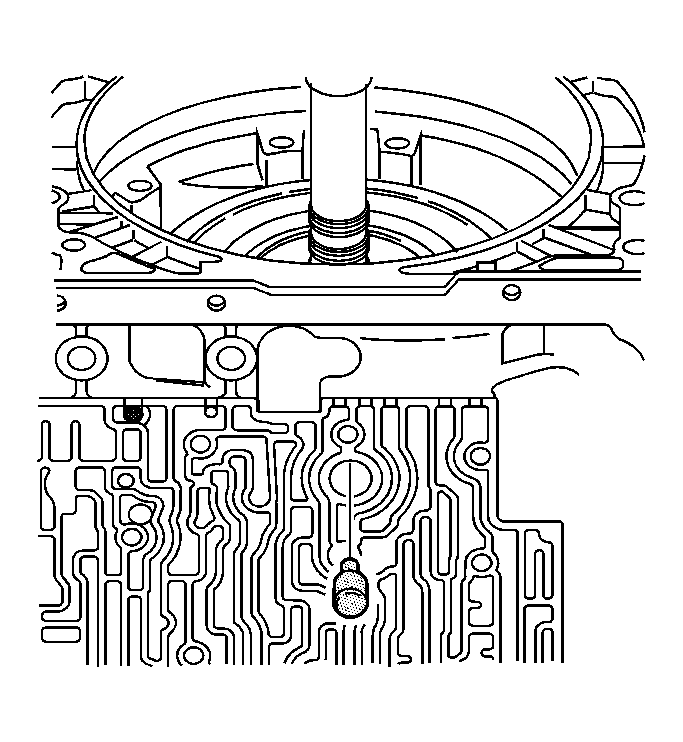

    3. Fig 2: Band Anchor Pin
    GM190437Courtesy of GENERAL MOTORS CORP.
  3. Install the band anchor pin into the case.
  4. Index the band to fit the band anchor pin into the band.
