Removal Procedure

Tools Required

• J 8092 Driver Handle
• J 34196-B  Transmission Bushing Service Set. See Special Tools .

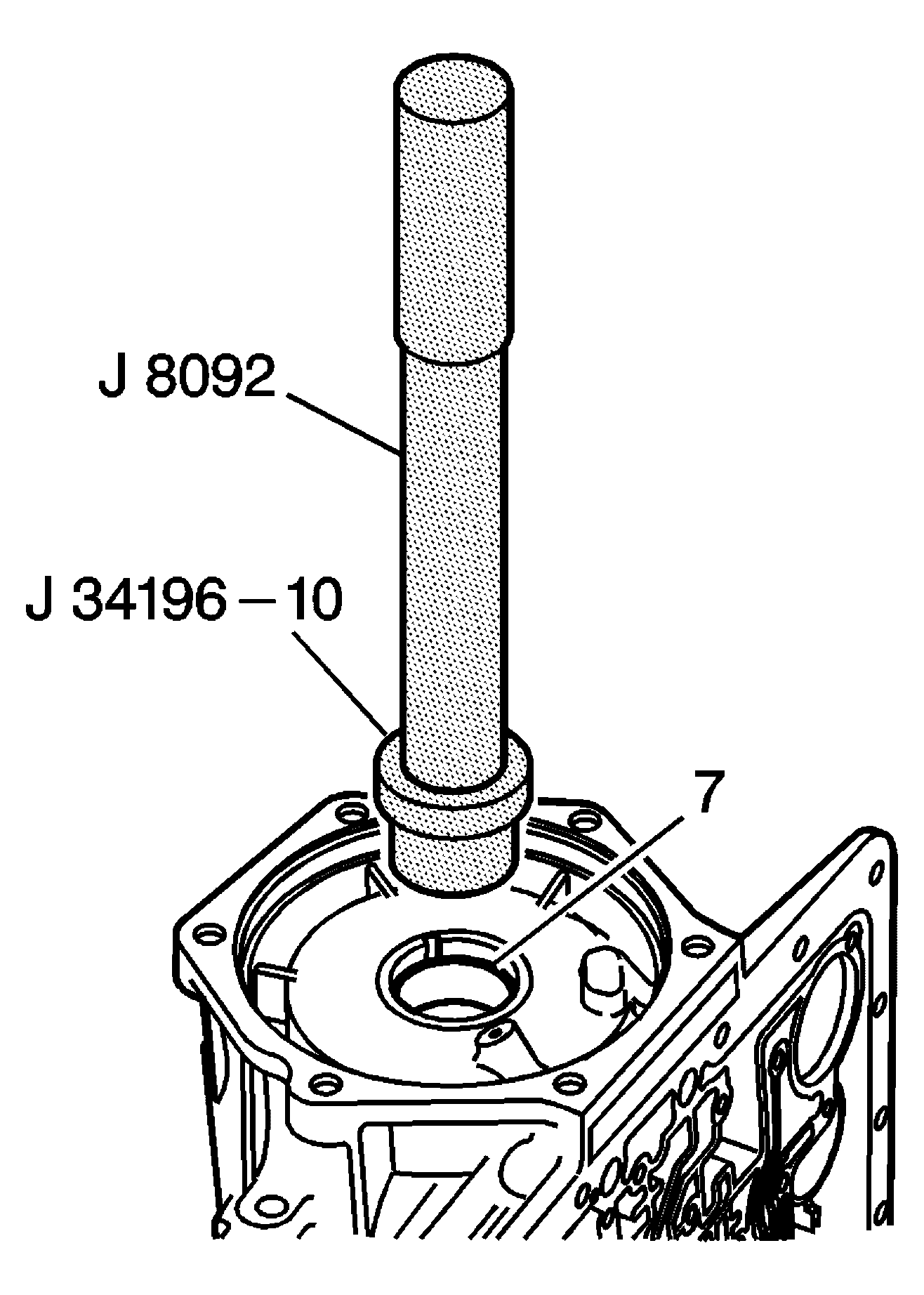

Fig 1: Positioning Case Bushing Special Tools J 8092 & J 34196-10

Courtesy of GENERAL MOTORS CORP.

Remove the case bushing (7) using J 8092 and J 34196-10 which is part of kit J 34196-B  . See Special Tools .
