Control Valve Body Installation

Tools Required

• J 25025-5 Guide Pins
• J 36850 Assembly Lubricant

Fig 1: Identifying Checkball Installation Positions
Courtesy of GENERAL MOTORS CORP.
1. Install the checkballs (2-6, 8, 12) in the valve body and retain checkballs with J 36850  or an equivalent.

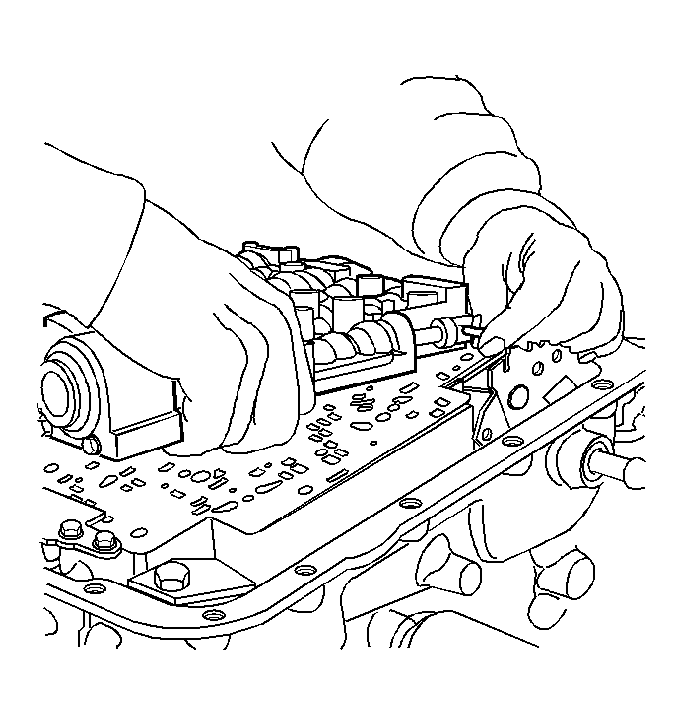

Fig 2: Installing Valve Body
Courtesy of GENERAL MOTORS CORP.
2. Install the valve body over the J 25025-5  . Guide Pins, and connect the manual valve link to the manual valve.
3. Install two bolts to hold the valve body in place.
4. Remove the J 25025-5  .

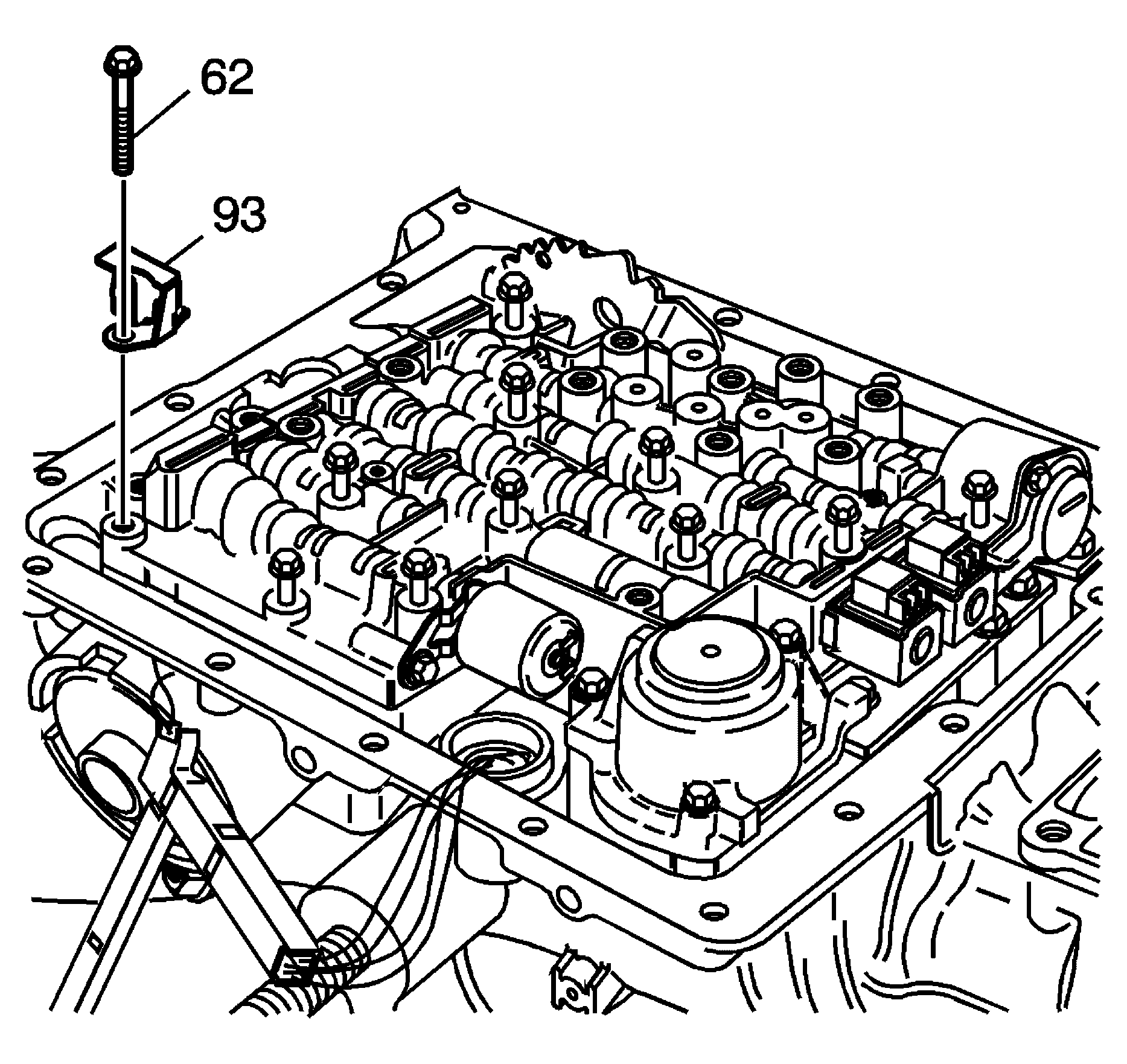

Fig 3: Identifying Fluid Level Indicator Stop Bracket & Valve Body Bolts
Courtesy of GENERAL MOTORS CORP.
5. Install the fluid level indicator stop bracket (93) and the valve body bolts (62) that are shown only.
6. Finger tighten the bolts.
Fig 4: Inspecting TFP For Damage
Courtesy of GENERAL MOTORS CORP.
7. Inspect the Transmission Fluid Pressure (TFP) Manual Valve Position Switch Assembly for the following conditions:
   • Damage
   • Debris
   • Damaged or missing O-rings
   • Cracked connector
   • Loose pins

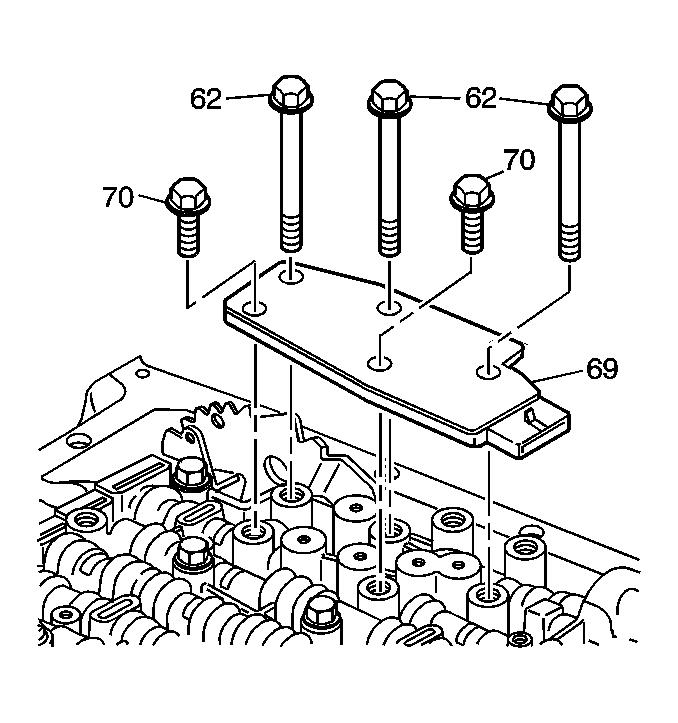

Fig 5: Removing/Installing Transmission Fluid Pressure (TFP) Manual Valve Position Switch Assembly
Courtesy of GENERAL MOTORS CORP.
8. Install the TFP manual valve position switch (69) and bolts (62, 70).
Fig 6: Identifying Wiring Harness Solenoid Assembly
Courtesy of GENERAL MOTORS CORP.
9. Inspect the wiring harness solenoid assembly for the following conditions:
   • Damage
   • Cracked connectors
   • Exposed wires
   • Loose pins

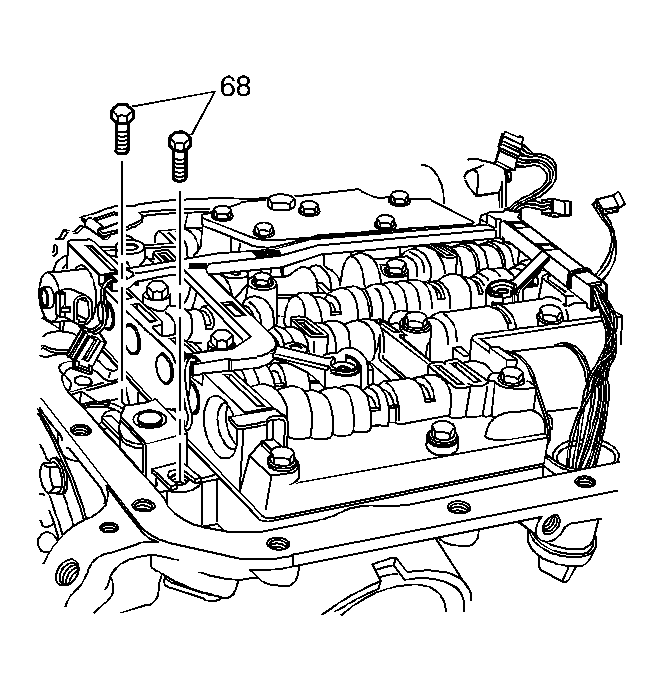

Fig 7: Locating Transmission Wiring Harness
Courtesy of GENERAL MOTORS CORP.
10. Install the transmission wiring harness on the valve body.
11. Install the TCC solenoid valve and bolts (68).
Fig 8: Valve Body Bolt Tightening Sequence
Courtesy of GENERAL MOTORS CORP.
IMPORTANT: You must tighten certain bolts in a spiral pattern as indicated by the arrows. If you tighten these bolts at random you may distort valve bores. This will inhibit valve operation.
NOTE: Refer to Fastener Notice .
12. Tighten the bolts in the order shown.

    Tighten:  Tighten the bolts to 11 N.m (8 lb ft).

    Each bolt number refers to a specific bolt size, as indicated by the following list:

    • 1 - M6 x 1.0 x 65.0
    • 2 - M6 x 1.0 x 54.4
    • 3 - M6 x 1.0 x 47.5
    • 4 - M6 x 1.0 x 35.0
    • 5 - M8 x 1.25 x 20.0
    • 6 - M6 x 1.0 x 12.0
    • 7 - M6 x 1.0 x 18.0

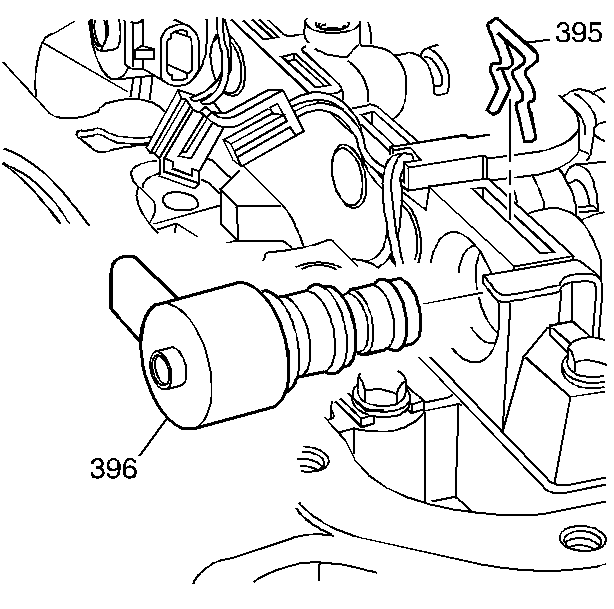

Fig 9: Locating TCC PWM Solenoid Valve
Courtesy of GENERAL MOTORS CORP.
13. Install the TCC PWM solenoid valve (396) and the solenoid retainer (395).
Fig 10: Identifying Valve Body Electrical Connections
Courtesy of GENERAL MOTORS CORP.
14. Connect all electrical connectors (1-6) to the electrical components.
