Installation Procedure

Fig 1: Removing/Installing Transmission Control

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the transmission control.
Install the transmission control bolts.
Tighten: Tighten the transmission control bolts to 25 N.m (18 lb ft).

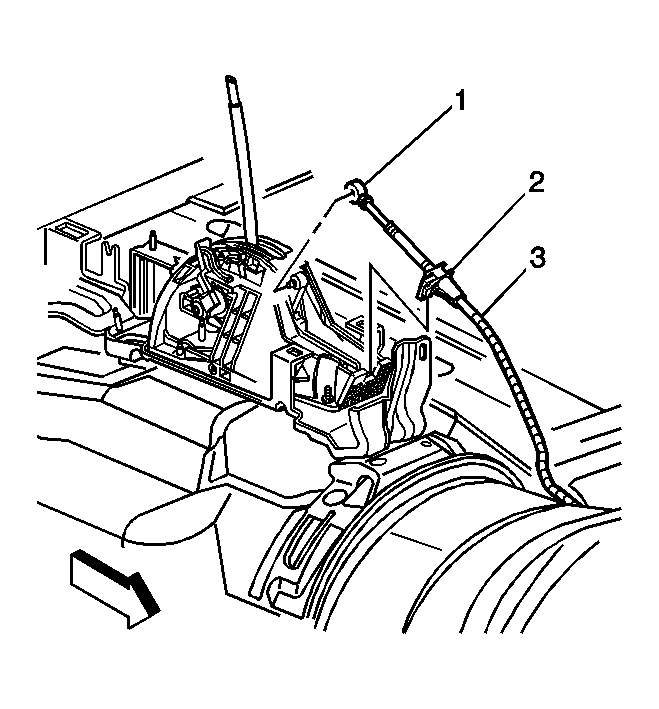

Fig 2: View Of shift Control Cable & Shifter

Courtesy of GENERAL MOTORS CORP.

Install the range selector cable (2) to the floor shift control.
Install the end of the range selector cable (1) to the transmission control ball stud.

Fig 3: Center Console Bolts

Courtesy of GENERAL MOTORS CORP.

Install the front floor console. Refer to Console Replacement .
Check for proper operation of the floor shift control.
Adjust the range selector cable if necessary. Refer to Automatic Transmission Range Selector Cable Adjustment .
