Power and Grounding Component Views

Fig 1: Fuse Block - Underhood - Stud #1 and Stud #2 Component Views
GM819806Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Stud #2 - Trailer Connector Power Feed
2 Stud #1
3 Fuse Block - Underhood
4 IP Harness
5 C102
Fig 2: Fuse Block - I/P Component Views
GM827523Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - I/P
2 Driver Door Harness
3 Fuse Block - I/P - C3 (BLK)
Fig 3: Relay Block - I/P Component Views
GM825740Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Relay Block - I/P
2 Body Harness
3 Relay Block - I/P - C10 (NAT)
Fig 4: Junction Block - I/P Component Views
GM820125Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Junction Block - I/P
2 I/P Harness
3 Footwell Courtesy Lamp Socket - Right
4 Footwell Courtesy Lamp Bulb - Right

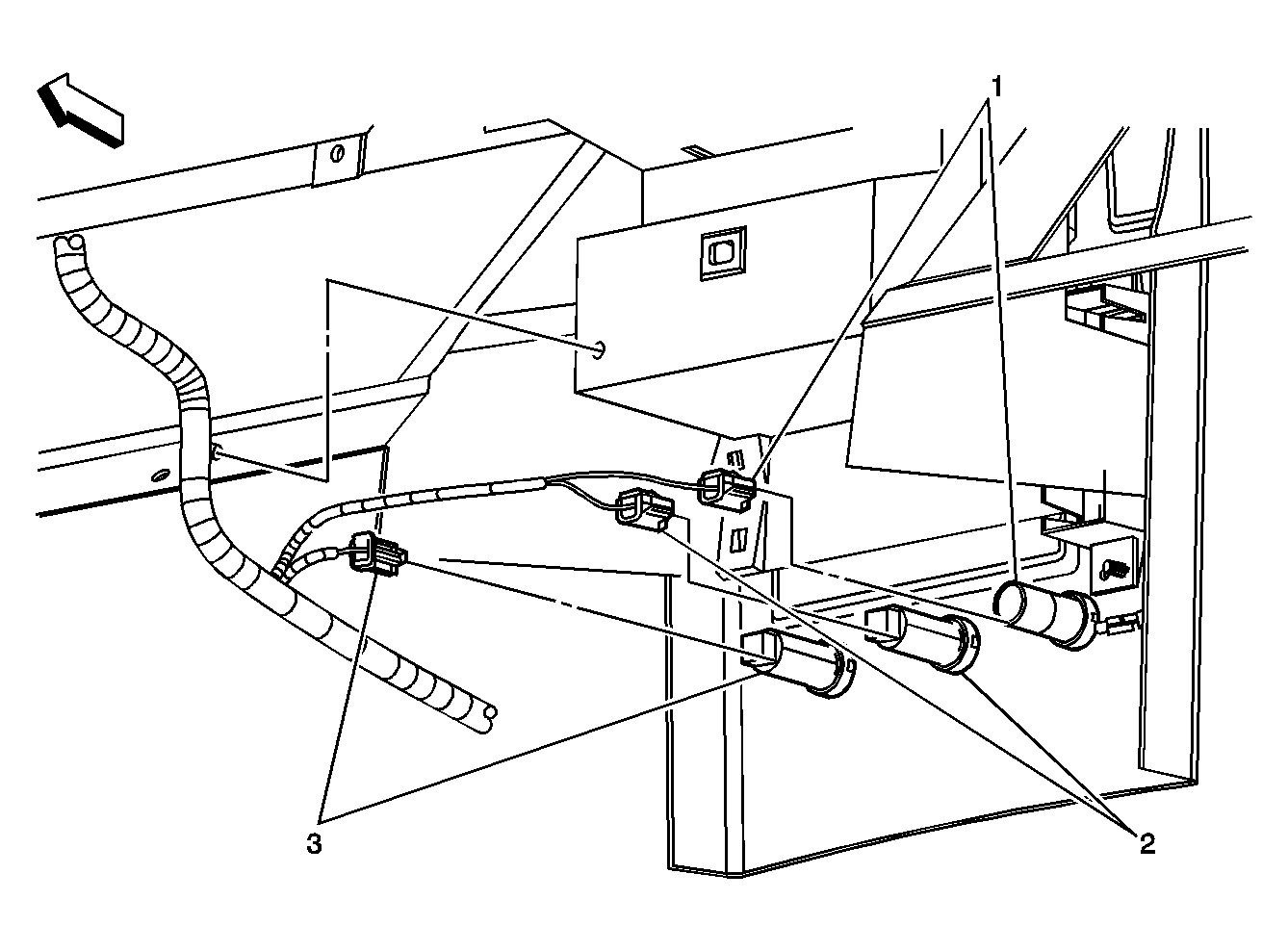

Fig 5: Accessory Power Outlets - IP Component Views
GM819933Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cigar Lighter
2 Accessory Power Outlet
3 Accessory Power Outlet
Fig 6: Accessory Power Outlets - Rear Console Component Views
GM828480Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 RSA Controller
2 Heated Seat Switch - RR
3 Accessory Power Outlet - RR
4 Accessory Power Outlet - LR
5 Heated Seat Switch - LR

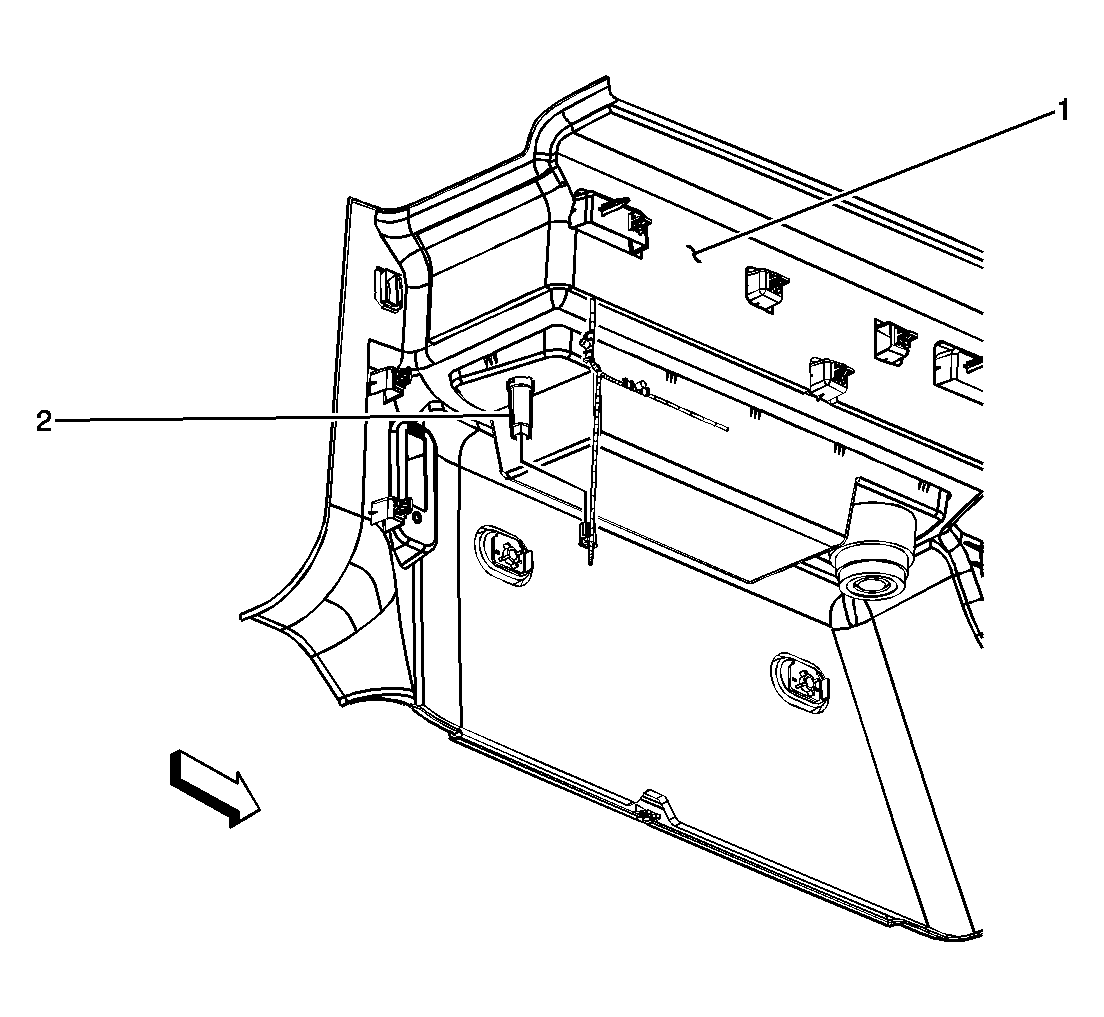

Fig 7: Accessory Power Outlet - Rear Component Views
GM825890Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Cargo Storage Bin
2 Accessory Power Outlet - RR
Fig 8: Electronically Controlled Air Suspension Relay and G300 Component Views
GM828177Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S304
2 G300
3 Chassis Harness
4 Electronically Controlled Air Suspension Relay
Fig 9: Steering Wheel Controls Backlight Fuse Component Views
GM857908Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Column
2 Transfer Case Shift Control Module
3 Splice Pack SP206
4 Steering Wheel Controls Backlight Fuse
Fig 10: G100 Component View
GM825388Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Negative Battery Cable
2 Left Front Frame Rail
3 G100 - Negative Battery cable
4 G100 - Forward Lamp Harness
5 Forward Lamp Harness
Fig 11: G103 and G104 Component Views
GM825336Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Harness
2 G103 - Engine Harness Ground
3 G104
4 Camshaft Position (CMP) Sensor Connector
5 Engine Oil Pressure (EOP) Sensor Connector
Fig 12: G102 Component Views
GM825321Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G102 - Negative Battery Cable
2 G102 - Engine Harness Ground
3 Engine Harness
Fig 13: G106 Component View
GM825386Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G106
2 Dash Panel
3 Engine Ground Strap
Fig 14: G200 Component View
GM820070Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C200 - I/P Harness Side
2 C201 - I/P Harness Side
3 G200
4 I/P Harness
Fig 15: G203 Component View
GM825302Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cowl Panel Insulator
2 G203
3 HVAC Harness
Fig 16: Data Link Connector and Splice Pack SP205 Component View
GM819776Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 BCM - C1
2 BCM - C2
3 BCM - C3
4 BCM - C4
5 BCM - C5
6 Body Control Module (BCM)
7 Footwell Courtesy Lamp - Left (If Equipped)
8 Data Link Connector (DLC)
9 Fuse Block - IP - C1
10 Fuse Block - IP Center Block
11 Splice Pack SP205
Fig 17: Splice Pack SP206 Component Views
GM857908Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Column
2 Transfer Case Shift Control Module
3 Splice Pack SP206
4 Steering Wheel Controls Backlight Fuse
Fig 18: Splice Pack SP207 Component Views
GM825721Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C200
2 Splice Pack SP207
3 C201
4 Left Side Cowl Panel
Fig 19: G300 Component View
GM825346Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Chassis Harness
2 G300
3 Left Frame Body Mount
Fig 20: G302 Component Views
GM825282Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 B Pillar
2 Body Harness
3 G302
Fig 21: G304 Component View
GM828959Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G304
2 Body Harness
3 Inflatable Restraint and Diagnostic Module (SDM) Connector
Fig 22: G306 Component View
GM825292Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 B Pillar
2 Body Harness
3 G306
Fig 23: G308 Component View
GM825382Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G308
2 Body Mount - RH
3 Chassis Harness
Fig 24: G310 Component View
GM825379Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Mount - LH
2 G310
3 Chassis Harness
Fig 25: G401 Component View
GM825380Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G401
2 Body Mount - LH
3 Fuel Tank Filler Ground
4 Chassis Harness
Fig 26: G405 Component View
GM825384Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Chassis Harness
2 G405
3 Body Mount - RH
4 Air Suspension Inflator Switch Connector
Fig 27: G410 and SP410 Component Views
GM825429Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inner Side Panel - RH
2 G410
3 SP410

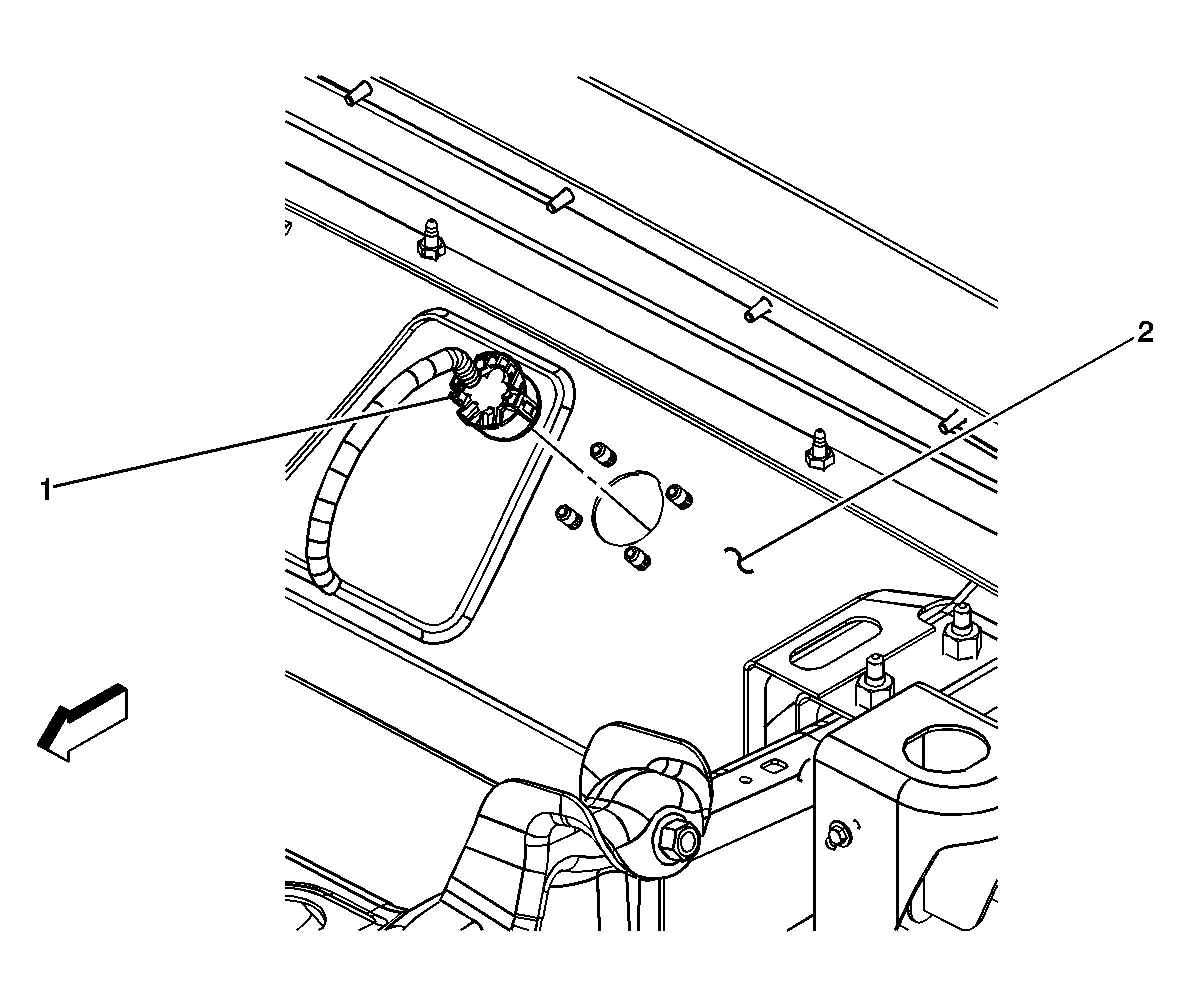

Fig 28: Trailer Receptacle Component Views
GM828318Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Trailer Receptacle
2 Rear Bumper Fascia
