Instrument Panel Relay Block
Instrument Panel Relay Block
NOTE:
Instrument panel relay block is located at lower left corner of instrument panel. See
Fig 1
.

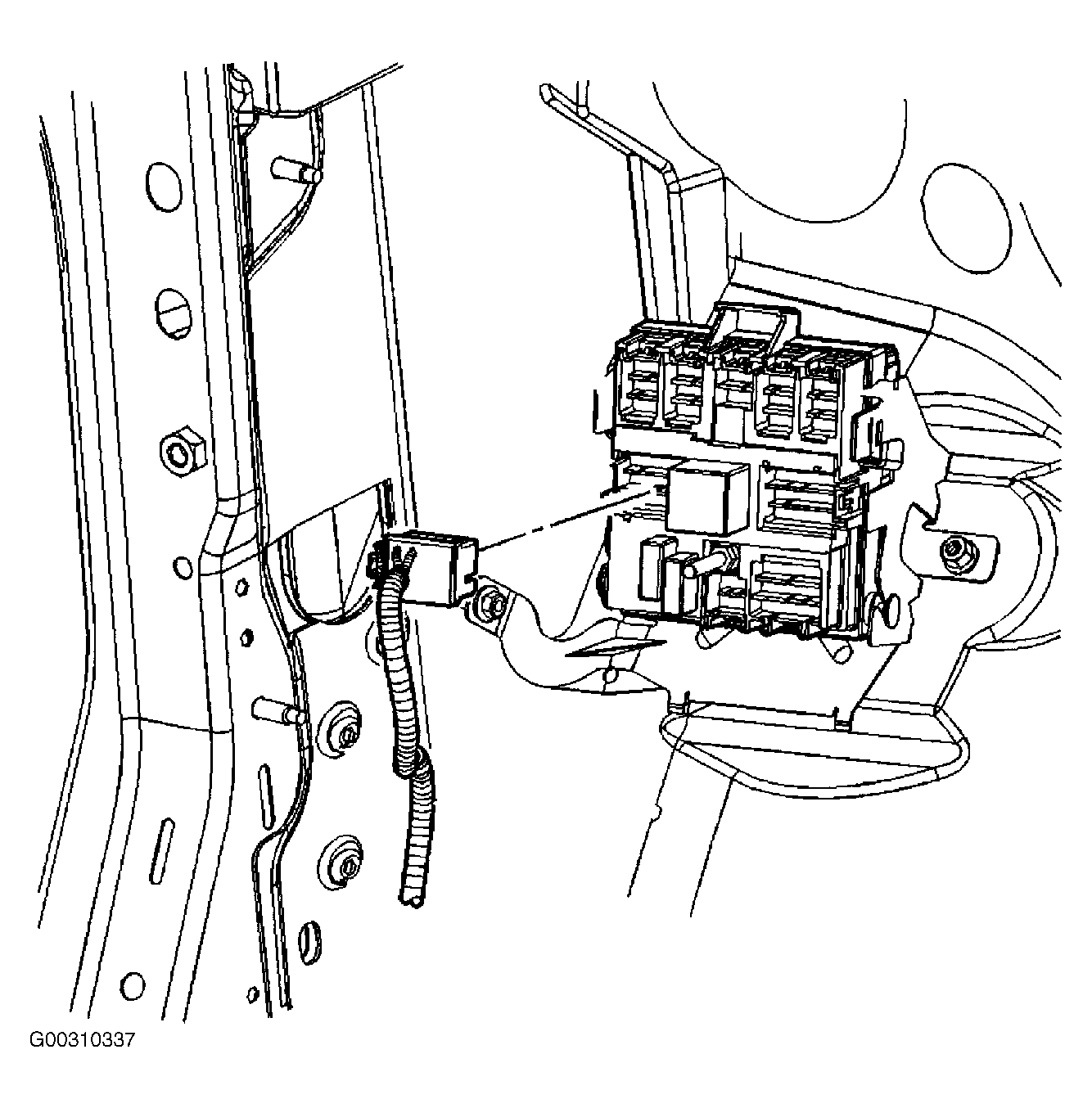

Fig 1: Locating Instrument Panel Relay Block
Courtesy of GENERAL MOTORS CORP.

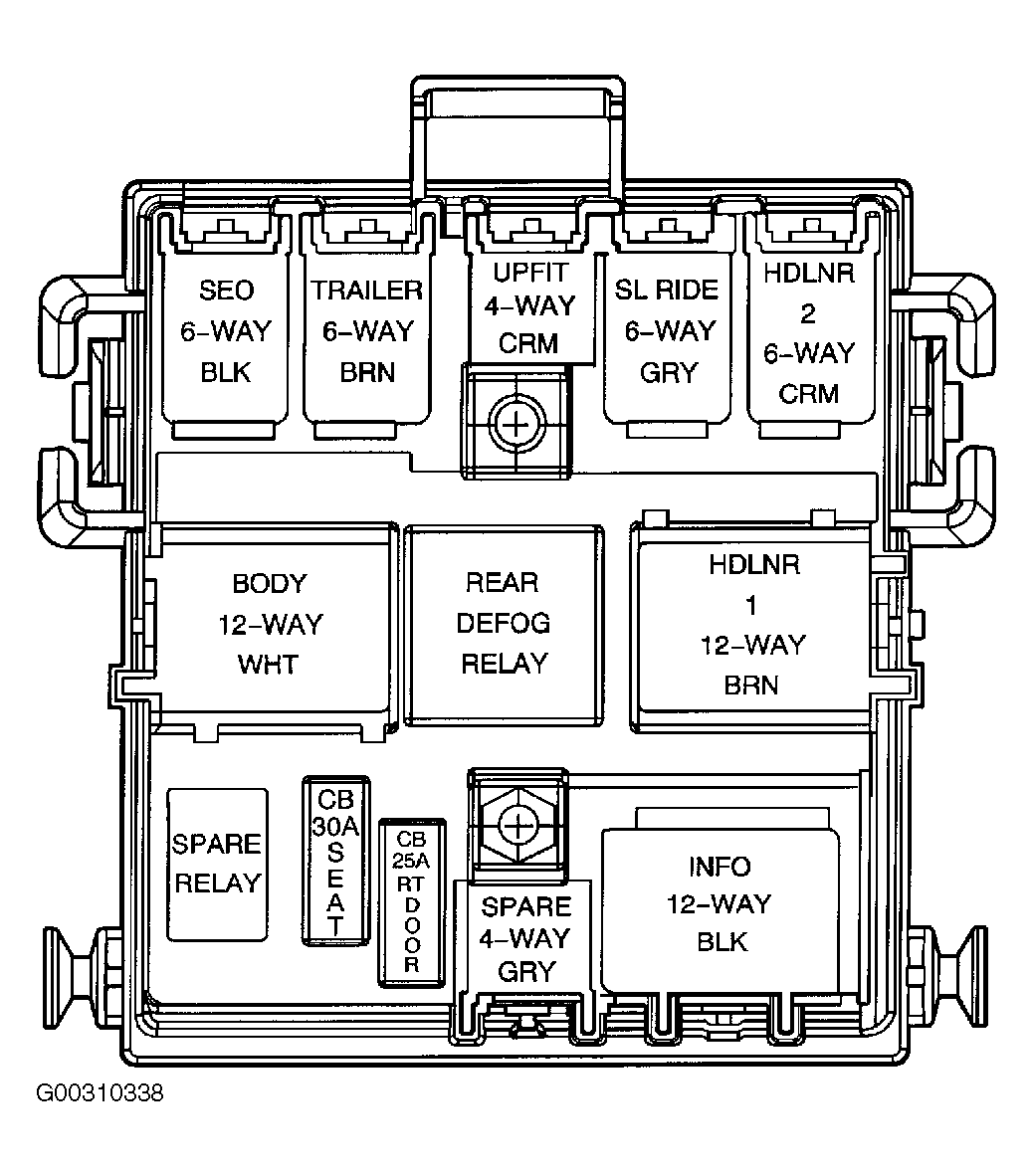

Fig 2: Identifying Instrument Panel Relay Block Components
Courtesy of GENERAL MOTORS CORP.

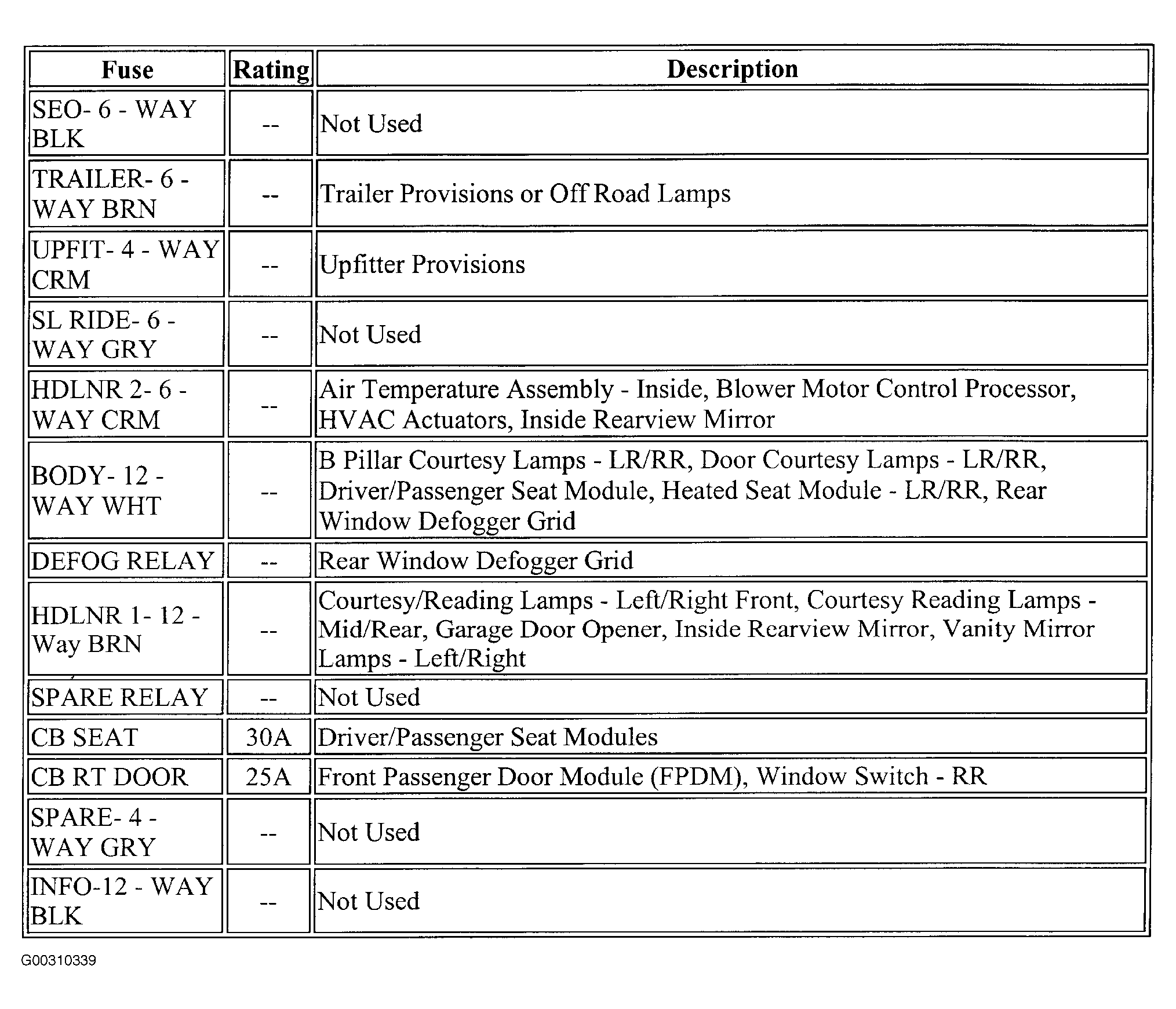

Fig 3: Instrument Panel Relay Block Legend
Courtesy of GENERAL MOTORS CORP.
