Installation Procedure

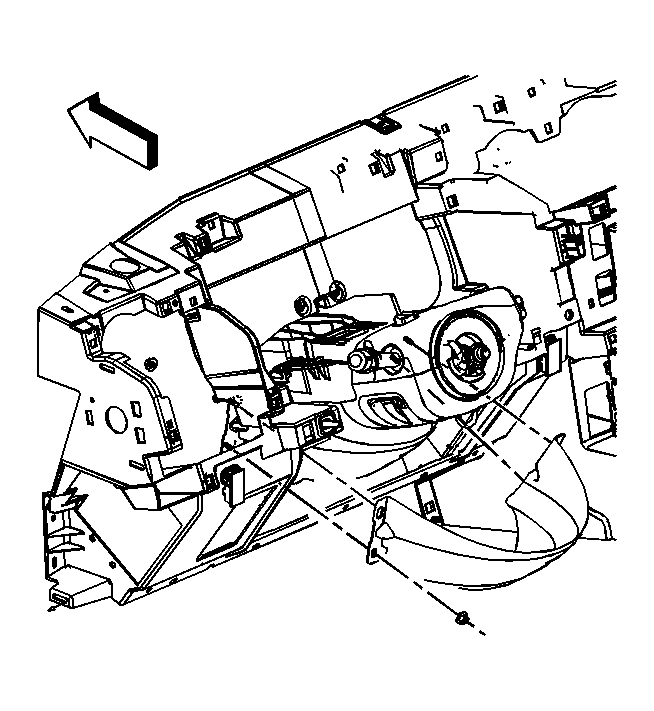

Fig 1: Steering Column Bracket

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Align and fasten the nuts that hold the knee bolster deflector.
Tighten: Tighten the nuts to 2 N.m (18 lb in).
Fasten the screws/bolts that hold the knee bolster trim panel to the I/P. Refer to Trim Panel Replacement - Knee Bolster .
Align and move forward center console in place and fasten to the center console bracket. Refer to Console Replacement .
